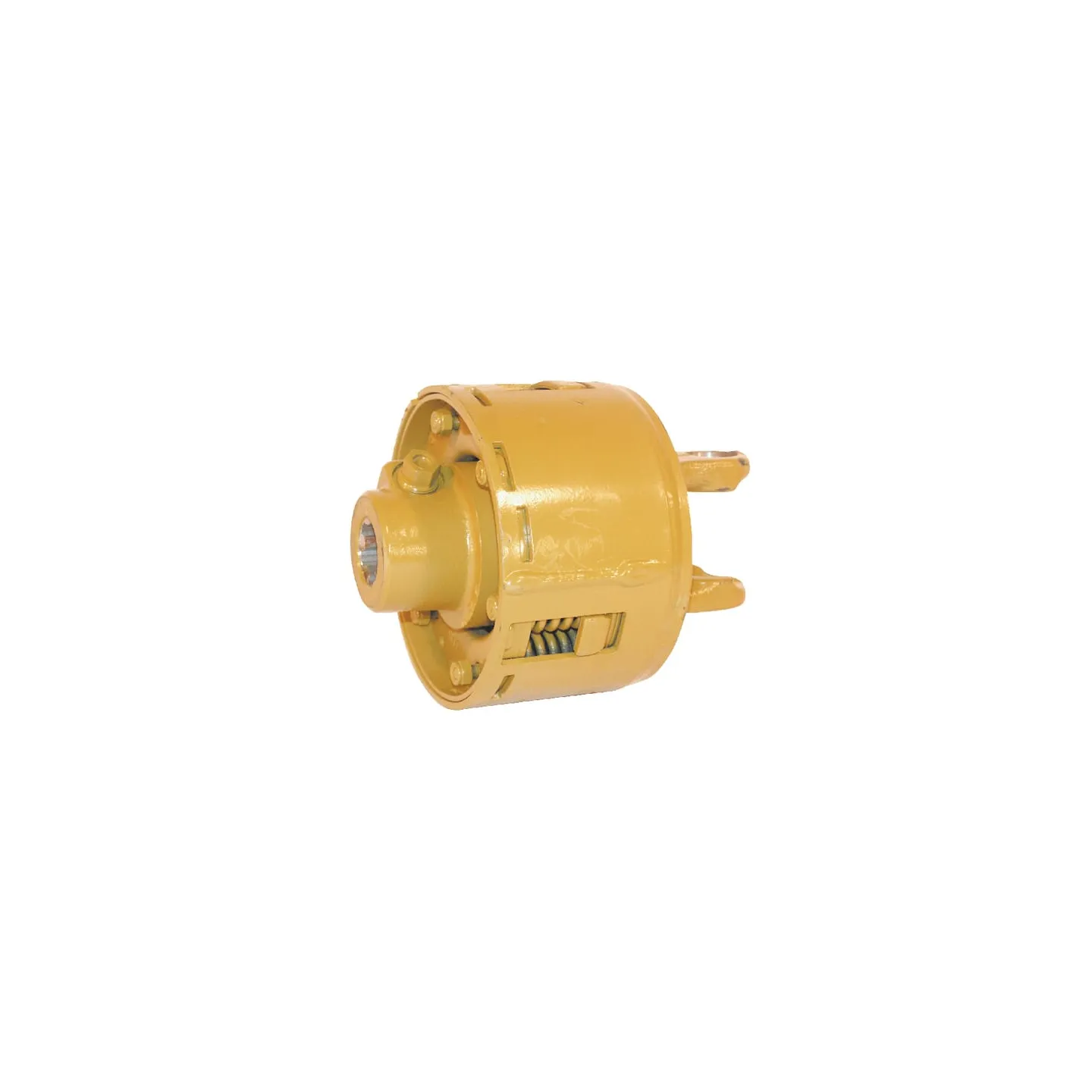

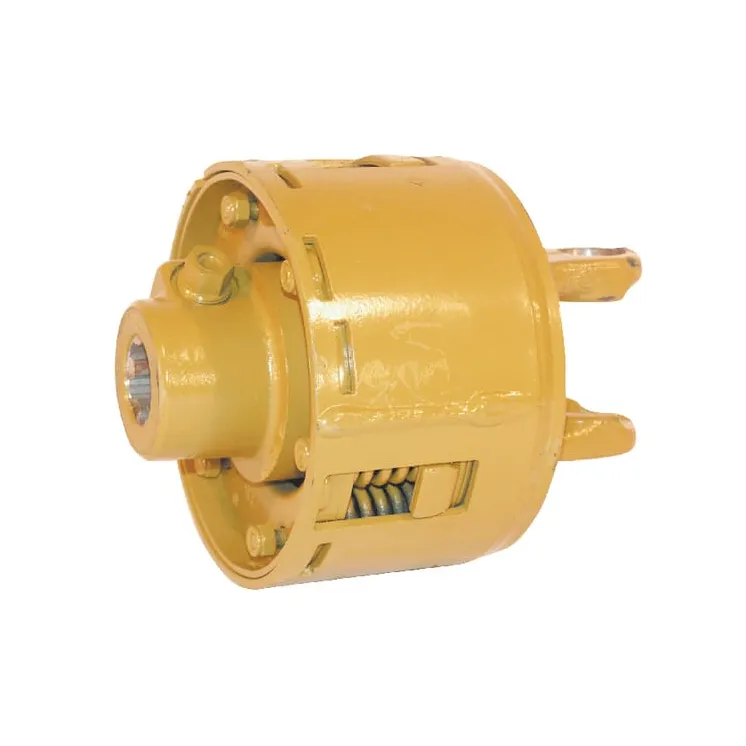

Berzes sajūgs K96/4/W2500 5614151210

Name: Berzes sajūgs K96/4/W2500 5614151210
Brand: Walterscheid
SKU: 5614151210
Price: 1119.29 EUR
Availability: InStock

Apmaksas iespējas

1 119,29 €

AR PVN

4-5 Darba dienas

Berzes sajūgs K96/4/W2500 5614151210 Walterscheid

IR NOLIKTAVĀ

ID: 66704

Apraksts

Part number	5614151210
EAN	8435194181907
Unit	Each
Long description	Friction clutches with spring pack K96 / 4 cpl. 2400, 2500
Details	No interruption of power transmission Absorb peak loads for a short time Max. torque adjustable via circlip
Application range	Mowers Rotary harrows Pick-up
Properties	Independent of direction of rotation Power transmission via friction discs Adjustable Suitable as a starting clutch
Technical info	Observe maintenance instructions
Benefits	Torque retention Smooth transition Wide range of applications
Clutch type code	K96/4
Connection locking type	Clamp cone
Outside connection diameter	1-3/4 Inch 1.75 Inch
Connection number of splines/grooves	6
Shaft size code	W2500
Max. rotation speed	1000 r/min
Max static torque	2100 N·m
Cross cap diameter	36 mm
Cross length	100 mm
DOutside diameter	170 mm
LClutch part length	90 mm
Original number equivalent	1101743
Suitable for machine/vehicle brand	Glaenzer
