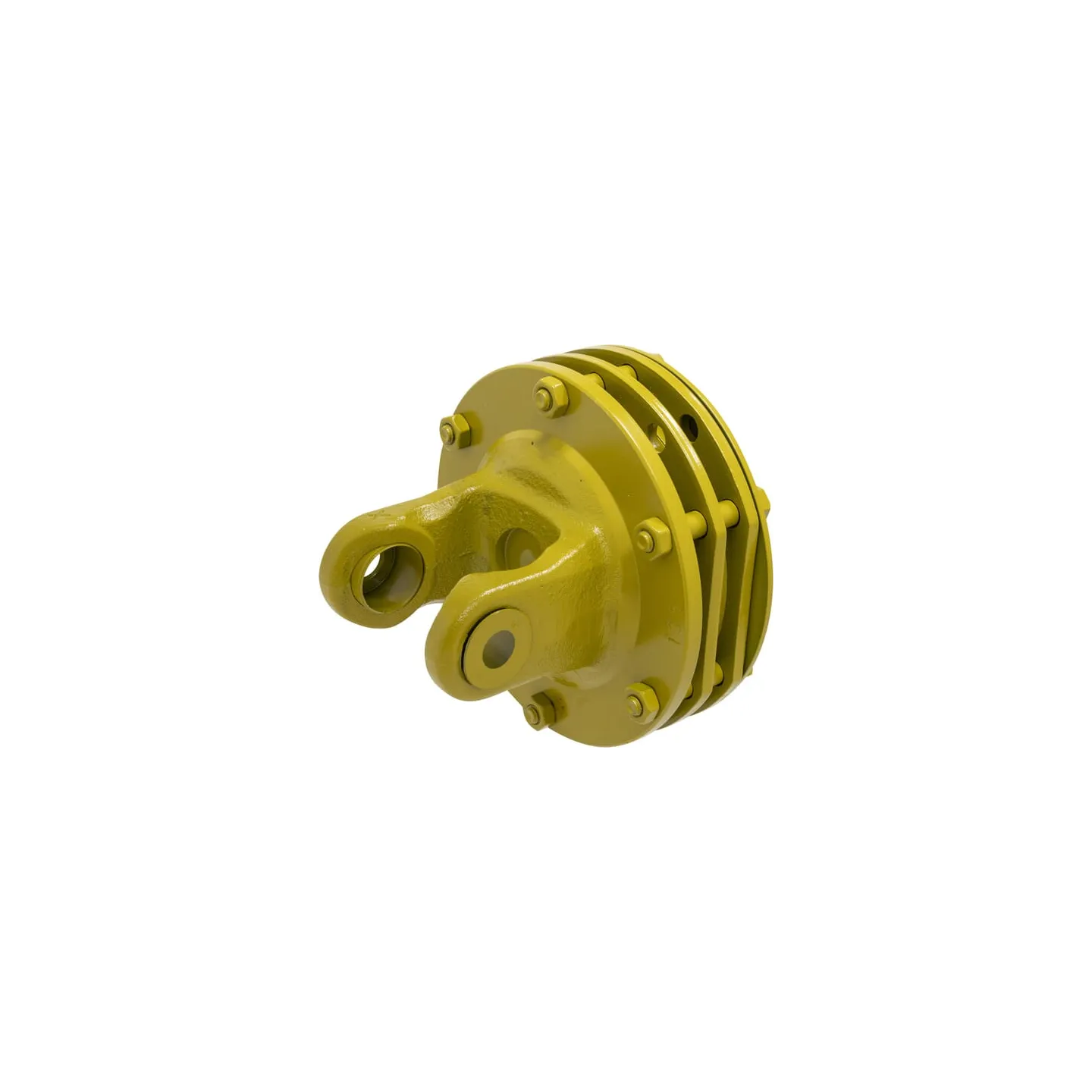

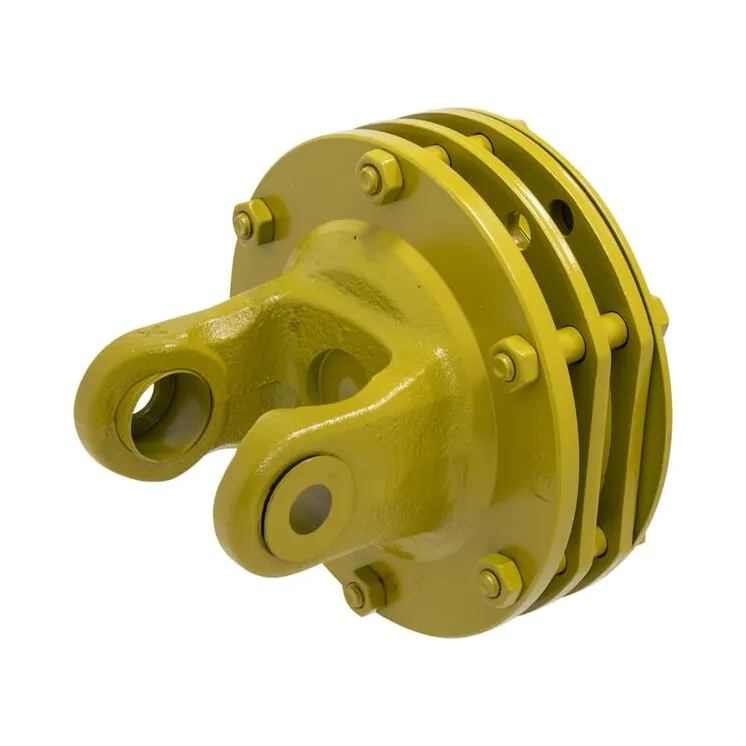

Berzes sajūgs K90/4TF W2500 5610239135 Walterscheid 5610309140

Berzes sajūgs K90/4TF W2500 5610239135 5610309140

Name: Berzes sajūgs K90/4TF W2500 5610239135 5610309140
Brand: Walterscheid
SKU: 5610239135
Price: 908.94 EUR
Availability: InStock

Apmaksas iespējas

908,94 €

AR PVN

4-5 Darba dienas

Berzes sajūgs K90/4TF W2500 5610239135 Walterscheid 5610309140

IR NOLIKTAVĀ

ID: 66708

Apraksts

Part number	5610239135
EAN
Unit	Each
Long description	Friction plate clutches with plate springs K90TF/K90/4TF
Pros	No power interruption Catches peak loads for short periods of time Maintains torque Smooth running
Product details	Independent rotation direction Power transmission via skid plates Adjustable Suitable as starting torque Mowers Power harrows Pick-up
Clutch type code	K90/4
Connection locking type	Clamp bolt (interfering)
Outside connection diameter	1-3/4 Inch 1.75 Inch
Connection number of splines/grooves	20
Shaft size code	W2500 P500
Max. rotation speed	1000 r/min
Max static torque	1400 N·m
Cross cap diameter	36 mm
Cross length	100 mm
Outside diameter	190 mm
Original number equivalent	1342377
Suitable for machine/vehicle brand	n/a
