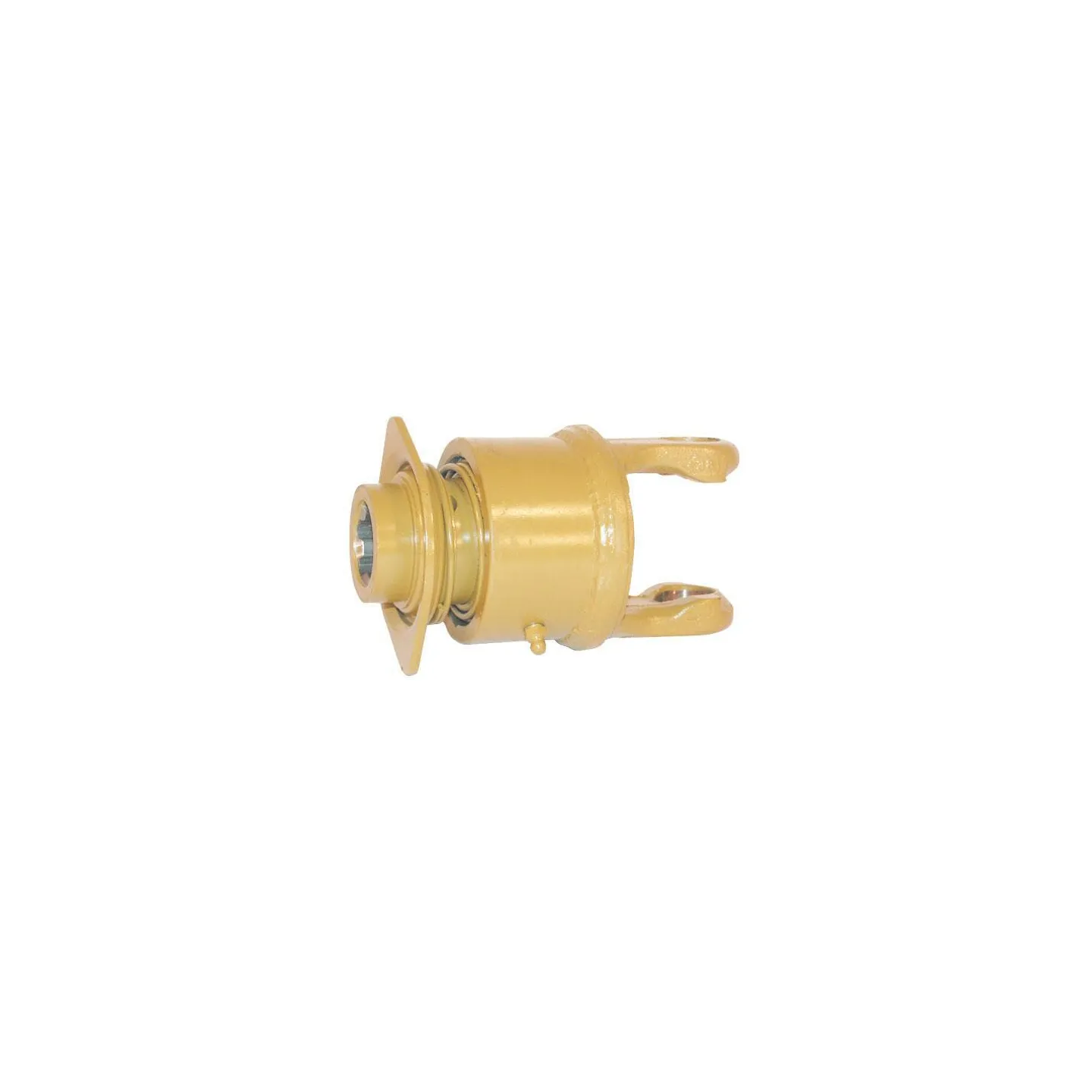

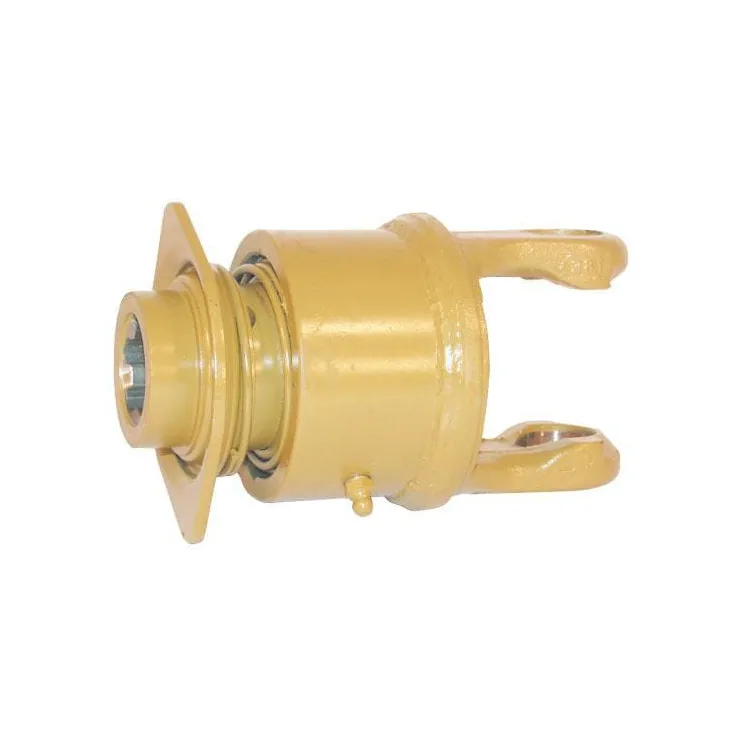

Darbības sajūgs W2400 F5/1 13/4 5616540

Name: Darbības sajūgs W2400 F5/1 13/4 5616540
Brand: Walterscheid
SKU: 5616540
Price: 503.34 EUR
Availability: InStock

Apmaksas iespējas

503,34 €

AR PVN

4-5 Darba dienas

Darbības sajūgs W2400 F5/1 13/4 5616540 Walterscheid

IR NOLIKTAVĀ

ID: 66727

Apraksts

Part number	5616540
EAN	8435194027809
Unit	Each
Long description	Key-type overrunning clutches F5 / 1 right cpl. 2100, 2200, 2300, 2400, 2500
Details	Protection for subsequent mass
Pros	Easy coupling when PTO-shaft is braked
Product details	No overload protection Protection for subsequent mass Regardless of direction of rotation Ratcheting serves as warning PTO shaft on rear of tractor (right freewheeling clutch)
Application range	Mowers Hay guns PTO shaft on rear of tractor (right freewheeling clutch)
Properties	Depends on the direction of rotation The rattling noise acts as a warning
Technical info	No overload protection
Benefits	Easy coupling when pto shaft is braked
Clutch type code	F5/1R
Outside connection diameter	44.45 mm
Outside connection diameter	1-3/4 Inch
Connection number of splines/grooves	6
Connection locking type	Clamp bridge
Shaft size code	W2400 P400
Max. rotation speed	1000 r/min
LClutch part length	50 mm
Original number equivalent	1367687
