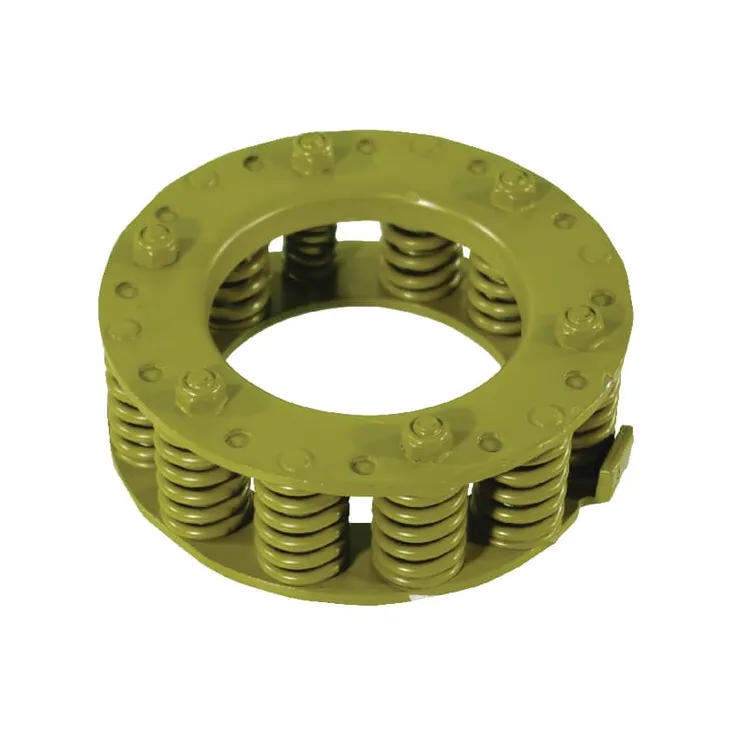

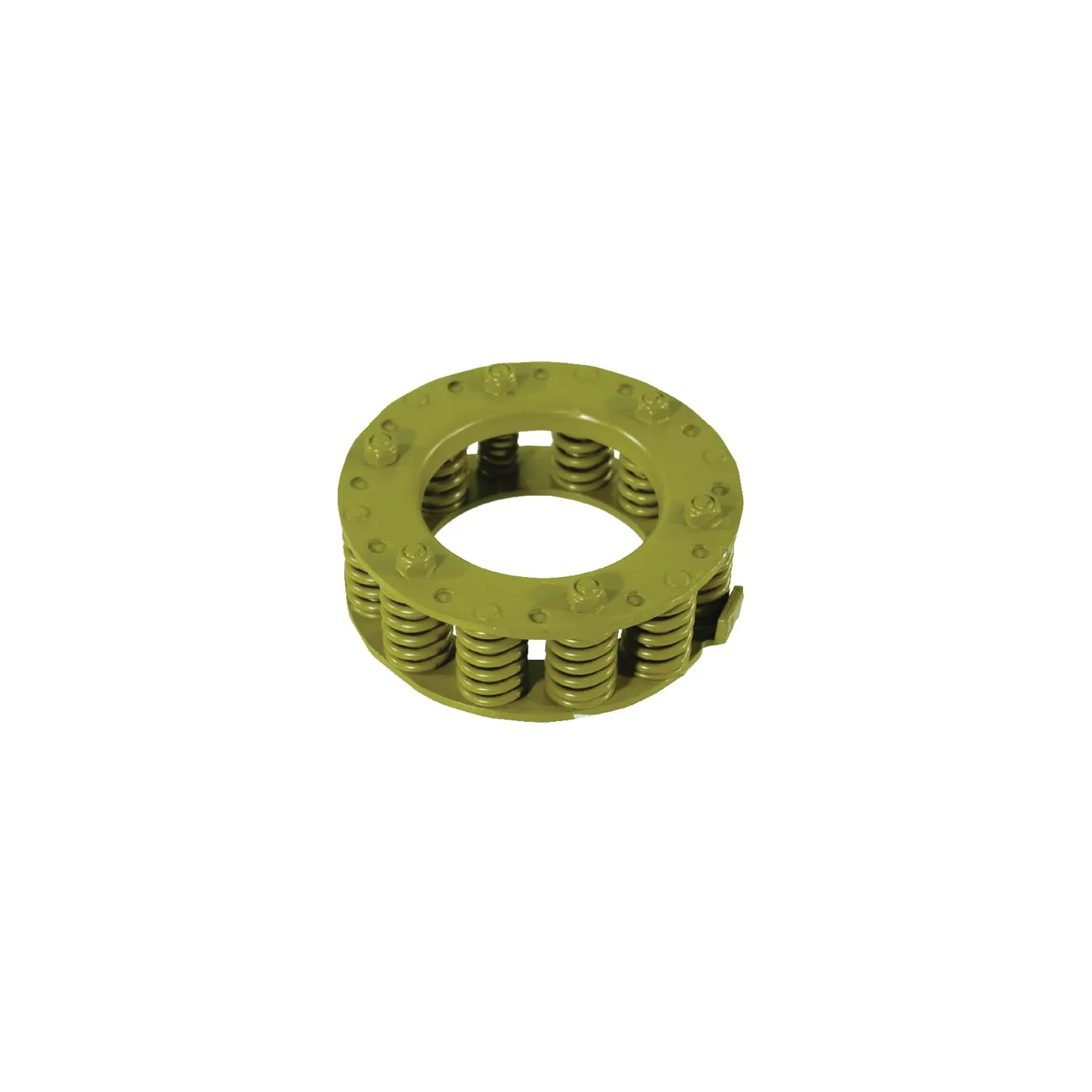

Atsperu komplekts K96 105/210 daNm 563501105210

Name: Atsperu komplekts K96 105/210 daNm 563501105210
Brand: Walterscheid
SKU: 563501105210
Price: 275.81 EUR
Availability: InStock

Apmaksas iespējas

275,81 €

AR PVN

4-5 Darba dienas

Atsperu komplekts K96 105/210 daNm 563501105210 Walterscheid

IR NOLIKTAVĀ

ID: 66728

Apraksts

Part number	563501105210
EAN	8435194028561
Unit	Each
Properties	The circlip has 4 different assembly positions, each with a different maximum torque Position 1 = circlip at minimum in state 1 Position 2 = circlip at maximum in state 1 Position 3 = circlip at minimum in state 2 Position 4 = circlip at maximum in state 2
Position 1 torque for K96 clutch	90 daNm
Position 1 torque for K96/4 clutch	180 daNm
Position 2 torque for K96 clutch	105 daNm
Position 2 torque for K96/4 clutch	210 daNm
Position 3 torque for K96 clutch	118 daNm
Position 3 torque for K96/4 clutch	235 daNm
Position 4 torque for K96 clutch	130 daNm
Position 4 torque for K96/4 clutch	260 daNm
Input torque	105 daNm 210 daNm
Original number equivalent	1377672
