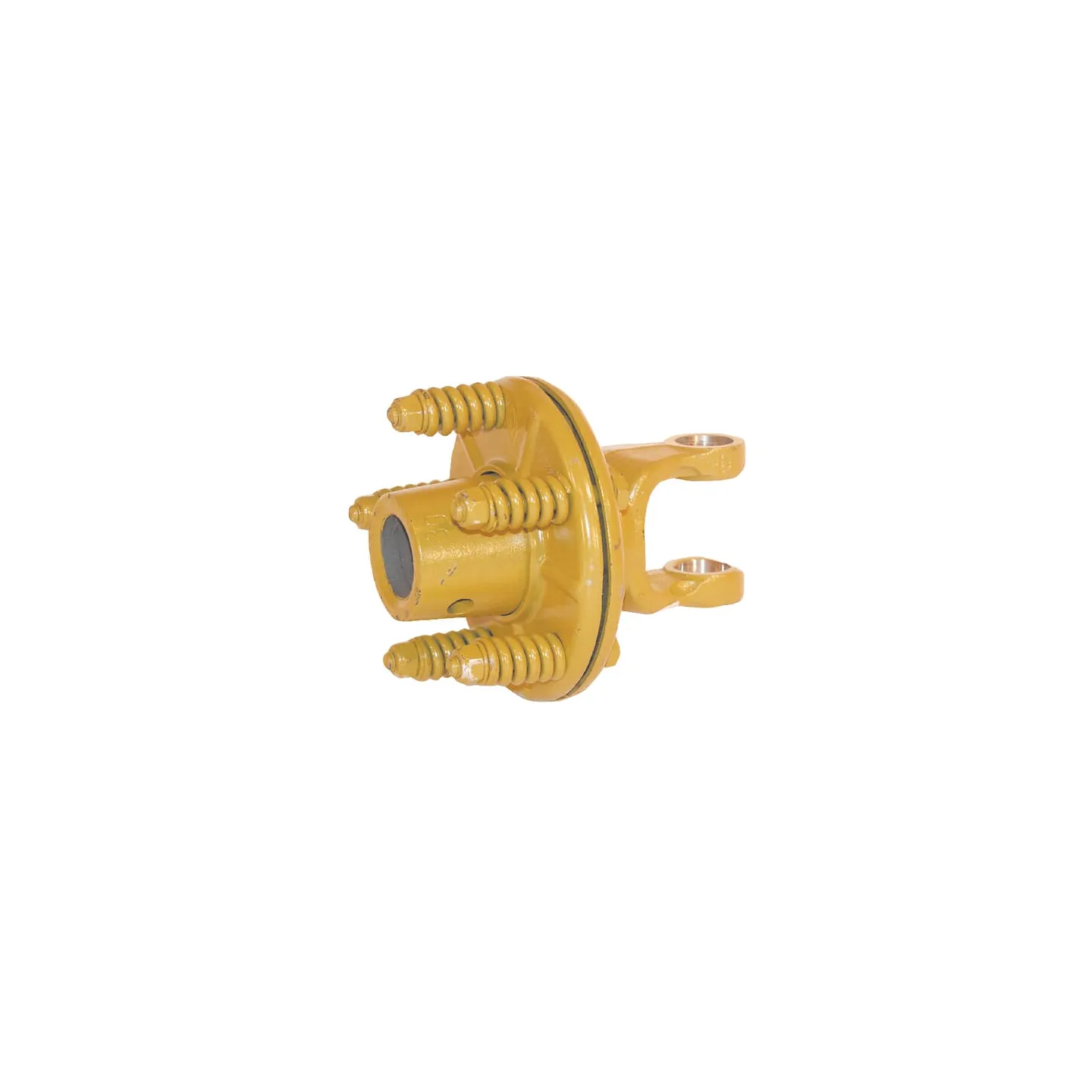

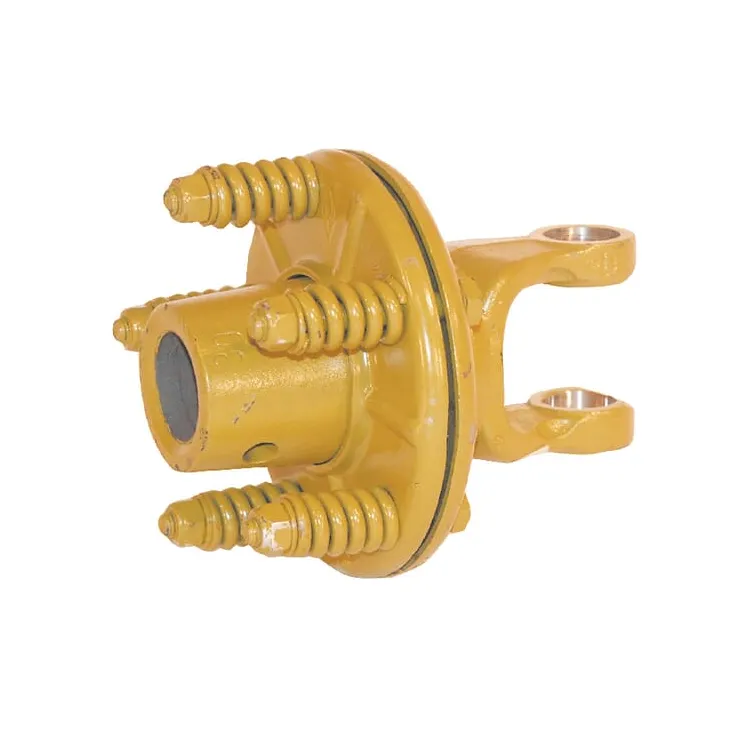

K94/1 Berzes sajūgs 561001940

Name: K94/1 Berzes sajūgs 561001940
Brand: Walterscheid
SKU: 561001940
Price: 350.32 EUR
Availability: BackOrder

Apmaksas iespējas

350,32 €

AR PVN

Pēc pieprasījuma

K94/1 Berzes sajūgs 561001940 Walterscheid

Uz pasūtījumu

ID: 66741

Apraksts

Part number	561001940
EAN	8435194174077
Unit	Each
Long description	Friction clutches with compression springs K94 / 1 cpl. 2100, 2200
Details	No interruption of power transmission Absorb peak loads for a short time
Pros	Maintains torque Smooth running
Product details	No power interruption Catches peak loads for short periods of time Independent rotation direction Power transmission via skid plates Adjustable Suitable as starting torque Observe maintenance instructions
Application range	Spreaders Mowers Light machinery in combination with tractors with direct-shift PTO shaft couplings
Properties	Independent of direction of rotation Power transmission via friction discs Adjustable Suitable as a starting clutch
Technical info	Observe maintenance instructions
Benefits	Torque retention Smooth transition
Clutch type code	K94/1
Connection locking type	Grub screw
Outside connection diameter	30 mm
Connection diameter tolerance code	H8
Shaft size code	W2100
Max. rotation speed	1000 r/min
Max static torque	400 N·m
Cross cap diameter	22 mm
Cross length	63 mm
Mounting holes circle diameter	30 mm
Outside diameter	120 mm
Original number equivalent	1356994
Suitable for machine/vehicle brand	n/a
