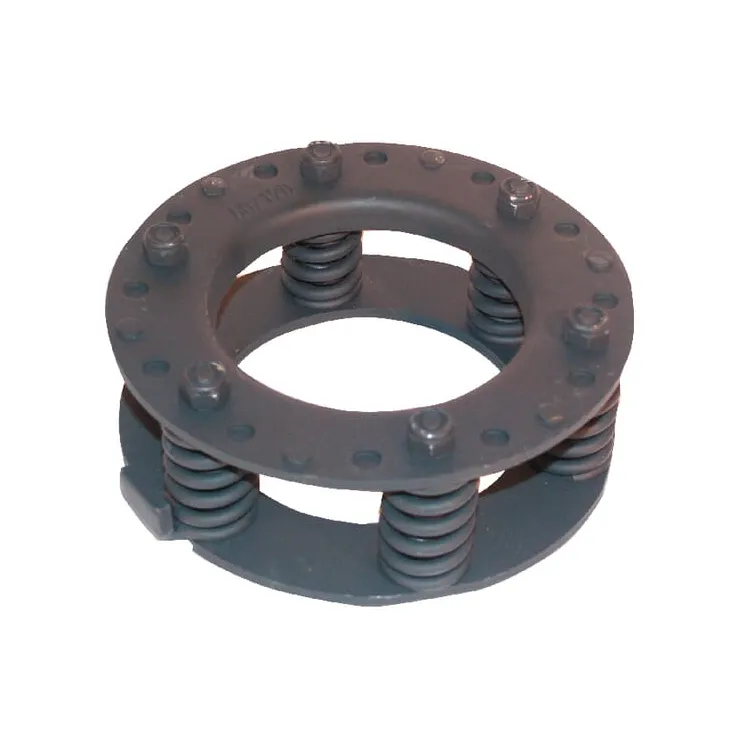

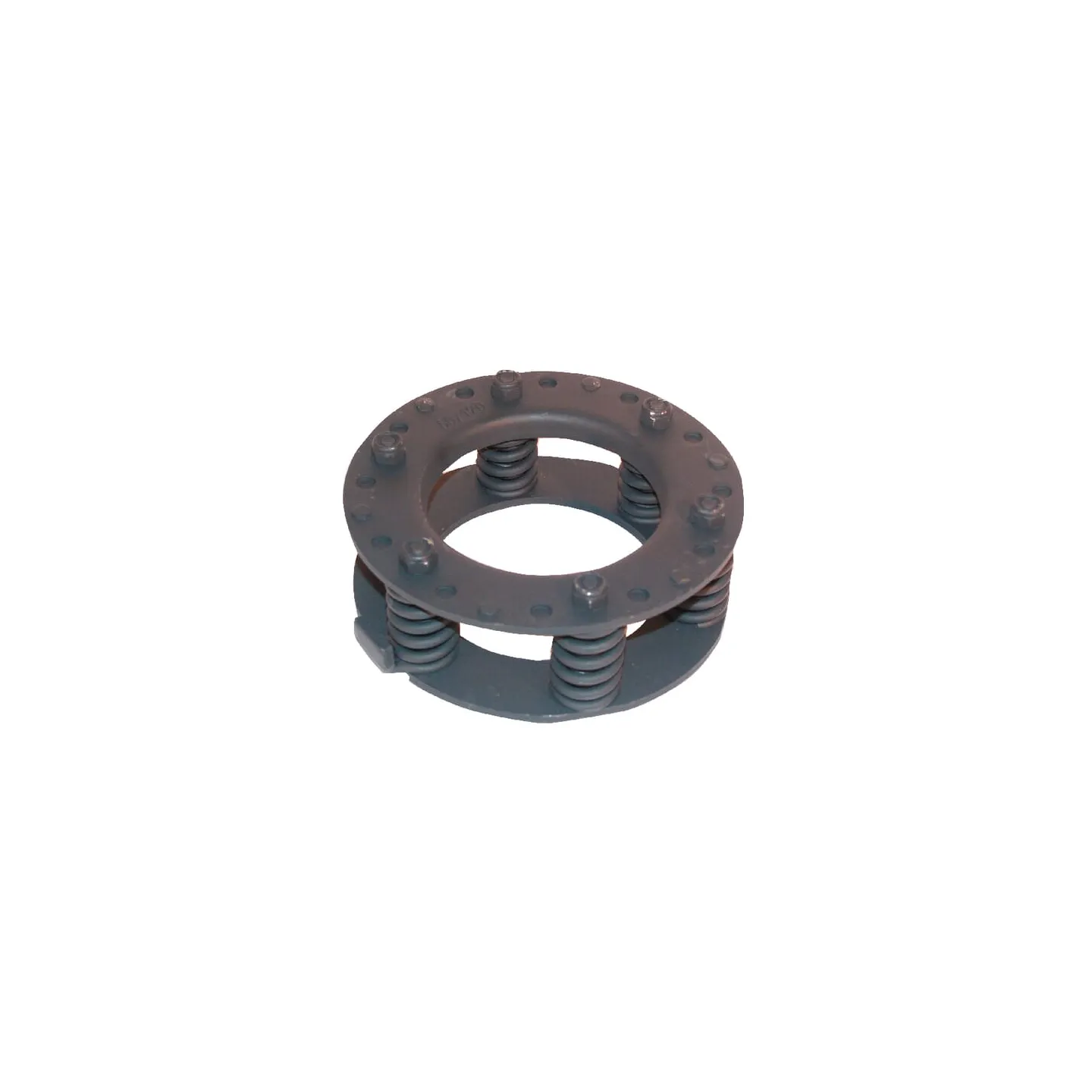

Atsperu komplekts K96 40/80 daNm 5635014080

Name: Atsperu komplekts K96 40/80 daNm 5635014080
Brand: Walterscheid
SKU: 5635014080
Price: 232.27 EUR
Availability: BackOrder

Apmaksas iespējas

232,27 €

AR PVN

Pēc pieprasījuma

Atsperu komplekts K96 40/80 daNm 5635014080 Walterscheid

Uz pasūtījumu

ID: 66752

Apraksts

Part number	5635014080
EAN	8432970155381
Unit	Each
Properties	The circlip has 4 different assembly positions, each with a different maximum torque Position 1 = circlip at minimum in state 1 Position 2 = circlip at maximum in state 1 Position 3 = circlip at minimum in state 2 Position 4 = circlip at maximum in state 2
Position 1 torque for K96 clutch	35 daNm
Position 1 torque for K96/4 clutch	70 daNm
Position 2 torque for K96 clutch	40 daNm
Position 2 torque for K96/4 clutch	80 daNm
Position 3 torque for K96 clutch	45 daNm
Position 3 torque for K96/4 clutch	90 daNm
Position 4 torque for K96 clutch	50 daNm
Position 4 torque for K96/4 clutch	100 daNm
Input torque	40 daNm 80 daNm
Original number equivalent	1171285
