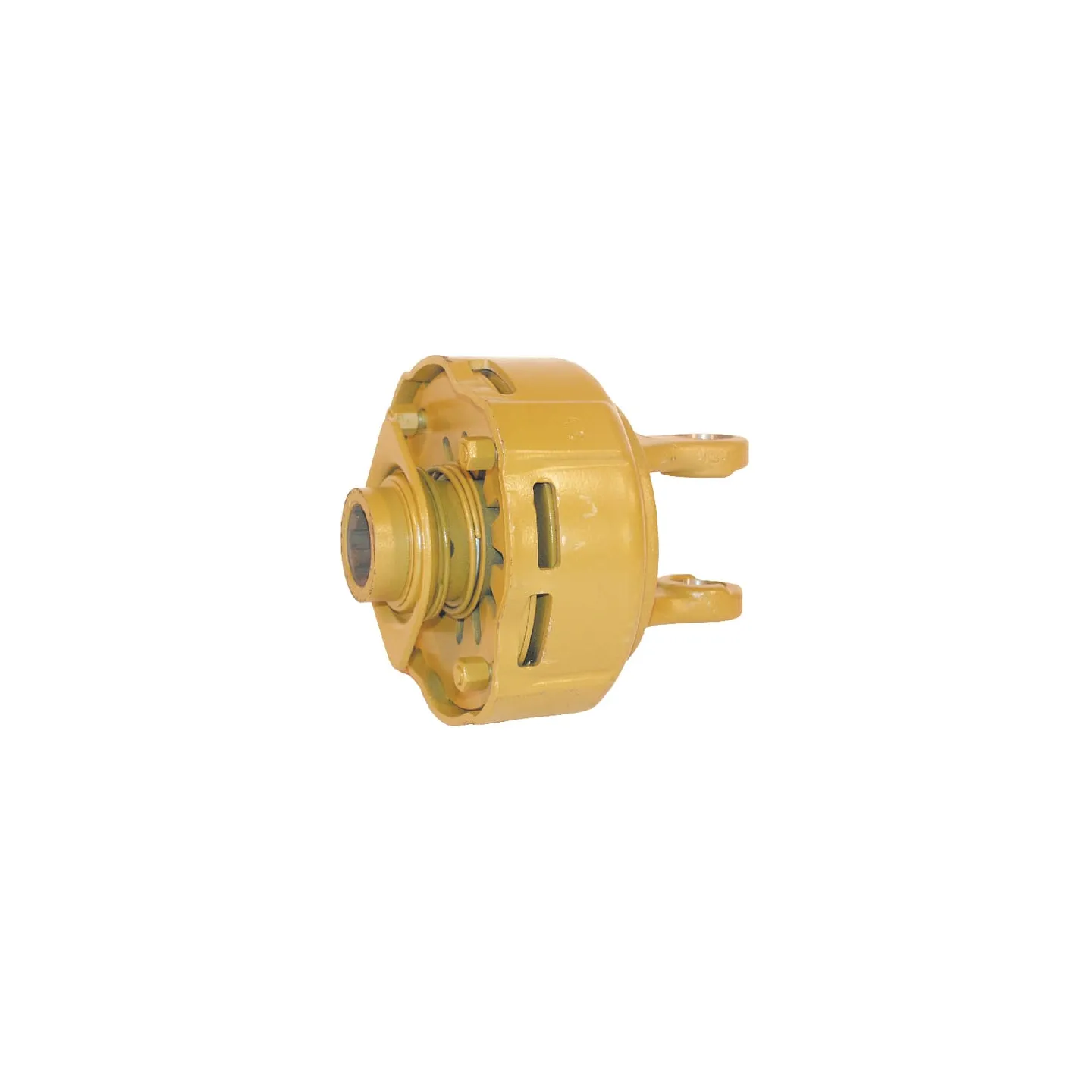

Berzes sajūgs W2500 K92/4 135daNm 5622216135

Name: Berzes sajūgs W2500 K92/4 135daNm 5622216135
Brand: Walterscheid
SKU: 5622216135
Price: 819.34 EUR
Availability: InStock

Apmaksas iespējas

819,34 €

AR PVN

4-5 Darba dienas

Berzes sajūgs W2500 K92/4 135daNm 5622216135 Walterscheid

IR NOLIKTAVĀ

ID: 66762

Apraksts

Part number	5622216135
EAN	8432970125391
Unit	Each
Long description	Friction clutches with Belleville springs K92 / 4 cpl. 2300, 2400, 2500
Details	Compact construction -No interruption of power transmission Absorb peak loads for a short time
Application range	Mowers Rotary harrows Pick-up
Properties	Independent of direction of rotation Power transmission via friction discs Not adjustable Suitable as a starting clutch
Technical info	Observe maintenance instructions
Benefits	Small installation space Torque retention Smooth transition
Clutch type code	K92/4
Connection locking type	Collar lock
Outside connection diameter	1-3/8 Inch 1.375 Inch
Connection number of splines/grooves	6
Shaft size code	W2500
Max. rotation speed	1000 r/min
Max static torque	1350 N·m
Cross cap diameter	36 mm
Cross length	89 mm
Outside diameter	173 mm
LClutch part length	64 mm
Original number equivalent	1331981
Suitable for machine/vehicle brand	n/a
