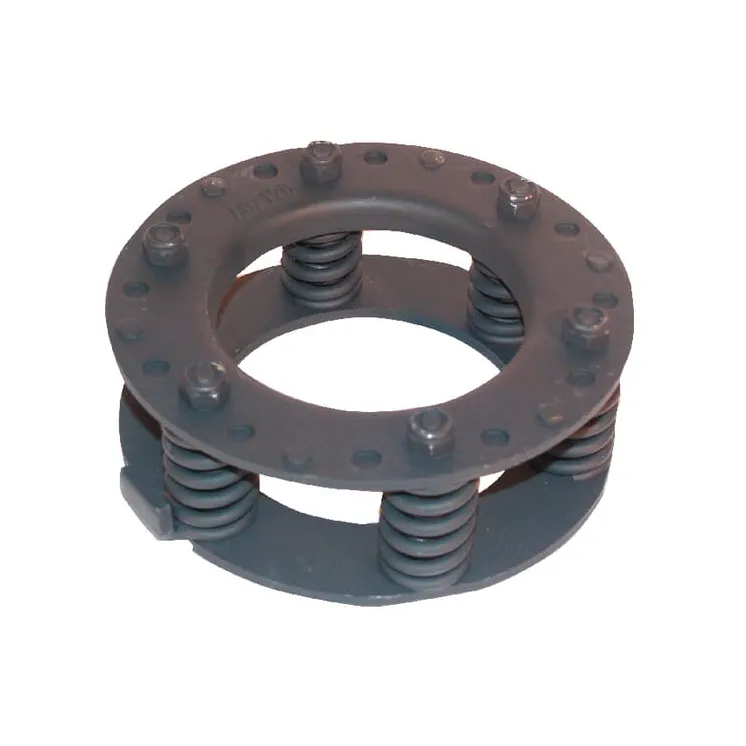

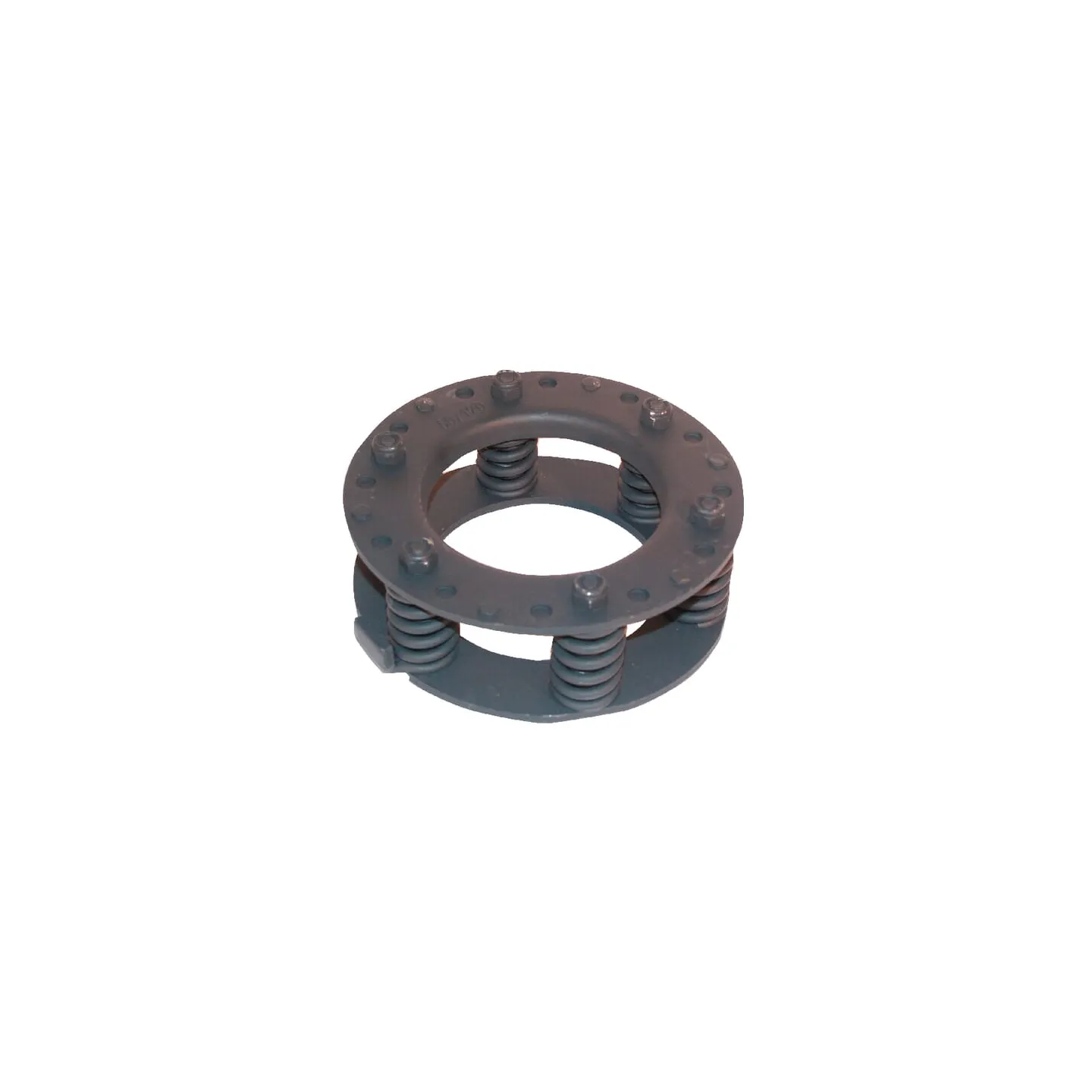

Atsperu komplekts K96 90/180 daNm 56350190180

Name: Atsperu komplekts K96 90/180 daNm 56350190180
Brand: Walterscheid
SKU: 56350190180
Price: 244.13 EUR
Availability: InStock

Apmaksas iespējas

244,13 €

AR PVN

4-5 Darba dienas

Atsperu komplekts K96 90/180 daNm 56350190180 Walterscheid

IR NOLIKTAVĀ

ID: 66765

Apraksts

Part number	56350190180
EAN	8435194028554
Unit	Each
Properties	The circlip has 4 different assembly positions, each with a different maximum torque Position 1 = circlip at minimum in state 1 Position 2 = circlip at maximum in state 1 Position 3 = circlip at minimum in state 2 Position 4 = circlip at maximum in state 2
Position 1 torque for K96 clutch	80 daNm
Position 1 torque for K96/4 clutch	158 daNm
Position 2 torque for K96 clutch	90 daNm
Position 2 torque for K96/4 clutch	180 daNm
Position 3 torque for K96 clutch	103 daNm
Position 3 torque for K96/4 clutch	208 daNm
Position 4 torque for K96 clutch	115 daNm
Position 4 torque for K96/4 clutch	230 daNm
Input torque	90 daNm 180 daNm
Original number equivalent	1377671
