Berzes sajūgs K90/4TF W2500 5610839165 Walterscheid 5610009150

Berzes sajūgs K90/4TF W2500 5610839165 5610009150

Name: Berzes sajūgs K90/4TF W2500 5610839165 5610009150
Brand: Walterscheid
SKU: 5610839165
Price: 822.59 EUR
Availability: InStock

Apmaksas iespējas

822,59 €

AR PVN

4-5 Darba dienas

Berzes sajūgs K90/4TF W2500 5610839165 Walterscheid 5610009150

IR NOLIKTAVĀ

ID: 66767

Apraksts

Part number	5610839165
EAN
Unit	Each

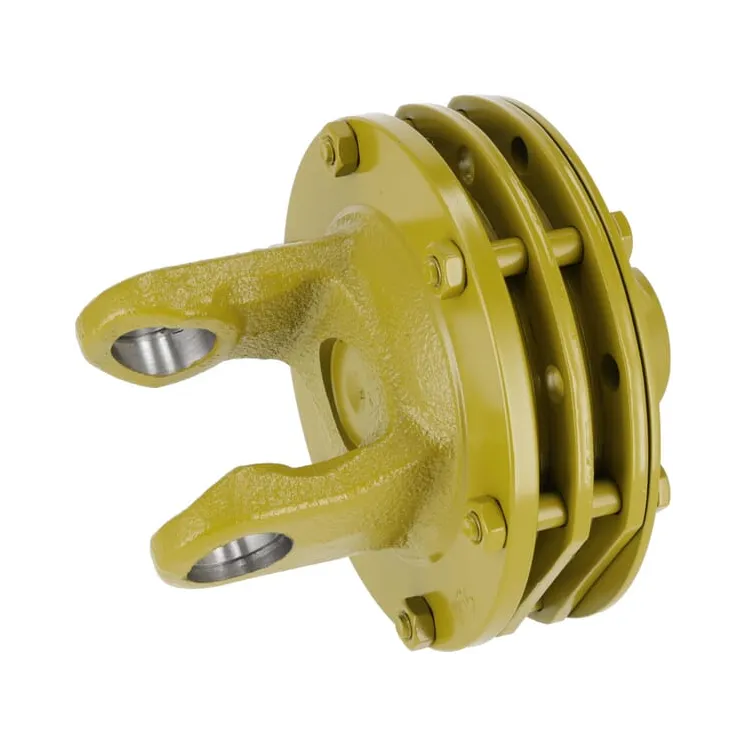

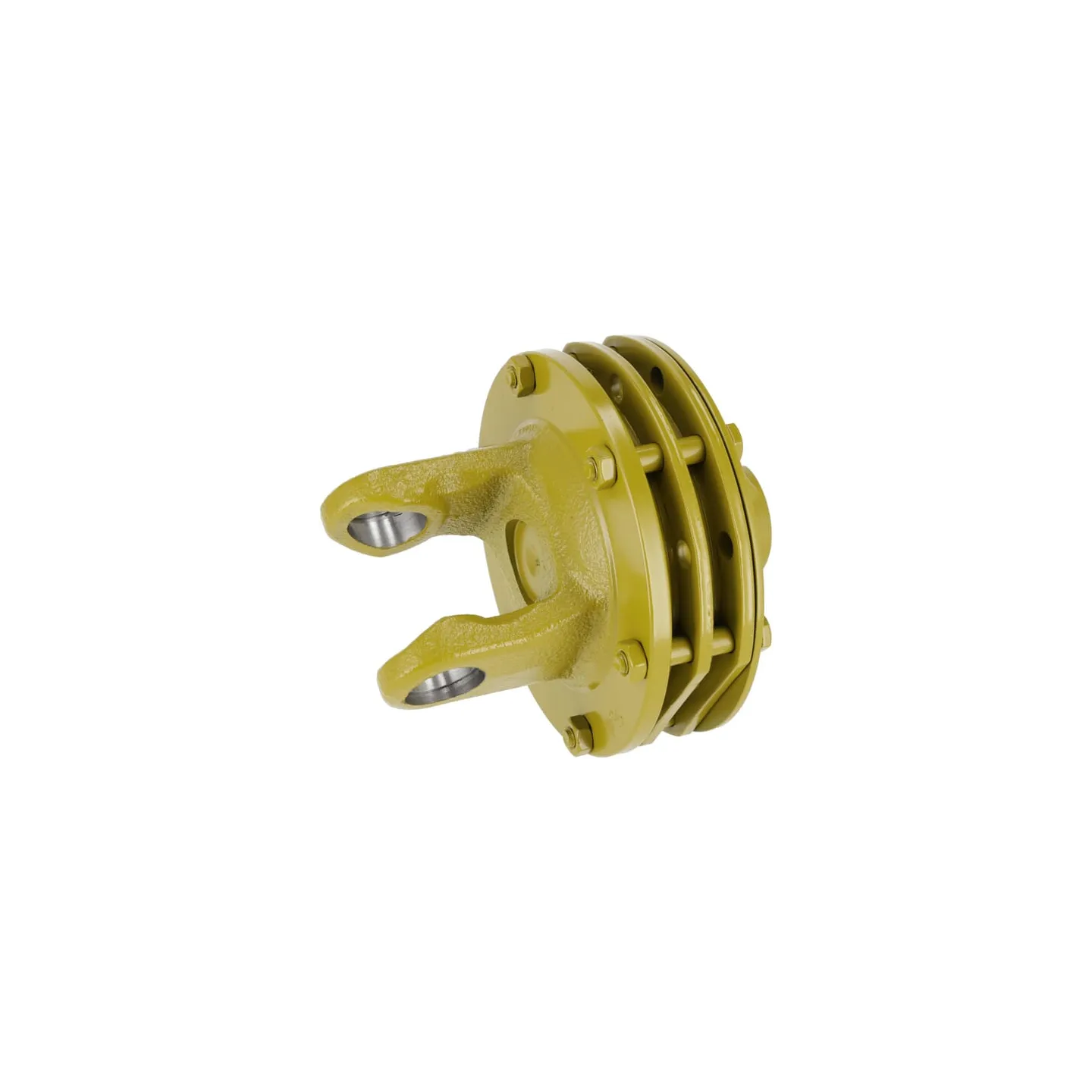

Long description	Friction plate clutches with plate springs K90TF/K90/4TF
Pros	No power interruption Catches peak loads for short periods of time Maintains torque Smooth running
Product details	Independent rotation direction Power transmission via skid plates Adjustable Suitable as starting torque Mowers Power harrows Pick-up
Clutch type code	K90/4
Connection locking type	Clamp bolt (interfering)
Outside connection diameter	1-3/8 Inch 1.375 Inch
Connection number of splines/grooves	6
Shaft size code	W2500 P500
Max. rotation speed	1000 r/min
Max static torque	1650 N·m
Cross cap diameter	36 mm
Cross length	100 mm
Outside diameter	190 mm
Clutch part length	65 mm
Original number equivalent	1333268
Suitable for machine/vehicle brand	n/a
