Berzes sajūgs W2400 K92/4 150daNm 5622116150

Name: Berzes sajūgs W2400 K92/4 150daNm 5622116150
Brand: Walterscheid
SKU: 5622116150
Price: 710.66 EUR
Availability: InStock

Apmaksas iespējas

710,66 €

AR PVN

4-5 Darba dienas

Berzes sajūgs W2400 K92/4 150daNm 5622116150 Walterscheid

IR NOLIKTAVĀ

ID: 66771

Apraksts

Part number	5622116150
EAN	8435194191890
Unit	Each

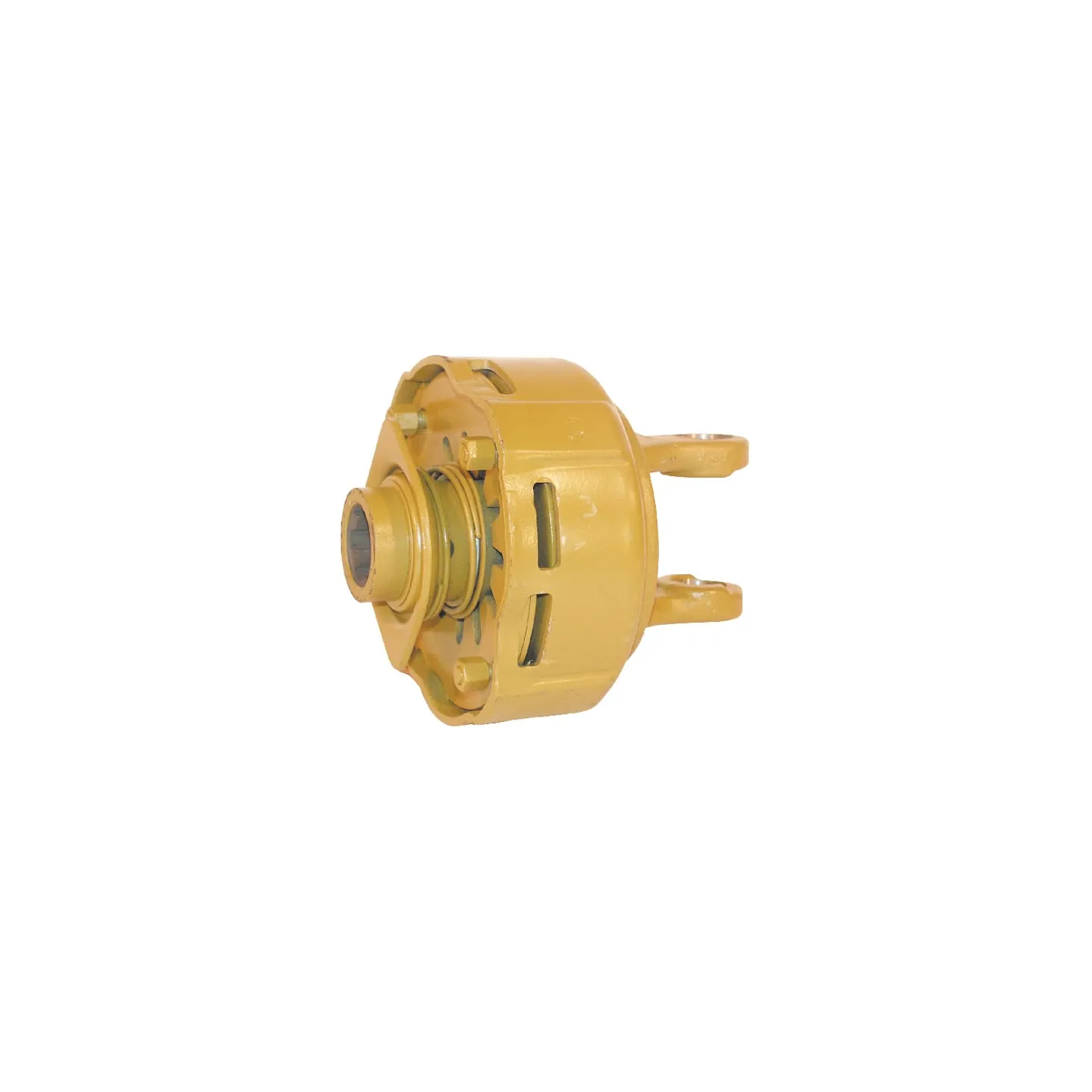

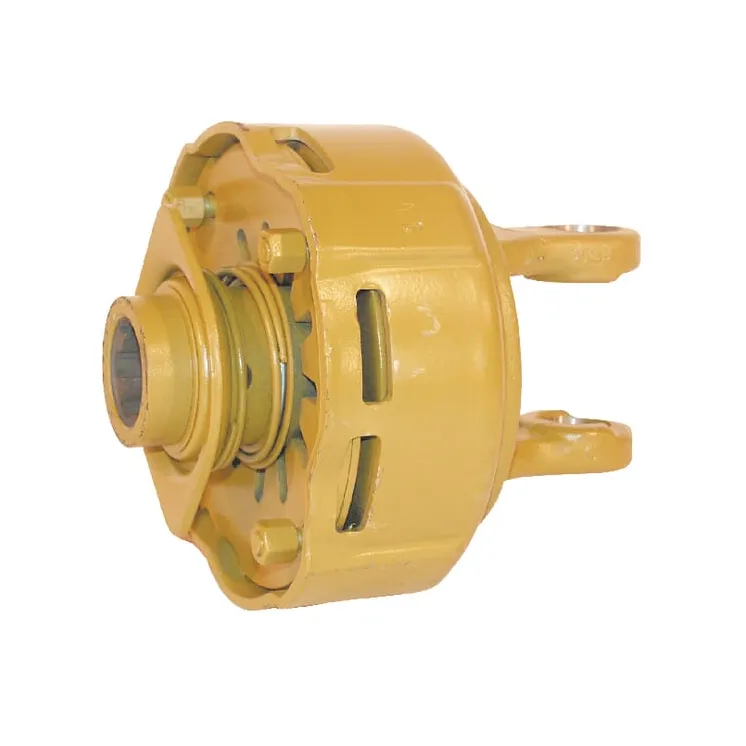

Long description	Friction clutches with Belleville springs K92 / 4 cpl. 2300, 2400, 2500
Details	Compact construction -No interruption of power transmission Absorb peak loads for a short time
Application range	Mowers Rotary harrows Pick-up
Properties	Independent of direction of rotation Power transmission via friction discs Not adjustable Suitable as a starting clutch
Technical info	Observe maintenance instructions
Benefits	Small installation space Torque retention Smooth transition
Clutch type code	K92/4
Connection locking type	Collar lock
Outside connection diameter	1-3/8 Inch 1.375 Inch
Connection number of splines/grooves	6
Shaft size code	W2400
Max. rotation speed	1000 r/min
Max static torque	1500 N·m
Cross cap diameter	32 mm
Cross length	76 mm
Outside diameter	173 mm
LClutch part length	64 mm
Original number equivalent	1351045
Suitable for machine/vehicle brand	Kamaq
