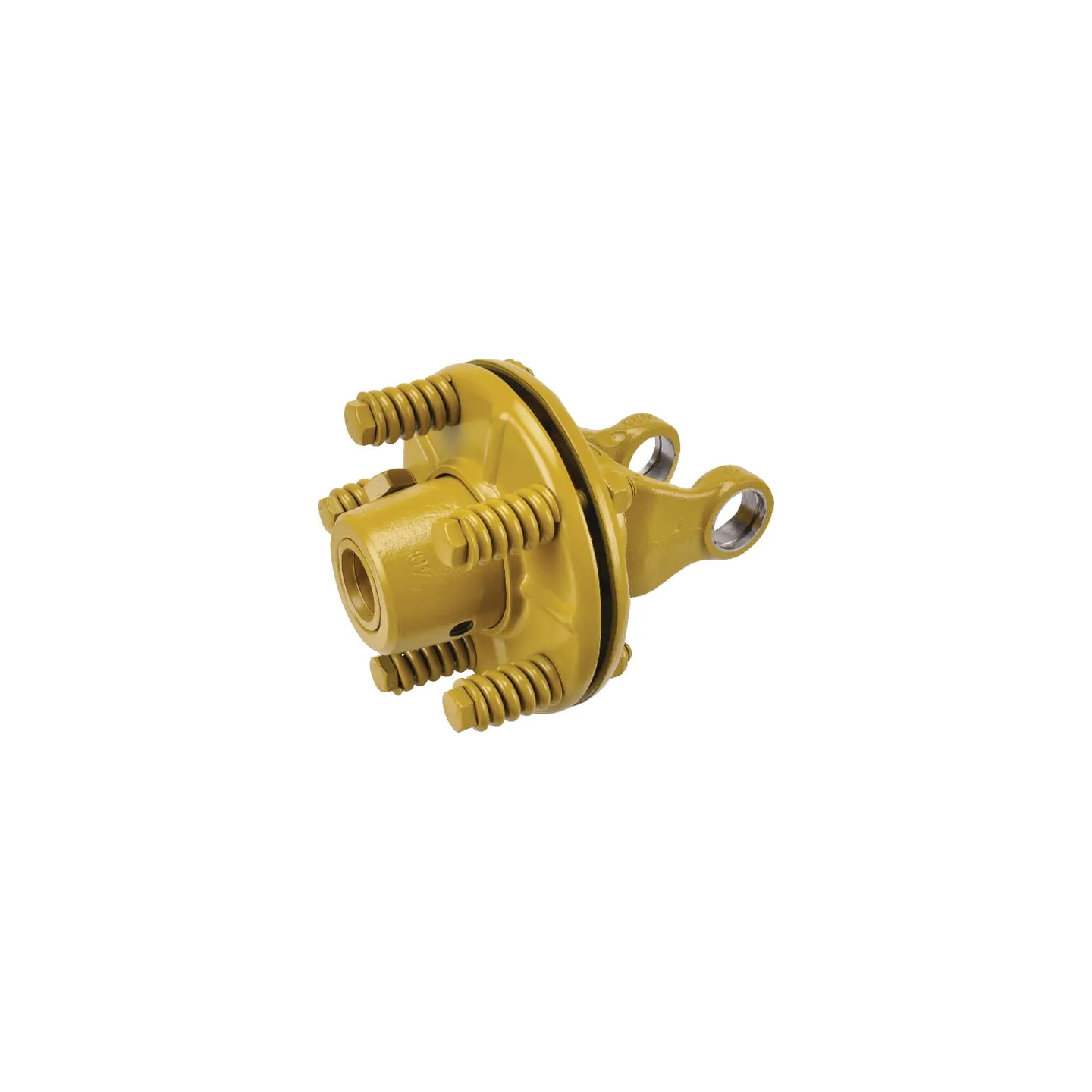

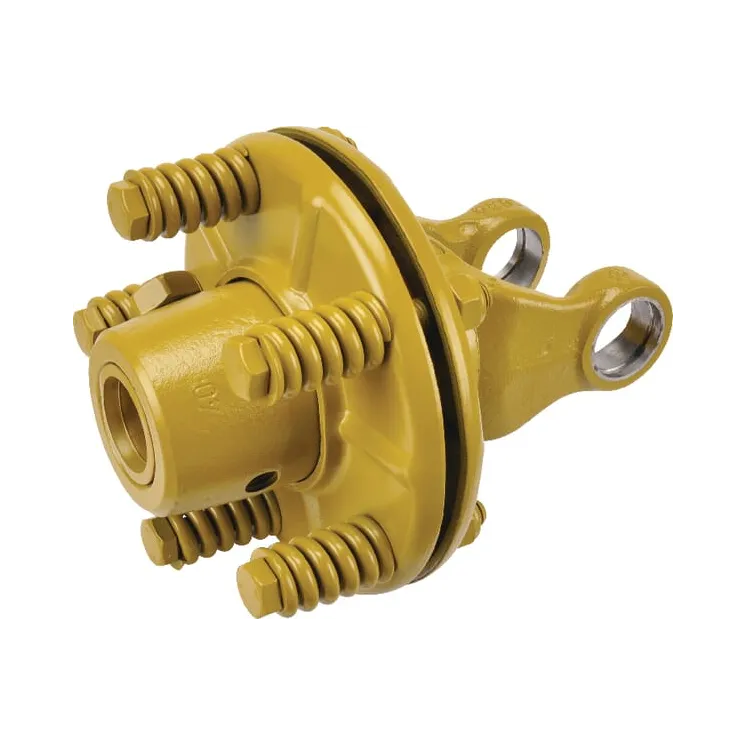

K94/1 Berzes sajūgs 561011940

Name: K94/1 Berzes sajūgs 561011940
Brand: Walterscheid
SKU: 561011940
Price: 375.78 EUR
Availability: InStock

Apmaksas iespējas

375,78 €

AR PVN

4-5 Darba dienas

K94/1 Berzes sajūgs 561011940 Walterscheid

IR NOLIKTAVĀ

ID: 66783

Apraksts

Part number	561011940
EAN	8435194025898
Unit	Each
Long description	Friction clutches with compression springs K94 / 1 cpl. 2100, 2200
Details	No interruption of power transmission Absorb peak loads for a short time
Pros	Maintains torque Smooth running
Product details	No power interruption Catches peak loads for short periods of time Independent rotation direction Power transmission via skid plates Adjustable Suitable as starting torque Observe maintenance instructions
Application range	Spreaders Mowers Light machinery in combination with tractors with direct-shift PTO shaft couplings
Properties	Independent of direction of rotation Power transmission via friction discs Adjustable Suitable as a starting clutch
Technical info	Observe maintenance instructions
Benefits	Torque retention Smooth transition
Clutch type code	K94/1
Connection locking type	Grub screw
Outside connection diameter	1-1/8 Inch 1.125 Inch
Connection number of splines/grooves	6
Shaft size code	W2100
Max. rotation speed	1000 r/min
Max static torque	400 N·m
Cross cap diameter	22 mm
Cross length	63 mm
Outside diameter	120 mm
Original number equivalent	1356995
Suitable for machine/vehicle brand	Matsui Lely
