Berzes sajūgs - K90/4 5610709 5610709140

Name: Berzes sajūgs - K90/4 5610709 5610709140
Brand: Walterscheid
SKU: 5610709
Price: 1328.39 EUR
Availability: BackOrder

Apmaksas iespējas

1 328,39 €

AR PVN

Pēc pieprasījuma

Berzes sajūgs - K90/4 5610709 Walterscheid 5610709140

Uz pasūtījumu

ID: 66786

Apraksts

Part number	5610709
EAN	8432970172906
Unit	Each

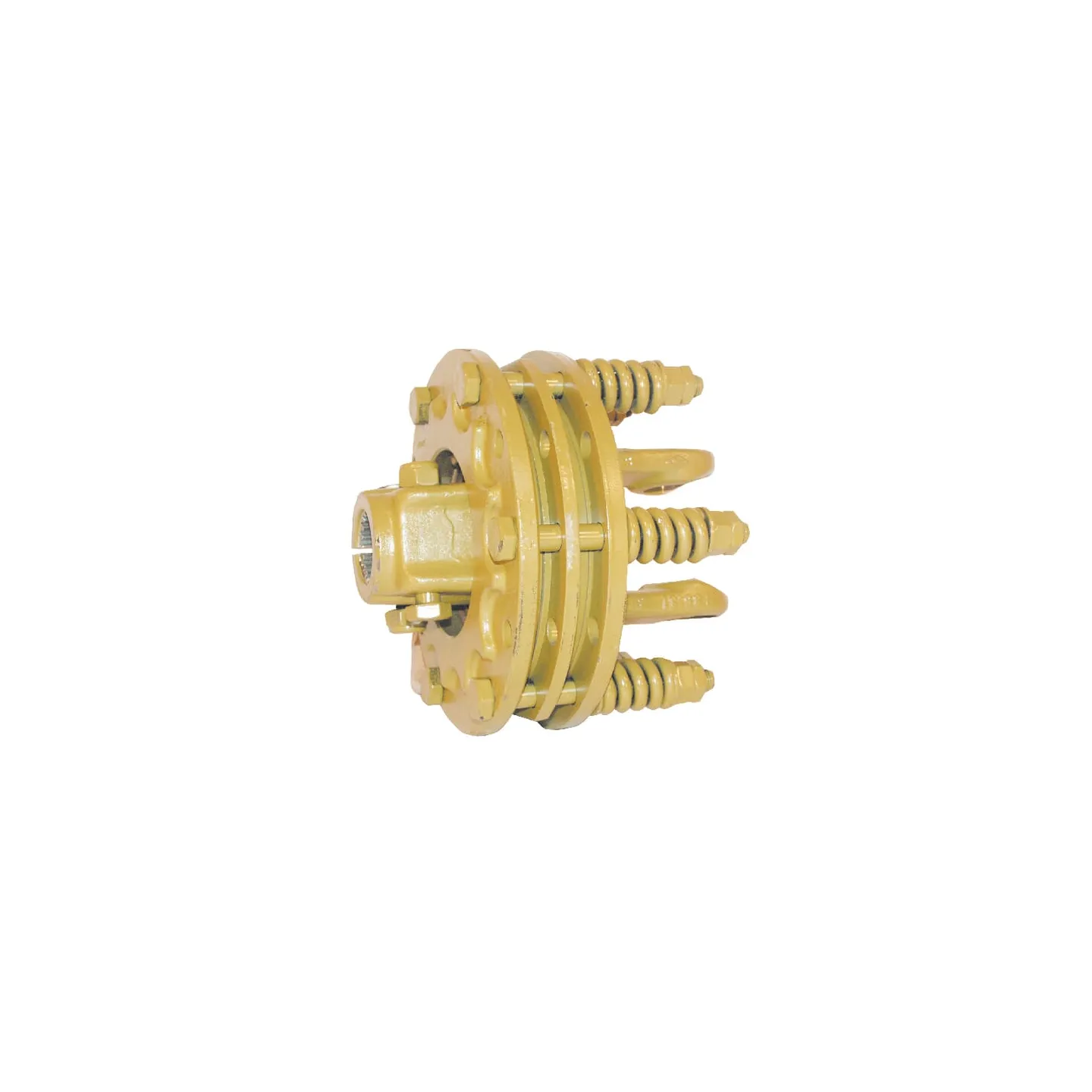

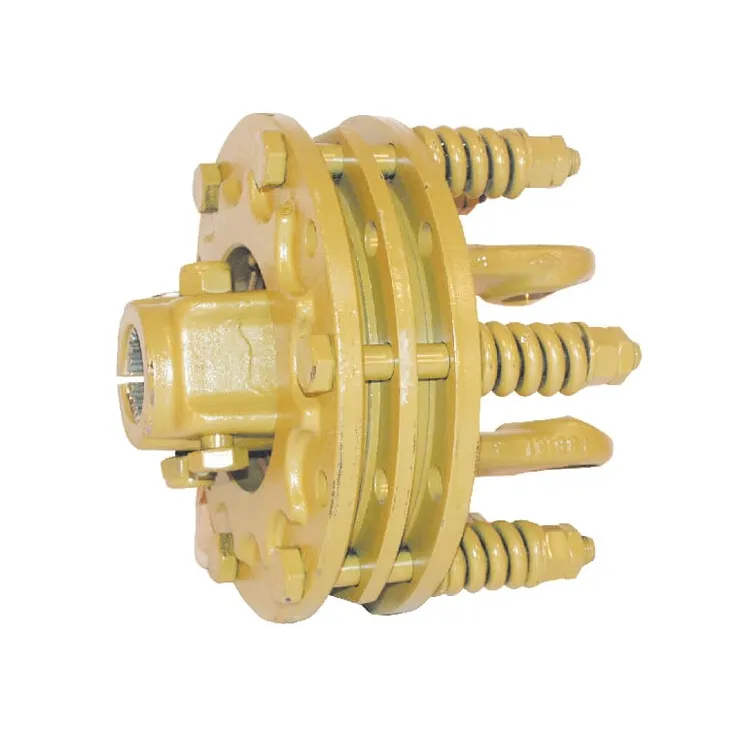

Long description	Friction plate clutches with compression springs K90 / 4 cpl. 2300, 2400, 2500, 2600
Details	No interruption of power transmission Absorb peak loads for a short time
Pros	Maintains torque Smooth running
Product details	No power interruption Catches peak loads for short periods of time Independent rotation direction Power transmission via skid plates Adjustable Suitable as starting torque Observe maintenance instructions
Application range	Mowers Rotary harrows Pick-up
Properties	Independent of direction of rotation Power transmission via friction discs Adjustable Suitable as a starting clutch
Technical info	Observe maintenance instructions
Benefits	Torque retention Smooth transition
Clutch type code	K90/4
Connection locking type	Clamp bolt (interfering)
Outside connection diameter	1-3/4 Inch 1.75 Inch
Connection number of splines/grooves	20
Shaft size code	W2600 P600
Max. rotation speed	1000 r/min
Max static torque	1400 N·m
Cross cap diameter	42 mm
Cross length	120 mm
DØOutside diameter	190 mm
LClutch part length	58 mm
Original number equivalent	1333297
Suitable for machine/vehicle brand	n/a
