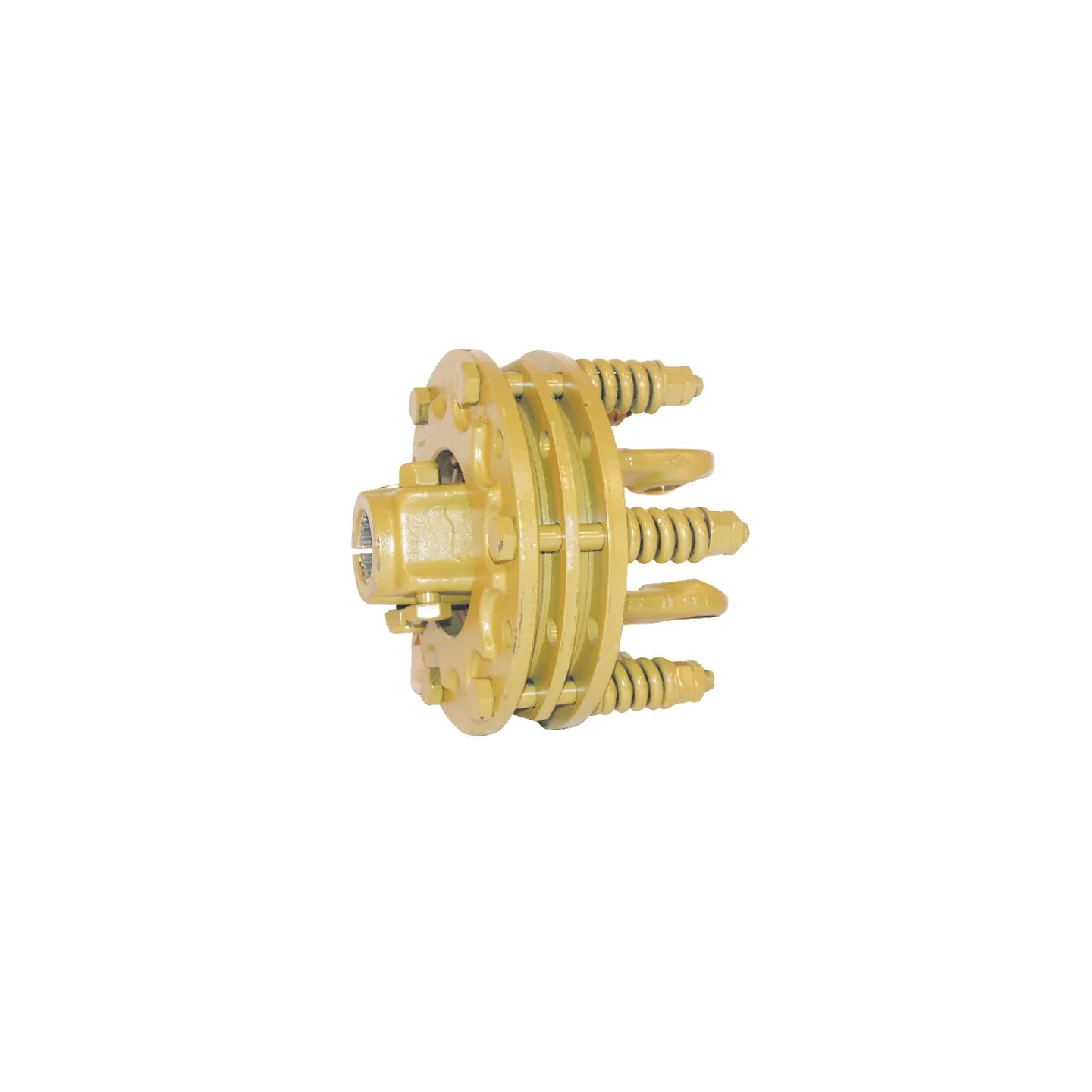

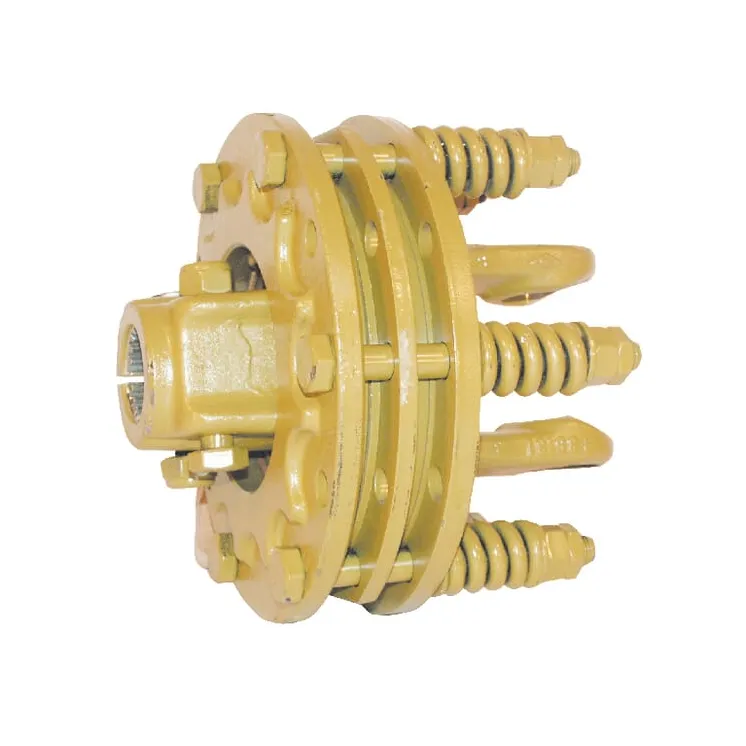

Berzes sajūgs K90/4 5611009120

Name: Berzes sajūgs K90/4 5611009120
Brand: Walterscheid
SKU: 5611009120
Price: 1077.3 EUR
Availability: BackOrder

Apmaksas iespējas

1 077,30 €

AR PVN

Pēc pieprasījuma

Berzes sajūgs K90/4 5611009120 Walterscheid

Uz pasūtījumu

ID: 66791

Apraksts

Part number	5611009120
EAN	8432970173668
Unit	Each
Long description	Friction plate clutches with compression springs K90 / 4 cpl. 2300, 2400, 2500, 2600
Details	No interruption of power transmission Absorb peak loads for a short time
Pros	Maintains torque Smooth running
Product details	No power interruption Catches peak loads for short periods of time Independent rotation direction Power transmission via skid plates Adjustable Suitable as starting torque Observe maintenance instructions
Application range	Mowers Rotary harrows Pick-up
Properties	Independent of direction of rotation Power transmission via friction discs Adjustable Suitable as a starting clutch
Technical info	Observe maintenance instructions
Benefits	Torque retention Smooth transition
Clutch type code	K90/4
Connection locking type	Clamp bolt (interfering)
Outside connection diameter	1-3/4 Inch 1.75 Inch
Connection number of splines/grooves	6
Shaft size code	W2400 P400
Max. rotation speed	1000 r/min
Max static torque	1200 N·m
Cross cap diameter	32 mm
Cross length	86 mm
DØOutside diameter	190 mm
LClutch part length	65 mm
Original number equivalent	1341883
Suitable for machine/vehicle brand	Walterscheid
