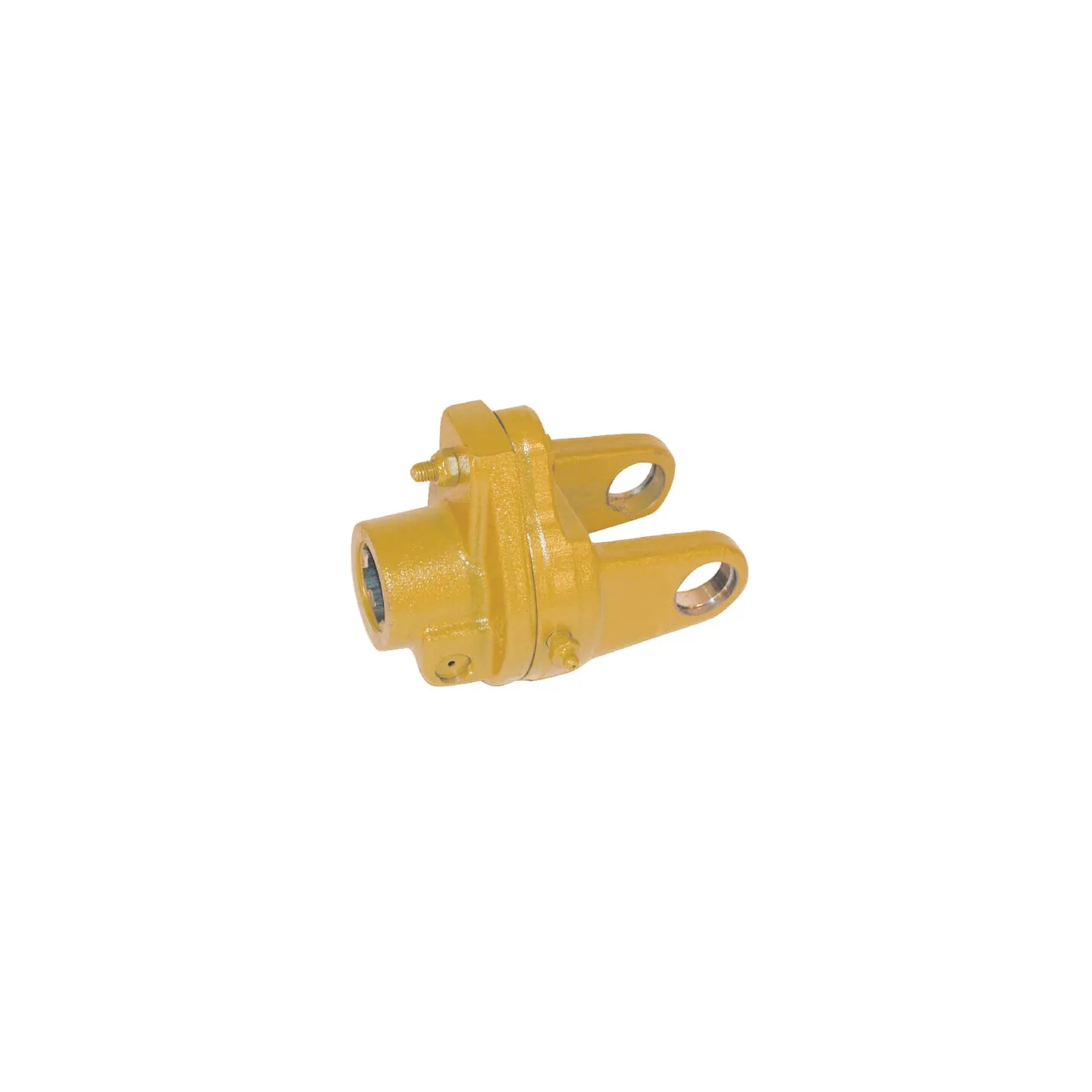

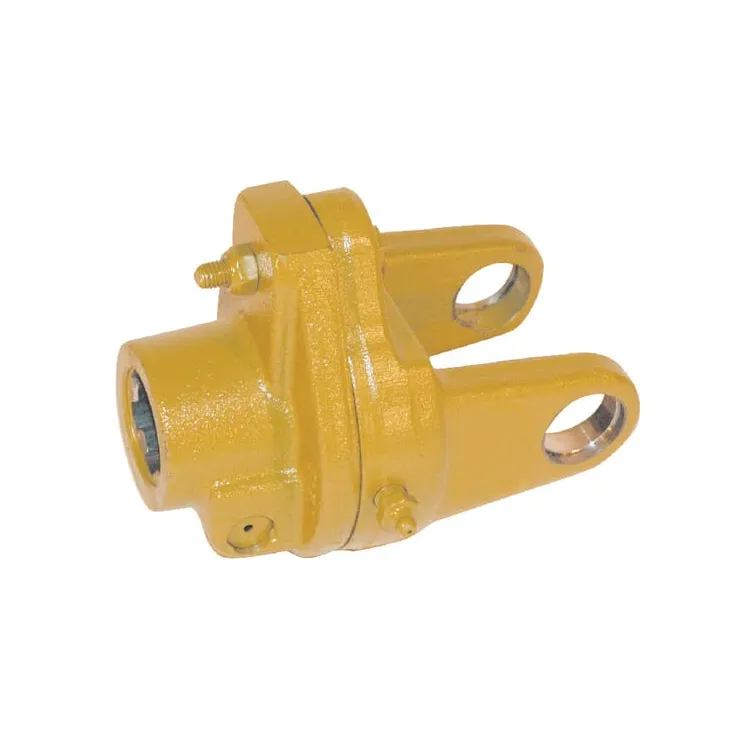

Bīdes tapas sajūgs W2500 M10-R64 5718718 VTE7314

Name: Bīdes tapas sajūgs W2500 M10-R64 5718718 VTE7314
Brand: Walterscheid
SKU: 5718718
Price: 554.45 EUR
Availability: InStock

Apmaksas iespējas

554,45 €

AR PVN

4-5 Darba dienas

Bīdes tapas sajūgs W2500 M10-R64 5718718 Walterscheid VTE7314

IR NOLIKTAVĀ

ID: 66881

Apraksts

Part number	5718718
EAN
Unit	Each
Long description	Shear bolt clutches complete for manure pumps, shredders and light balers, among others.
Details	Complete interruption of the drive Can be restored by replacing a shear bolt
Pros	Prevents against subsequent damage Easy to repair
Product details	Protects against blockages and overload Power transmission via shear bolt Drive fully disconnected Repairable by replacing a shear bolt Independent rotation direction
Application range	Fertiliser pump Shredders Light balers
Properties	Independent of the direction of rotation Power transmission via shear bolt
Technical info	Protects against blockages and overload
Benefits	Prevents consequent damage Easily restorable
Max dynamic torque	3330 N·m
Share bolts thread diameter	M10
Share bolts thread length	60
RShare bolts circle radius	64
Clutch type code	KB61/20
Max. rotation speed	1000 r/min
Shaft size code	W2500
DOutside diameter	156 mm
Connection outside diameter by tractor side	1-3/4 Inch
Connection number of splines/grooves by tractor side	6
Locking type by machine side	Push pin
Original number equivalent	1163917
