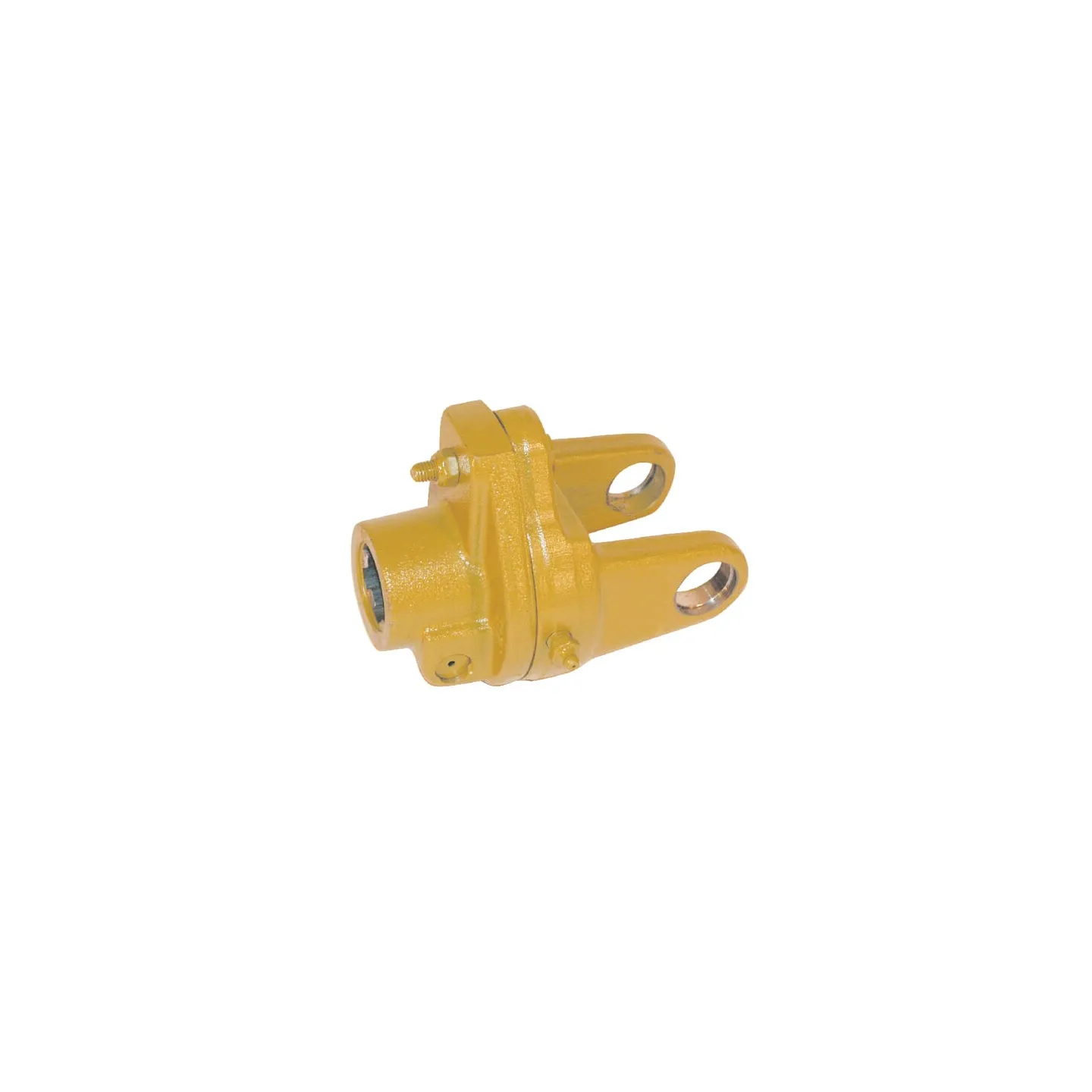

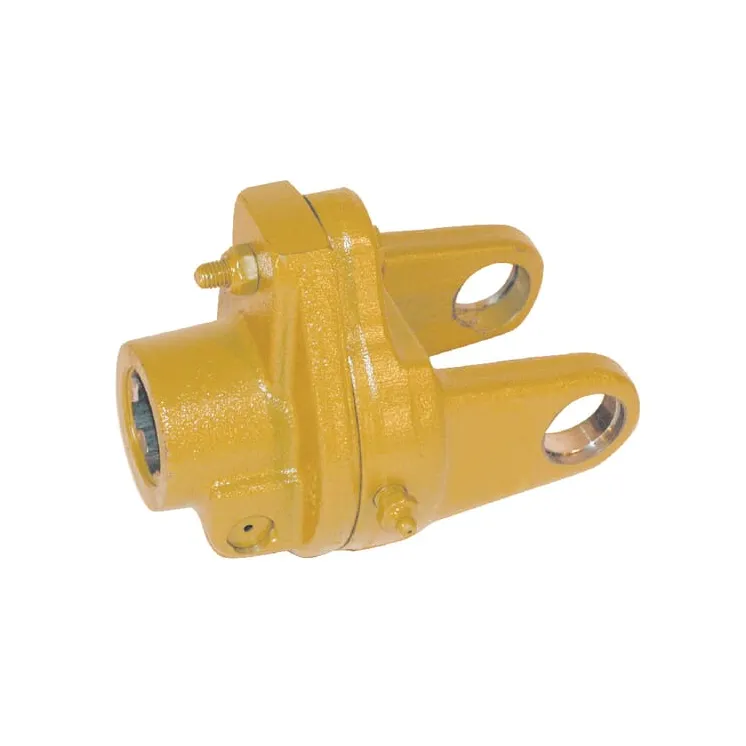

Bīdes tapa kl. W2500 13/4 20gab 5723418

Name: Bīdes tapa kl. W2500 13/4 20gab 5723418
Brand: Walterscheid
SKU: 5723418
Price: 593.6 EUR
Availability: InStock

Apmaksas iespējas

593,60 €

AR PVN

4-5 Darba dienas

Bīdes tapa kl. W2500 13/4 20gab 5723418 Walterscheid

IR NOLIKTAVĀ

ID: 66895

Apraksts

Part number	5723418
EAN	8432970164680
Unit	Each
Long description	Shear bolt clutches complete for manure pumps, shredders and light balers, among others.
Details	Complete interruption of the drive Can be restored by replacing a shear bolt
Pros	Prevents against subsequent damage Easy to repair
Product details	Protects against blockages and overload Power transmission via shear bolt Drive fully disconnected Repairable by replacing a shear bolt Independent rotation direction
Application range	Fertiliser pump Shredders Light balers
Properties	Independent of the direction of rotation Power transmission via shear bolt
Technical info	Protects against blockages and overload
Benefits	Prevents consequent damage Easily restorable
Max dynamic torque	4800 N·m
Share bolts thread diameter	M12
Share bolts thread length	60
RShare bolts circle radius	64
Shear bolts quality	8.8
Clutch type code	KB61/20
Max. rotation speed	1000 r/min
Shaft size code	W2500 P500
Connection outside diameter by tractor side	1-3/4 Inch
Connection number of splines/grooves by tractor side	20
Locking type by machine side	Clamp bolt (interfering)
Original number equivalent	1195598
