| Part number | 5717518 | |
|---|---|---|
| EAN | 8435194026758 | |
| Unit | Each | |

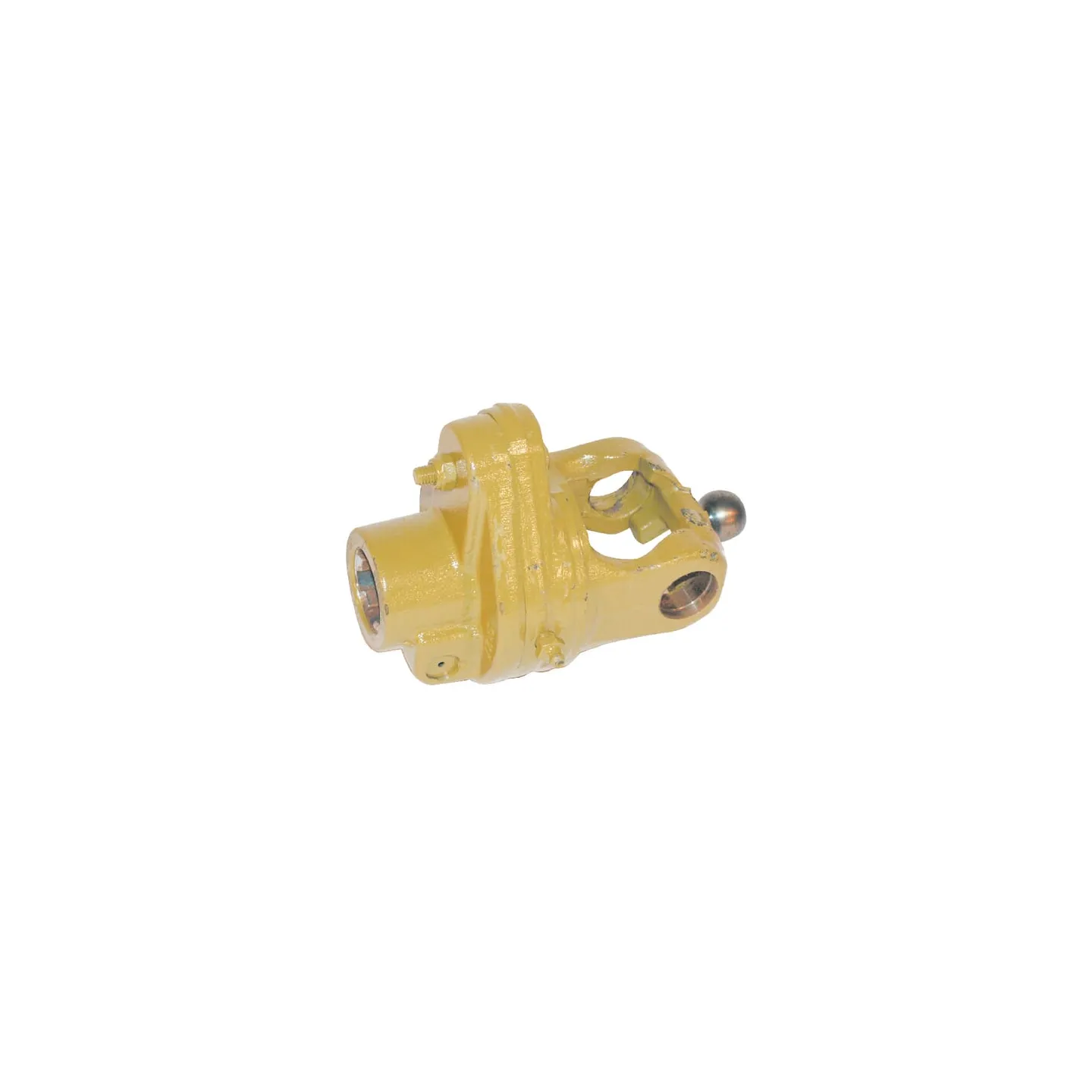

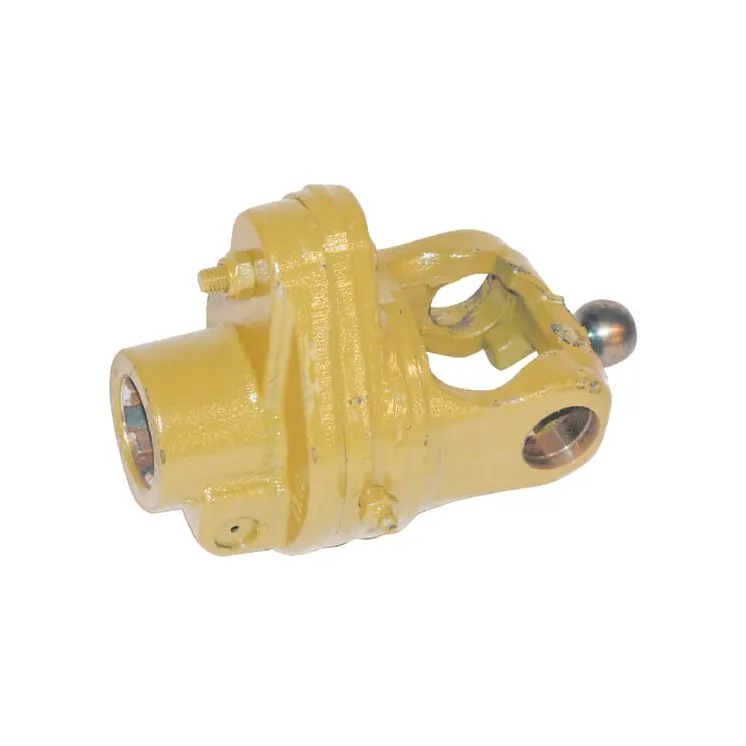

| Long description | Shear bolt clutches for wide-angle KB 61/2"0 cpl. 2370, 2380, 2480, 2580 | |
| Details |
| |
| Application range |
| |
| Properties |
| |
| Technical info | Protects against blockages and overload | |
| Benefits |
| |
| Max dynamic torque | 2500 N·m | |
| Share bolts thread diameter | M10 | |
| Share bolts thread length | 60 | |
| Share bolts circle radius | 48 | |
| Clutch type code | KB61/20 | |
| Max. rotation speed | 1000 r/min | |
| Shaft size code | W2580 | |
| Outside diameter | 156 mm | |
| Connection outside diameter by tractor side | 1-3/8 Inch | |
| Connection number of splines/grooves by tractor side | 6 | |
| Locking type by machine side | Clamp bolt (interfering) | |
| Original number equivalent | 1365241 |
