FF+ RL FK96/4R 2400 1 3/8-6 V 5810951150

Name: FF+ RL FK96/4R 2400 1 3/8-6 V 5810951150
Brand: Walterscheid
SKU: 5810951150
Price: 1238.11 EUR
Availability: InStock

Apmaksas iespējas

1 238,11 €

AR PVN

4-5 Darba dienas

FF+ RL FK96/4R 2400 1 3/8-6 V 5810951150 Walterscheid

IR NOLIKTAVĀ

ID: 66939

Apraksts

Part number	5810951150
EAN
Unit	Each

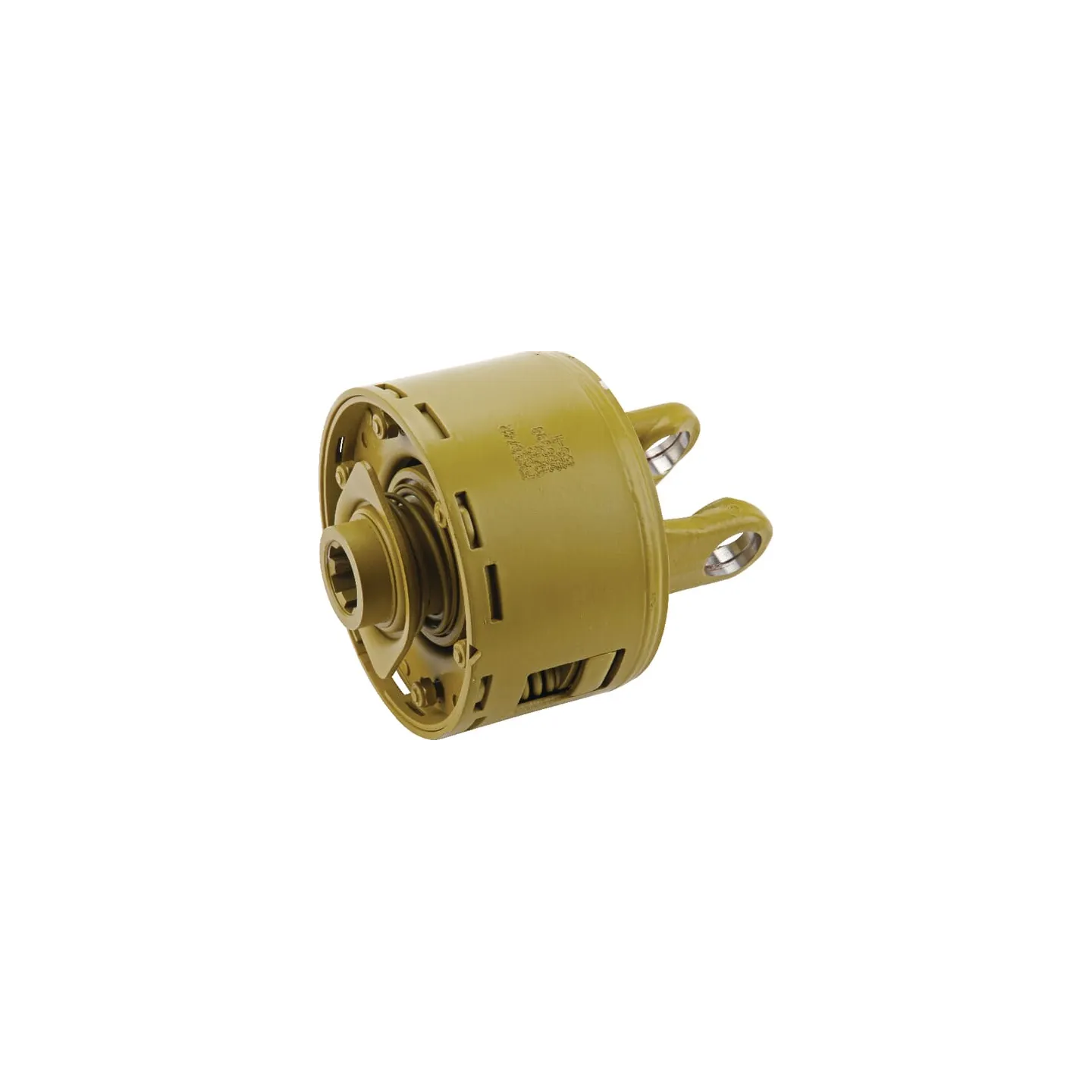

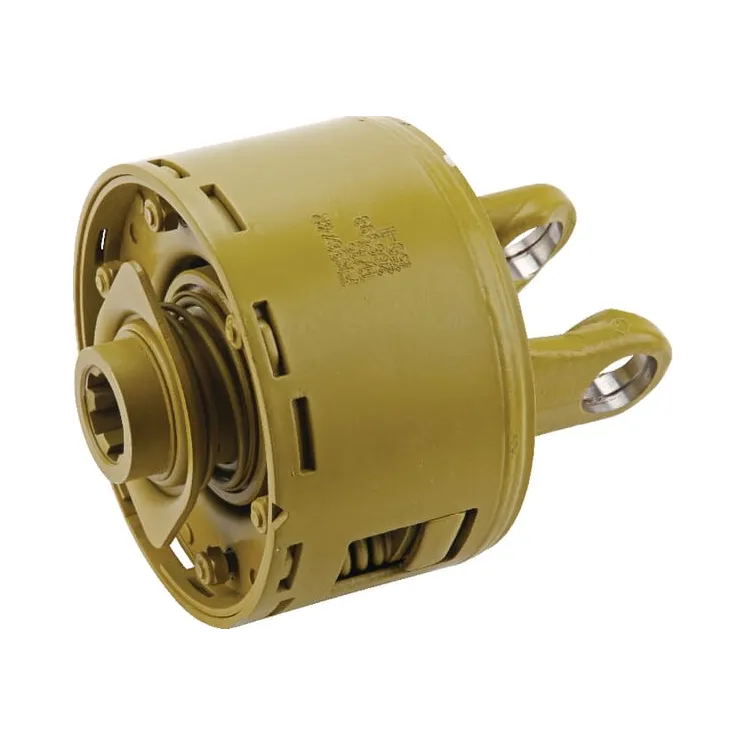

Long description	Friction and overrunning clutches with spring pack FK96 / 4 cpl. 2400, 2500
Details	Combination of freewheel and friction disc clutch Absorbs peak loads for short periods Protection for subsequent mass Max. torque adjustable via circlip
Application range	Big balers Round balers Mowers
Properties	Depending on the direction of rotation Power transmission via friction discs No noise during friction Noise when freewheeling Suitable as a starting clutch
Technical info	Observe maintenance instructions
Benefits	Torque retention Smooth transition Easier coupling when PTO shaft is braked Wide range of applications
Clutch type code	FK96/4R
Connection locking type	Collar lock
Outside connection diameter	1-3/8 Inch 1.375 Inch
Connection number of splines/grooves	6
Shaft size code	W2400 P400
Max. rotation speed	1000 r/min
Max static torque	1500 N·m
Cross cap diameter	32 mm
Cross length	86 mm
DOutside diameter	170 mm
Original number equivalent	1197256
Suitable for machine/vehicle brand	Agco Fella
