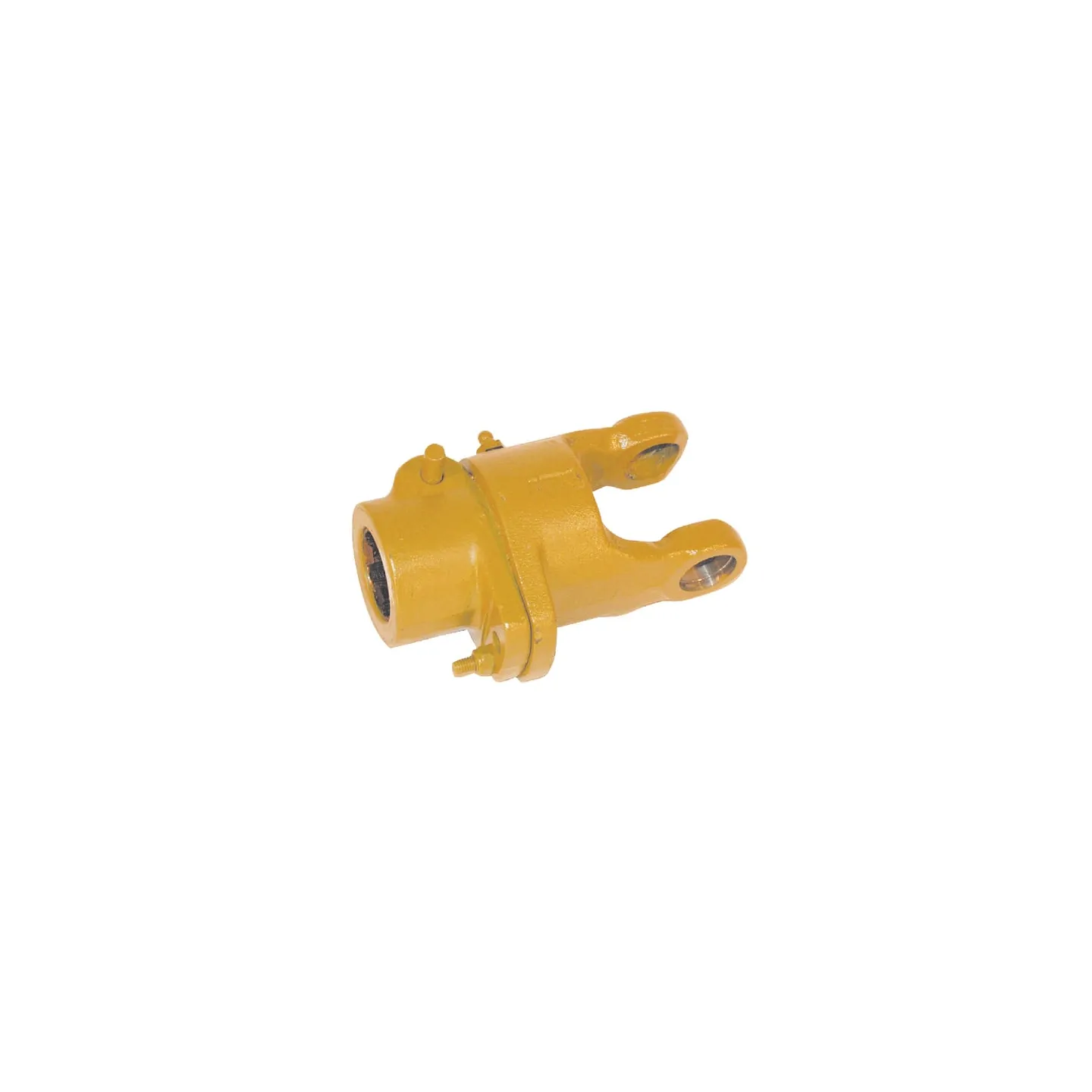

Sajūga bīdes skrūve K61/1 5710612

Name: Sajūga bīdes skrūve K61/1 5710612
Brand: Walterscheid
SKU: 5710612
Price: 572.72 EUR
Availability: InStock

Apmaksas iespējas

572,72 €

AR PVN

4-5 Darba dienas

Sajūga bīdes skrūve K61/1 5710612 Walterscheid

IR NOLIKTAVĀ

ID: 66941

Apraksts

Part number	5710612
EAN	8432970172005
Unit	Each
Long description	Shear bolt clutches complete for manure pumps, shredders and light balers, among others.
Details	Complete interruption of the drive Can be restored by replacing a shear bolt
Pros	Prevents against subsequent damage Easy to repair
Product details	Protects against blockages and overload Power transmission via shear bolt Drive fully disconnected Repairable by replacing a shear bolt Independent rotation direction
Application range	Fertiliser pump Shredders Light balers
Properties	Independent of the direction of rotation Power transmission via shear bolt
Technical info	Protects against blockages and overload
Benefits	Prevents consequent damage Easily restorable
Max dynamic torque	780 N·m
Share bolts thread diameter	M6
Share bolts thread length	35
RShare bolts circle radius	42
Shear bolts quality	8.8
Clutch type code	K61/1
Max. rotation speed	1000 r/min
Shaft size code	W2200
DOutside diameter	106 mm
Connection outside diameter by tractor side	1-3/8 Inch
Connection number of splines/grooves by tractor side	6
Locking type by machine side	Push pin
Original number equivalent	1322928
