Sajūga bīdes skrūve KB61/20 5711718

Name: Sajūga bīdes skrūve KB61/20 5711718
Brand: Walterscheid
SKU: 5711718
Price: 369.93 EUR
Availability: InStock

Apmaksas iespējas

369,93 €

AR PVN

4-5 Darba dienas

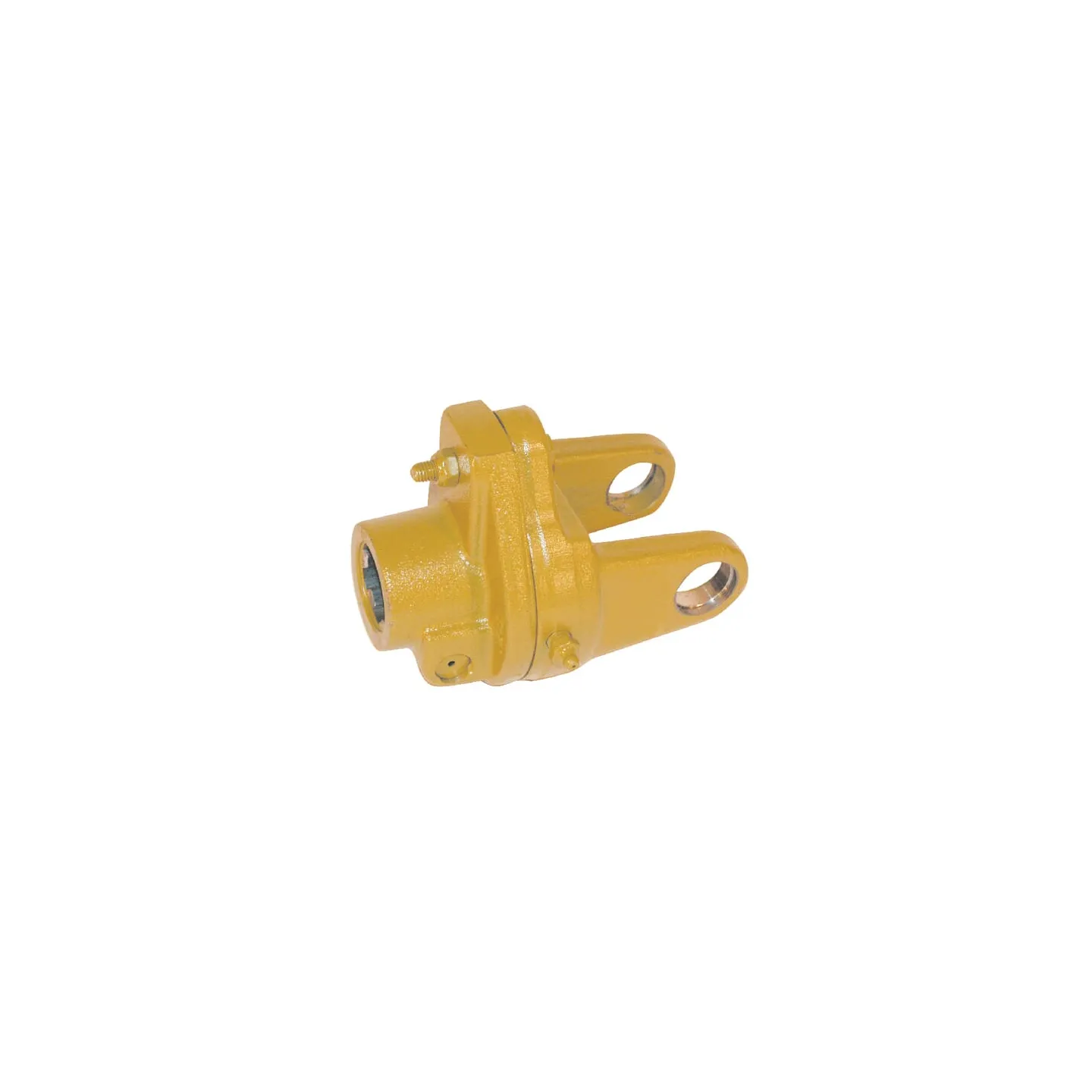

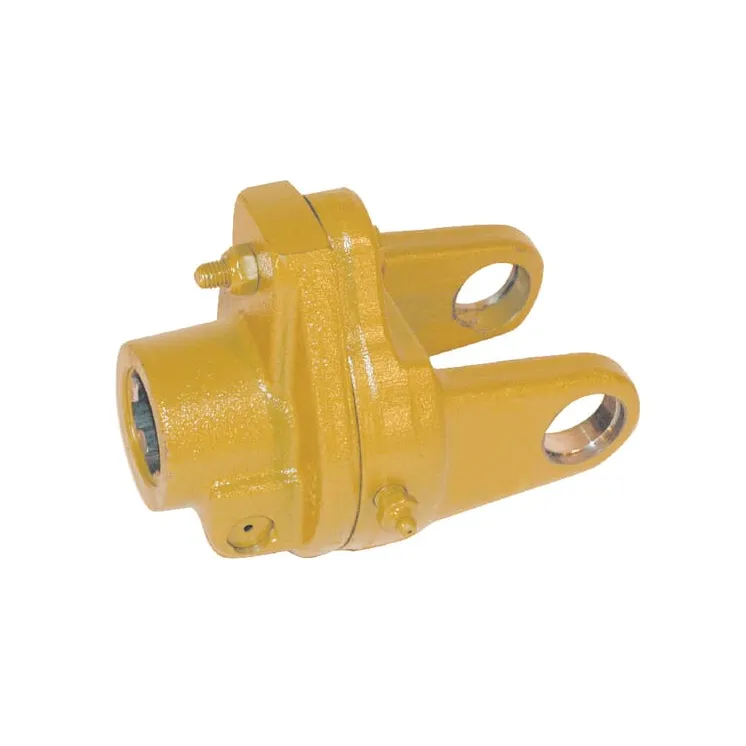

Sajūga bīdes skrūve KB61/20 5711718 Walterscheid

IR NOLIKTAVĀ

ID: 66951

Apraksts

Part number	5711718
EAN	8435194024754
Unit	Each
Long description	Shear bolt clutches complete for manure pumps, shredders and light balers, among others.
Details	Complete interruption of the drive Can be restored by replacing a shear bolt
Pros	Prevents against subsequent damage Easy to repair
Product details	Protects against blockages and overload Power transmission via shear bolt Drive fully disconnected Repairable by replacing a shear bolt Independent rotation direction
Application range	Fertiliser pump Shredders Light balers
Properties	Independent of the direction of rotation Power transmission via shear bolt
Technical info	Protects against blockages and overload
Benefits	Prevents consequent damage Easily restorable
Max dynamic torque	1730 N·m
Share bolts thread diameter	M8
Share bolts thread length	50
RShare bolts circle radius	52
Shear bolts quality	8.8
Clutch type code	KB61/20
Max. rotation speed	1000 r/min
Shaft size code	W2300 P300
DOutside diameter	140 mm
Connection outside diameter by tractor side	1-3/8 Inch
Connection number of splines/grooves by tractor side	6
Locking type by machine side	Push pin
Original number equivalent	1333915
