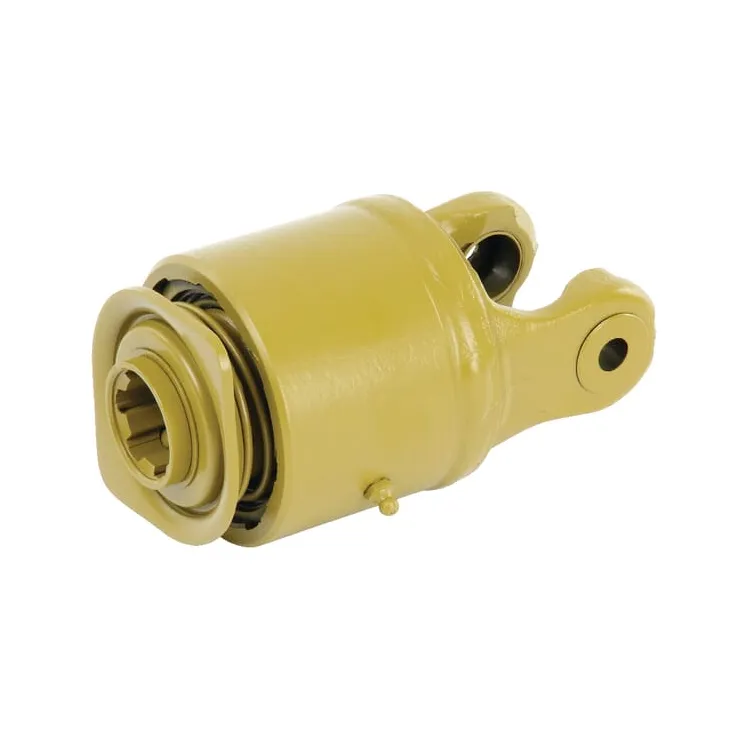

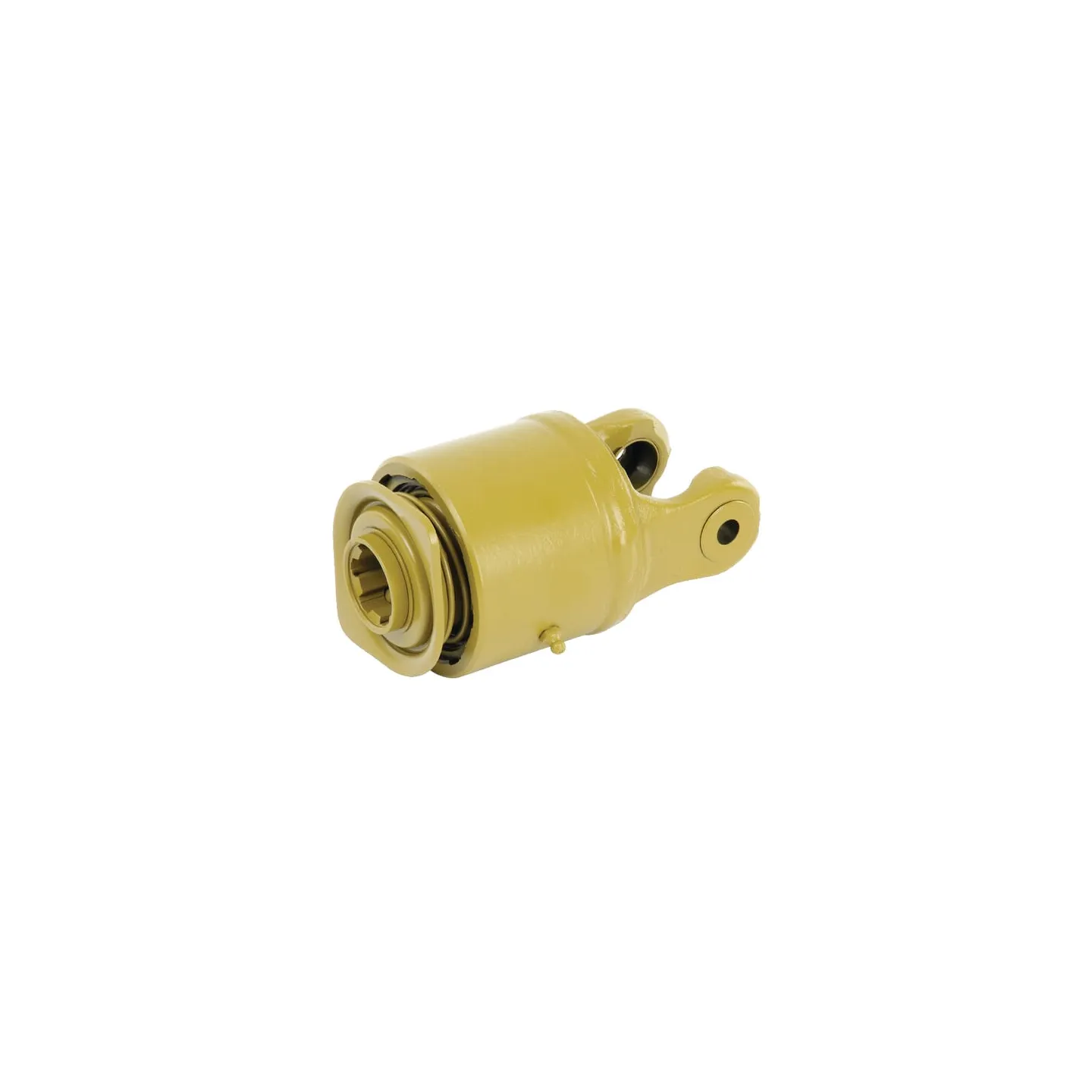

Radiālais tapu sajūgs K34M 5565003120

Name: Radiālais tapu sajūgs K34M 5565003120
Brand: Walterscheid
SKU: 5565003120
Price: 594.72 EUR
Availability: InStock

Apmaksas iespējas

594,72 €

AR PVN

4-5 Darba dienas

Radiālais tapu sajūgs K34M 5565003120 Walterscheid

IR NOLIKTAVĀ

ID: 66997

Apraksts

Part number	5565003120
EAN	8432970154490
Unit	Each
Long description	Star ratchet / radial pin clutches K 31-B cpl. 2100, 2200, 2300
Details	Limits the torque in the event of overload Clutch rattles when slipping through
Pros	2 rotation directions Shocks and vibrations Acoustic signal when overloaded Pulsating power transmission when slipping
Product details	Power transmission via cams and springs Limits torque when overloaded Clutch starts ratcheting when slipping
Application range	Tedders Rakes Pick-up Maize headers Silo spreaders
Properties	2 directions of rotation Impacts and vibrations
Technical info	Force transmission using cam and springs
Benefits	Acoustic signal in the event of overload Pulsing power transmission when slipping through
Clutch type code	K34M
Connection locking type	Collar lock
Outside connection diameter	1-3/8 Inch 1.375 Inch
Connection number of splines/grooves	6
Shaft size code	W2300 P300
Max. rotation speed	700 r/min
Max static torque	1200 N·m
Cross cap diameter	27 mm
Cross length	84 mm
Outside diameter	95 mm
LClutch part length	93 mm
Original number equivalent	1167603
Suitable for machine/vehicle brand	Schuitemaker
