Radiālais tapas sajūgs K33B ar A 556630365

Name: Radiālais tapas sajūgs K33B ar A 556630365
Brand: Walterscheid
SKU: 556630365
Price: 489.29 EUR
Availability: InStock

Apmaksas iespējas

489,29 €

AR PVN

4-5 Darba dienas

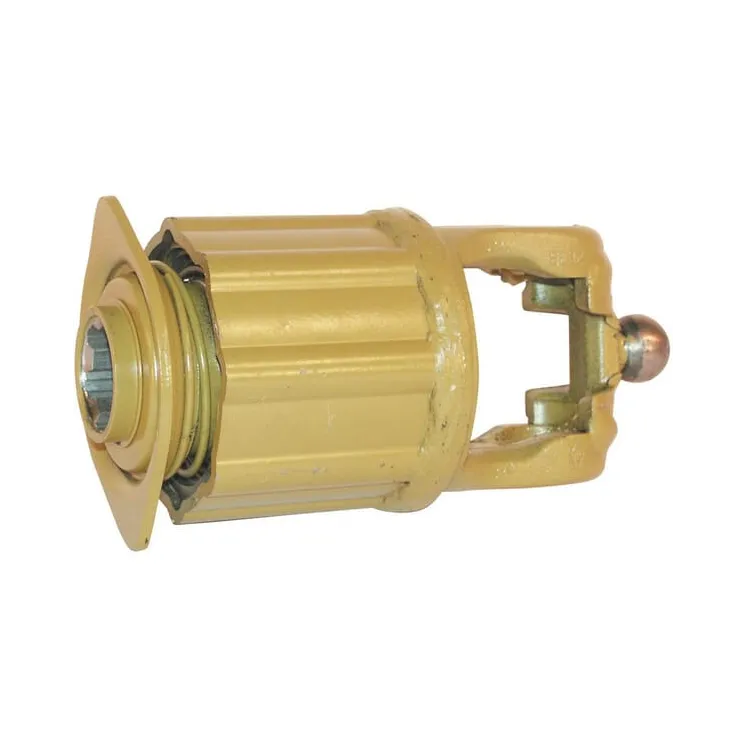

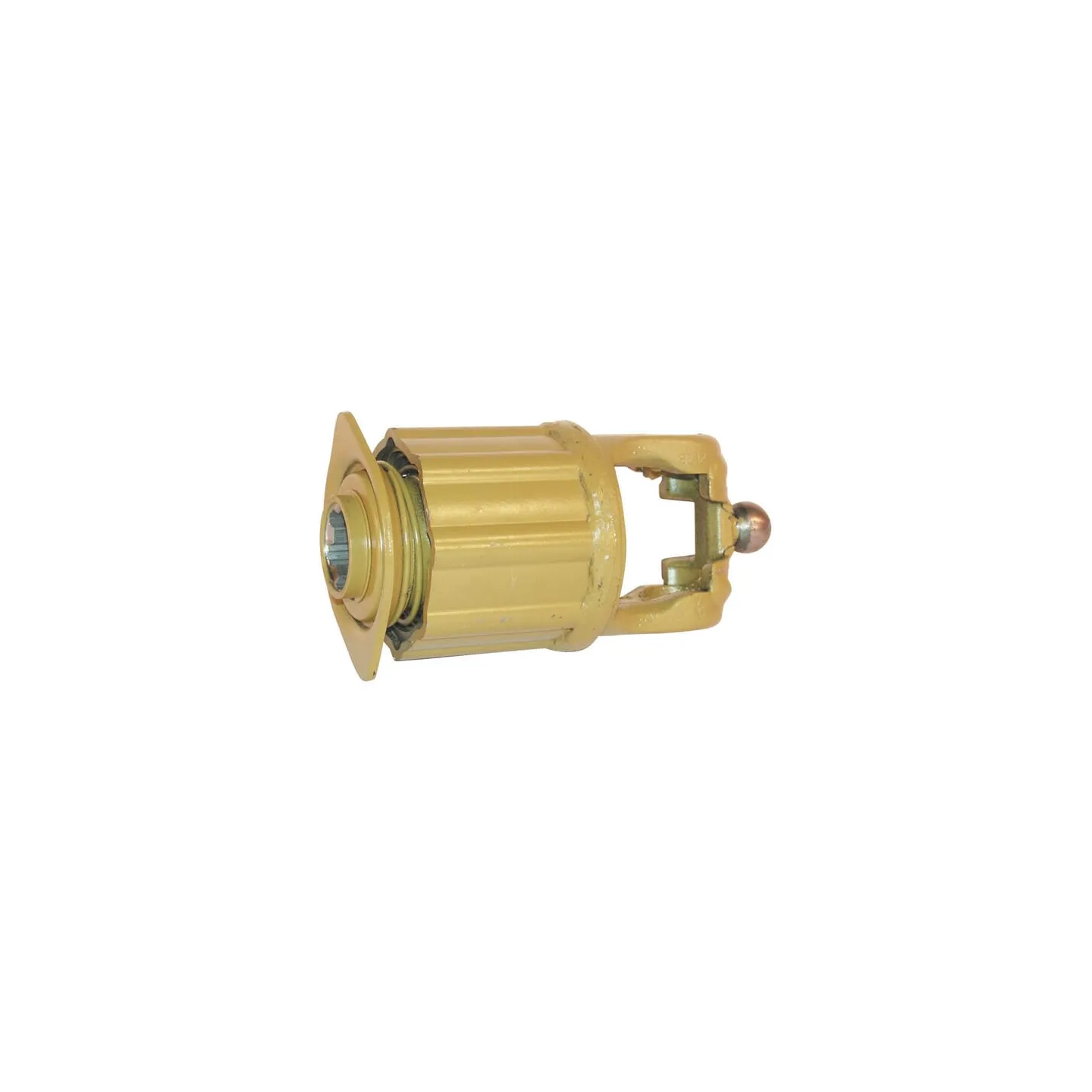

Radiālais tapas sajūgs K33B ar A 556630365 Walterscheid

IR NOLIKTAVĀ

ID: 67016

Apraksts

Part number	556630365
EAN	8432970157583
Unit	Each
Long description	Star ratchet / radial pin clutches for wide-angle K 32-B cpl. 2270°,2370°,2280
Details	Clutch rattles when slipping through Limits the torque in the event of overload
Application range	Tedders Rakes Silo spreaders
Properties	2 directions of rotation Impacts and vibrations
Technical info	Force transmission using cam and springs
Benefits	Acoustic signal in the event of overload Pulsing power transmission when slipping through
Clutch type code	K33B
Connection locking type	Collar lock
Outside connection diameter	1-3/8 Inch 1.375 Inch
Connection number of splines/grooves	6
Shaft size code	W2280
Max. rotation speed	1000 r/min
Max static torque	650 N·m
Cross cap diameter	24 mm
Cross length	61 mm
Outside diameter	95 mm
LClutch part length	74 mm
Original number equivalent	1177609
Suitable for machine/vehicle brand	Kuhn
