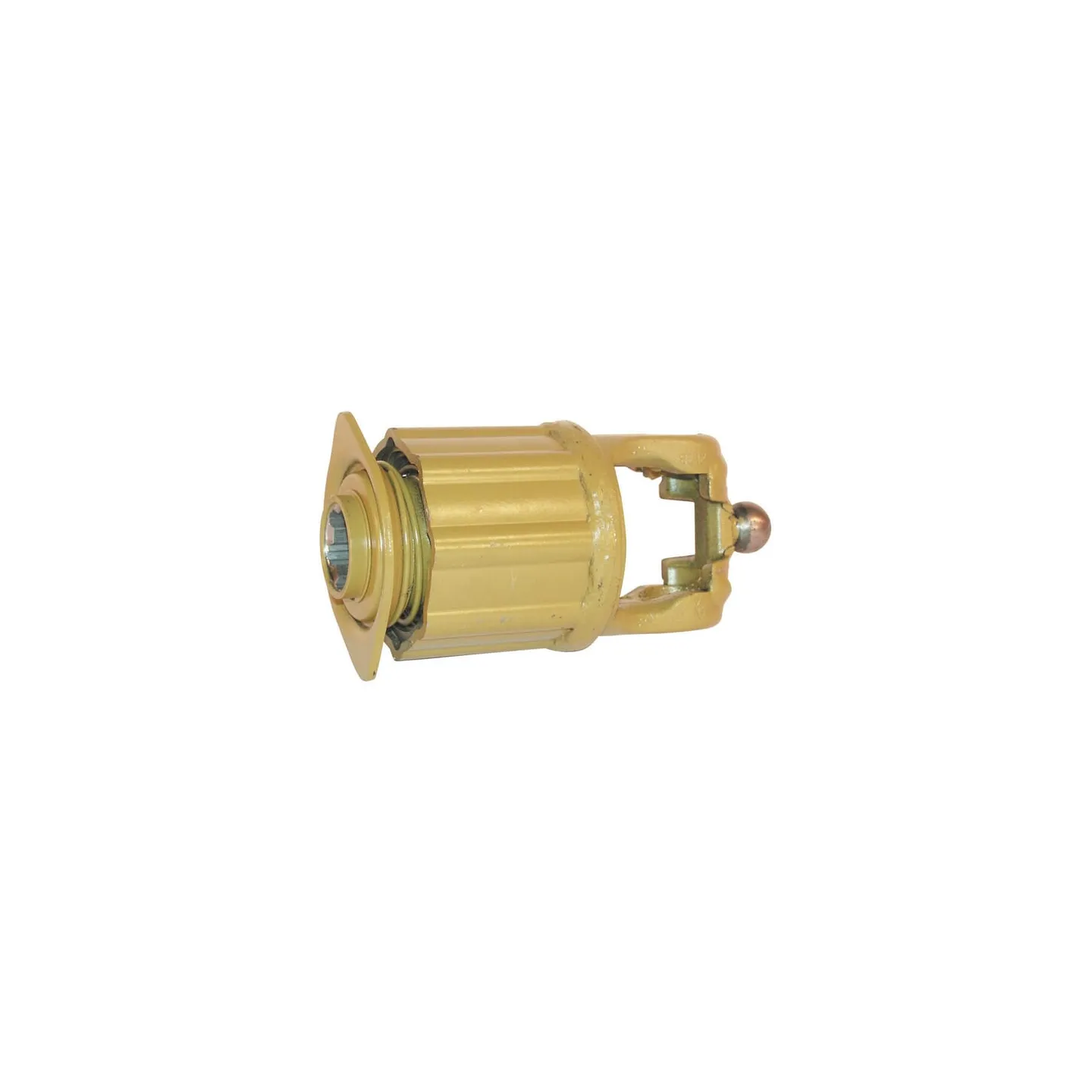

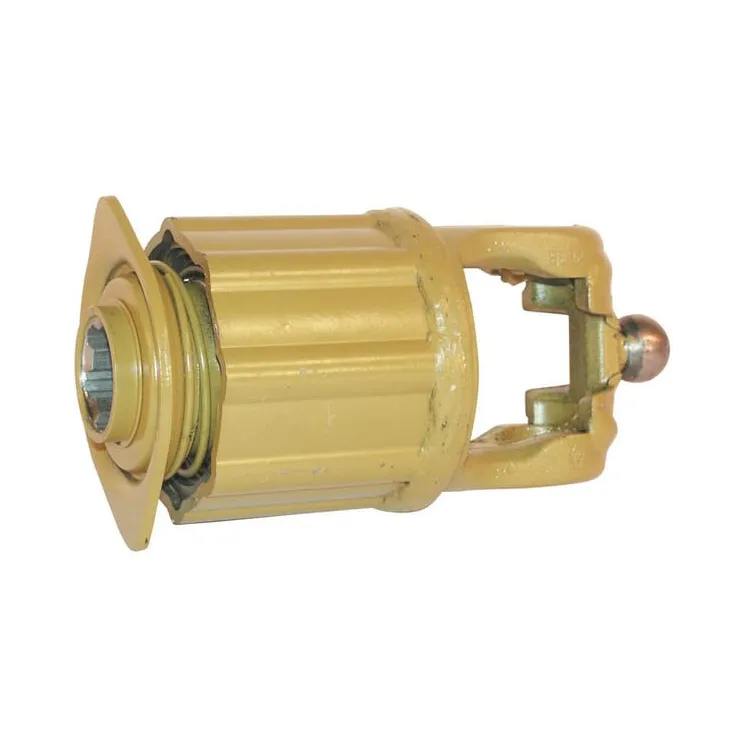

Radiālais tapas sajūgs K33B ar A 556740380

Name: Radiālais tapas sajūgs K33B ar A 556740380
Brand: Walterscheid
SKU: 556740380
Price: 485.97 EUR
Availability: BackOrder

Apmaksas iespējas

485,97 €

AR PVN

Pēc pieprasījuma

Radiālais tapas sajūgs K33B ar A 556740380 Walterscheid

Uz pasūtījumu

ID: 67023

Apraksts

Part number	556740380
EAN	8435194184687
Unit	Each
Long description	Star ratchet / radial pin clutches for wide-angle K 32-B cpl. 2270°,2370°,2280
Details	Clutch rattles when slipping through Limits the torque in the event of overload
Application range	Tedders Rakes Silo spreaders
Properties	2 directions of rotation Impacts and vibrations
Technical info	Force transmission using cam and springs
Benefits	Acoustic signal in the event of overload Pulsing power transmission when slipping through
Clutch type code	K33B
Connection locking type	Collar lock
Outside connection diameter	1-3/8 Inch 1.375 Inch
Connection number of splines/grooves	6
Shaft size code	W2380
Max. rotation speed	1000 r/min
Max static torque	800 N·m
Cross cap diameter	27 mm
Cross length	75 mm
Outside diameter	95 mm
LClutch part length	74 mm
Original number equivalent	1163740
Suitable for machine/vehicle brand	Matsui Kuhn
