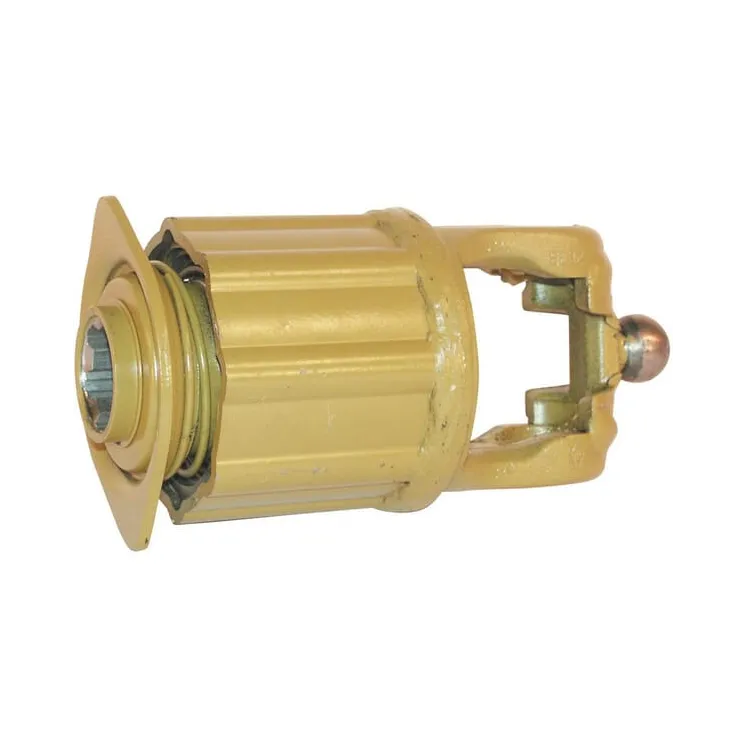

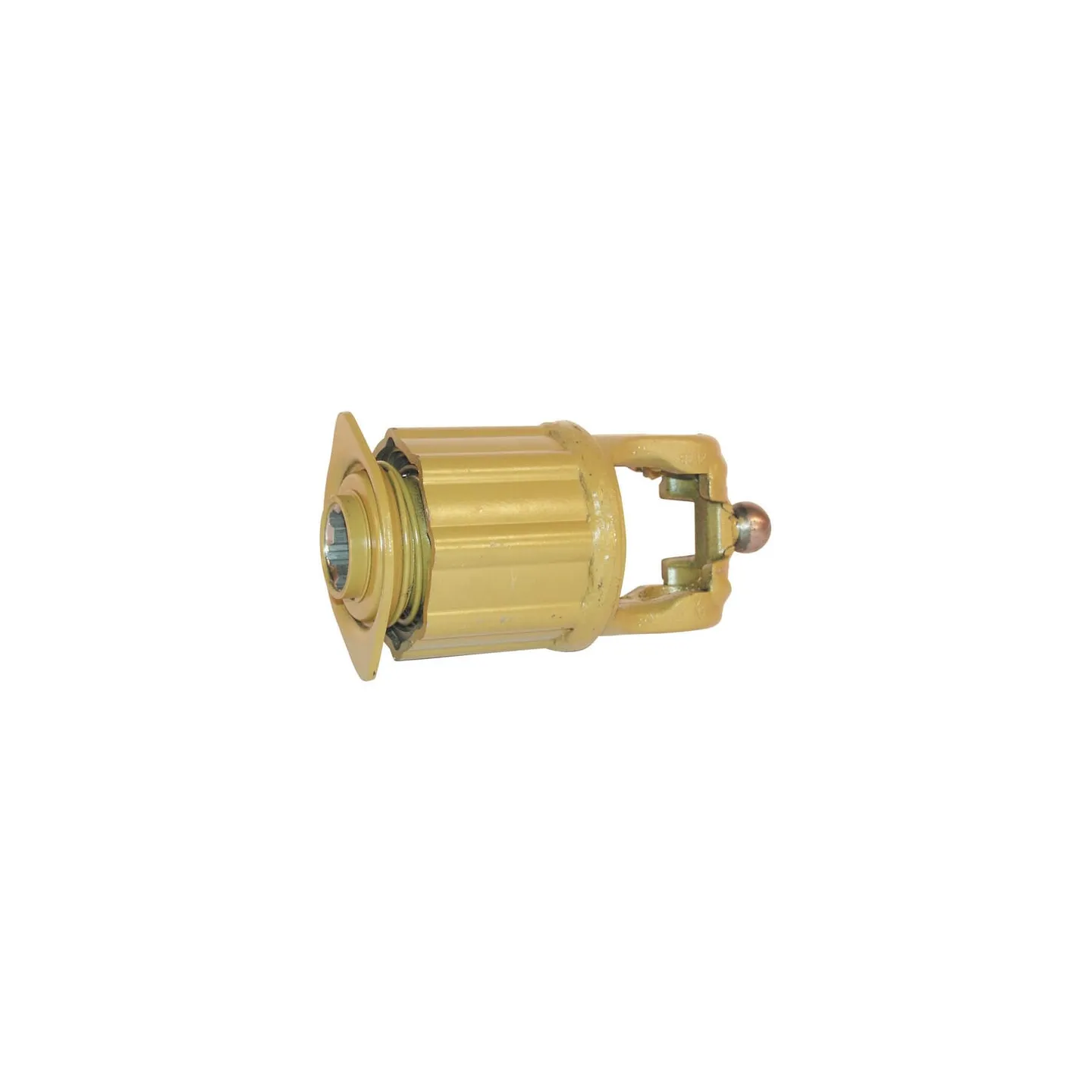

Radiālais tapas sajūgs K34B ar A 5567503100

Name: Radiālais tapas sajūgs K34B ar A 5567503100
Brand: Walterscheid
SKU: 5567503100
Price: 614.2 EUR
Availability: InStock

Apmaksas iespējas

614,20 €

AR PVN

4-5 Darba dienas

Radiālais tapas sajūgs K34B ar A 5567503100 Walterscheid

IR NOLIKTAVĀ

ID: 67037

Apraksts

Part number	5567503100
EAN	8435194184694
Unit	Each
Long description	Star ratchet / radial pin clutches for wide-angle K 32-B cpl. 2270°,2370°,2280
Details	Clutch rattles when slipping through Limits the torque in the event of overload
Application range	Tedders Rakes Silo spreaders
Properties	2 directions of rotation Impacts and vibrations
Technical info	Force transmission using cam and springs
Benefits	Acoustic signal in the event of overload Pulsing power transmission when slipping through
Clutch type code	K34B
Connection locking type	Collar lock
Outside connection diameter	1-3/8 Inch 1.375 Inch
Connection number of splines/grooves	6
Shaft size code	W2380
Max. rotation speed	1000 r/min
Max static torque	1000 N·m
Cross cap diameter	27 mm
Cross length	75 mm
Outside diameter	95 mm
LClutch part length	93 mm
Original number equivalent	1163742
Suitable for machine/vehicle brand	n/a
