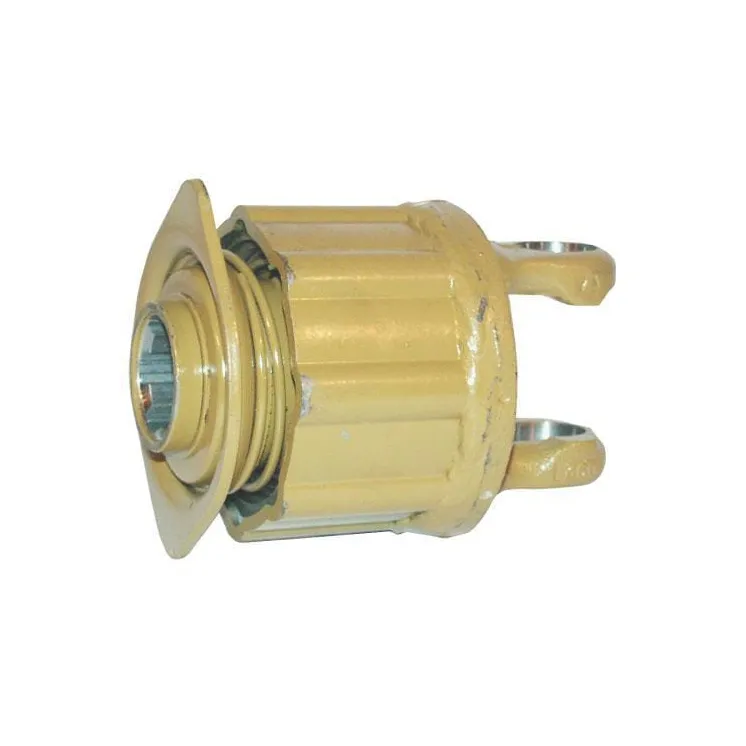

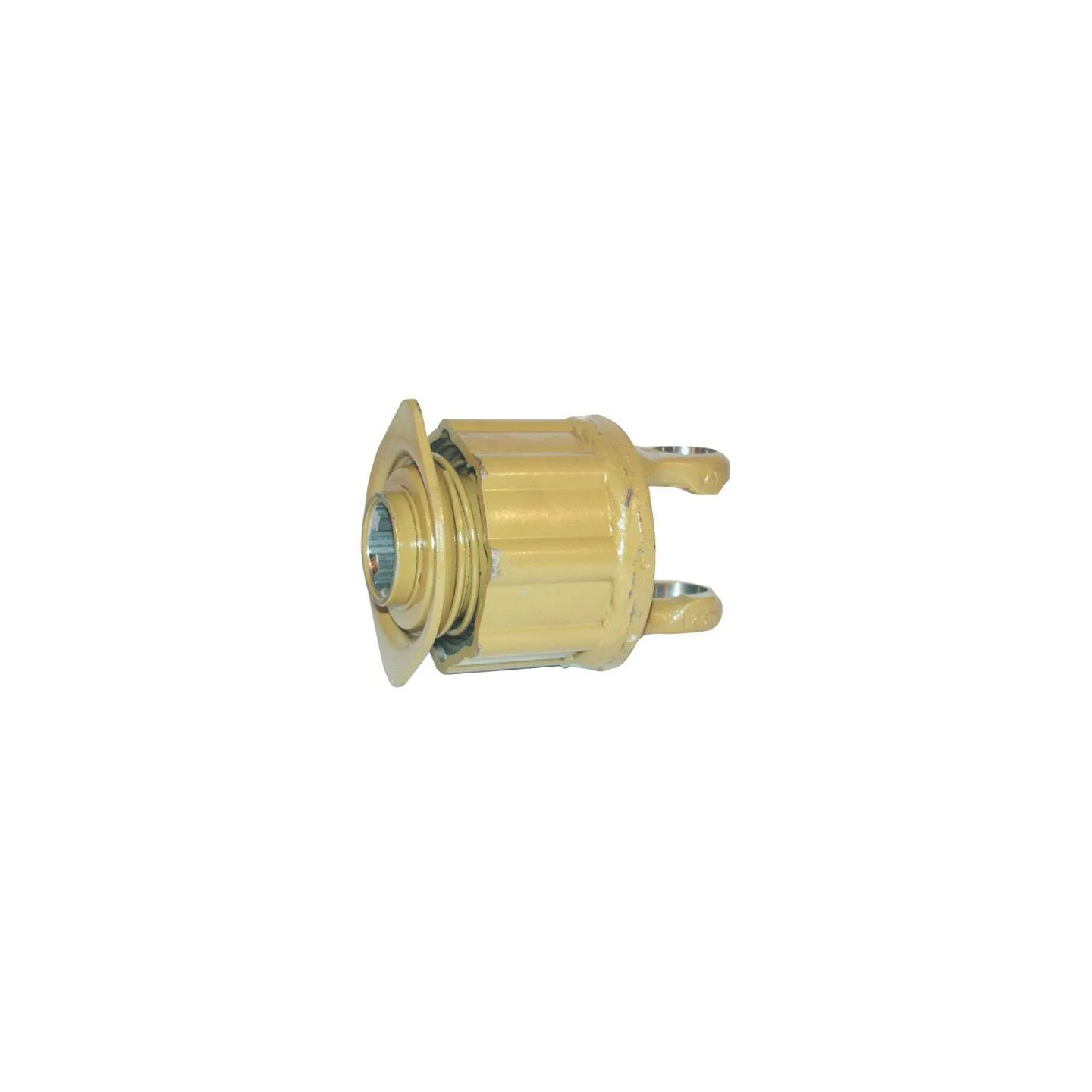

Radiālais tapas sajūgs K31B 551940326

Name: Radiālais tapas sajūgs K31B 551940326
Brand: Walterscheid
SKU: 551940326
Price: 304.13 EUR
Availability: BackOrder

Apmaksas iespējas

304,13 €

AR PVN

Pēc pieprasījuma

Radiālais tapas sajūgs K31B 551940326 Walterscheid

Uz pasūtījumu

ID: 67062

Apraksts

Part number	551940326
EAN	8432970176270
Unit	Each
Long description	Star ratchet / radial pin clutches K 31-B cpl. 2100, 2200, 2300
Details	Limits the torque in the event of overload Clutch rattles when slipping through
Pros	2 rotation directions Shocks and vibrations Acoustic signal when overloaded Pulsating power transmission when slipping
Product details	Power transmission via cams and springs Limits torque when overloaded Clutch starts ratcheting when slipping
Application range	Tedders Rakes Pick-up Maize headers Silo spreaders
Properties	2 directions of rotation Impacts and vibrations
Technical info	Force transmission using cam and springs
Benefits	Acoustic signal in the event of overload Pulsing power transmission when slipping through
Clutch type code	K31B
Connection locking type	Collar lock
Outside connection diameter	1-3/8 Inch 1.375 Inch
Connection number of splines/grooves	6
Shaft size code	W2200
Max. rotation speed	700 r/min
Max static torque	260 N·m
Cross cap diameter	24 mm
Cross length	70 mm
Outside diameter	95 mm
LClutch part length	36 mm
Original number equivalent	1365134
Suitable for machine/vehicle brand	Sirtec
