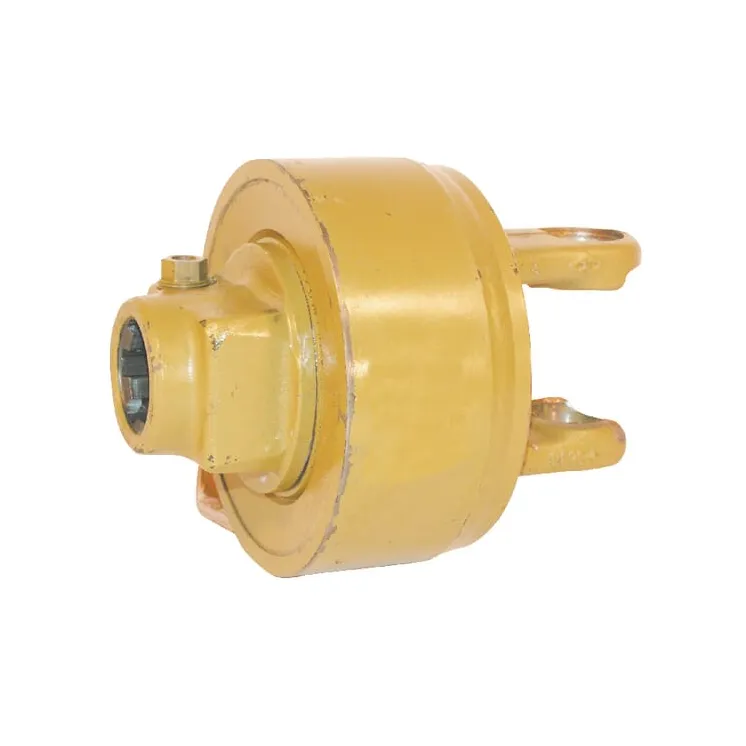

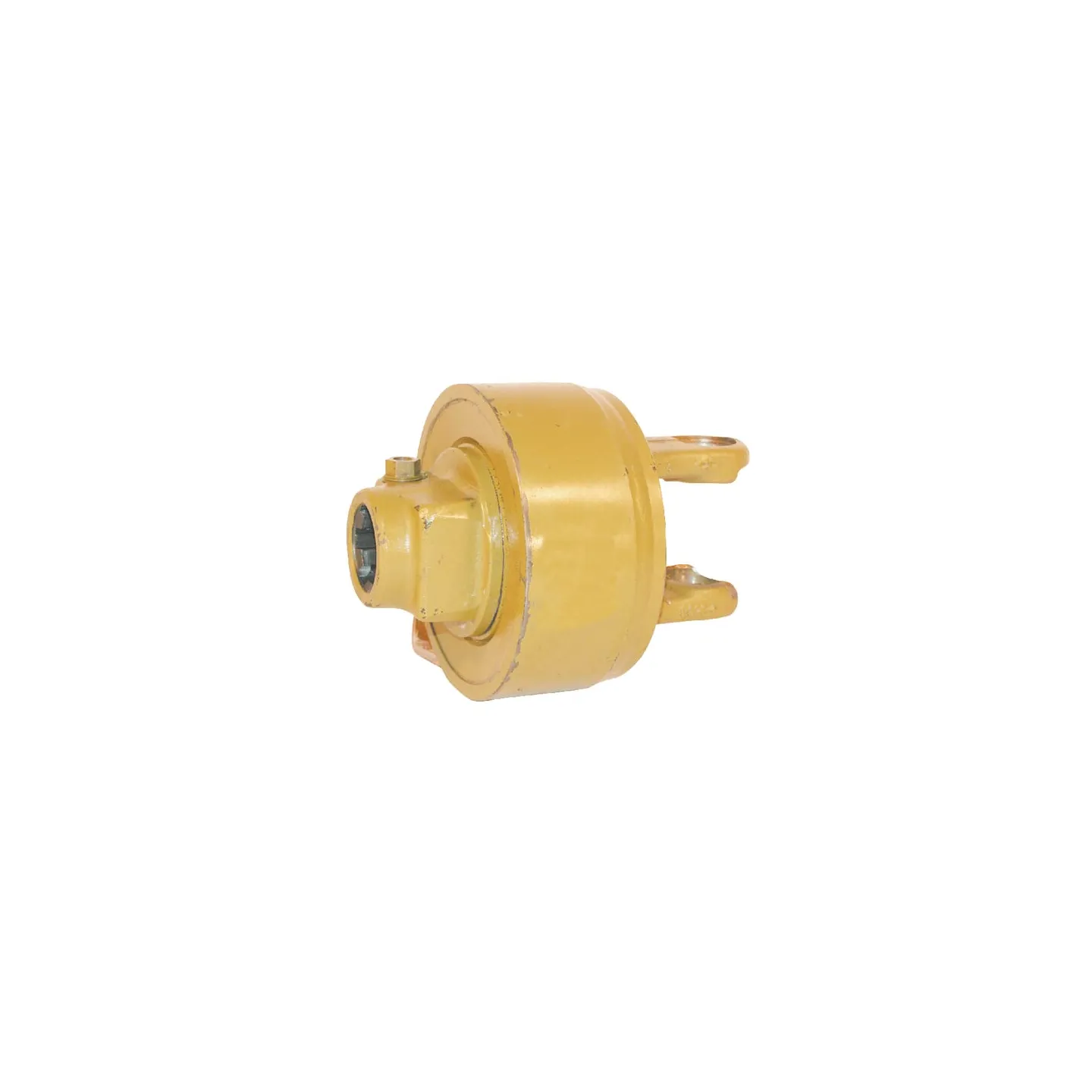

Sajūga izciļņa K64/12R 120 daNm 5910841120

Name: Sajūga izciļņa K64/12R 120 daNm 5910841120
Brand: Walterscheid
SKU: 5910841120
Price: 1227.7 EUR
Availability: InStock

Apmaksas iespējas

1 227,70 €

AR PVN

4-5 Darba dienas

Sajūga izciļņa K64/12R 120 daNm 5910841120 Walterscheid

IR NOLIKTAVĀ

ID: 67125

Apraksts

Part number	5910841120
EAN	8432970202207
Unit	Each
Long description	Cam clutches K64 Series Series includes K64/12, K64/22, K64/24
Details	Drive is interrupted when overloaded Switches on automatically at low speed
Pros	1 direction of rotation Protection of the drive train No time loss due to coupling repair
Product details	Dropping the rpm allows the torque to build up in a pulsating way Drive stops when overloaded Automatically switches on with low rpm
Application range	Round baler Silage wagon Rotary harrow Shredder adapter
Properties	1 direction of rotation
Technical info	Torque can be set to pulsing by reducing the speed
Benefits	Drive protection No time is lost by restoring torque
Clutch type code	K64/12R
Connection locking type	Clamp cone
Outside connection diameter	1-3/8 Inch 1.375 Inch
Connection number of splines/grooves	6
Shaft size code	W2300 P300
Max. rotation speed	1000 r/min
Max static torque	1200 N·m
Cross cap diameter	27 mm
Cross length	84 mm
Outside diameter	130 mm
Original number equivalent	1693055
Suitable for machine/vehicle brand	n/a
