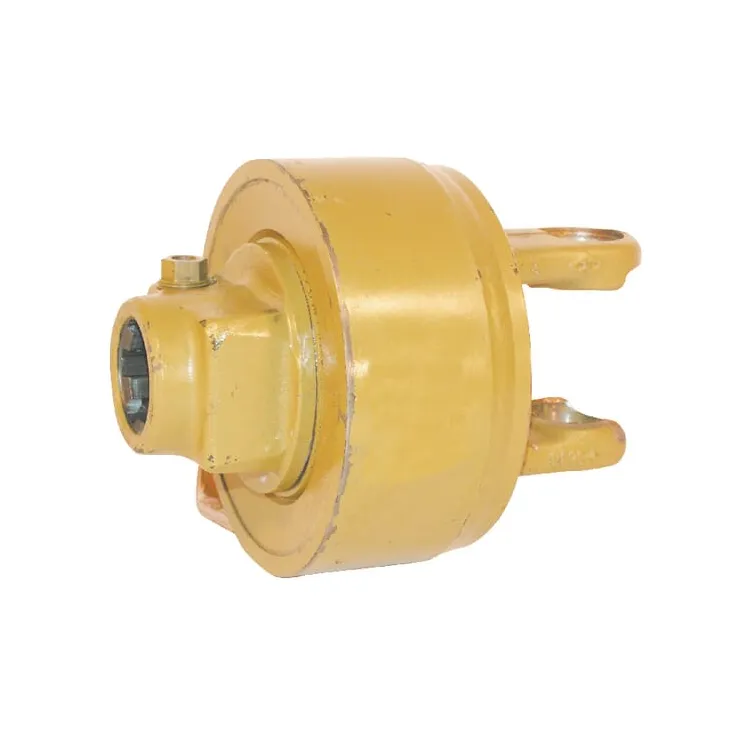

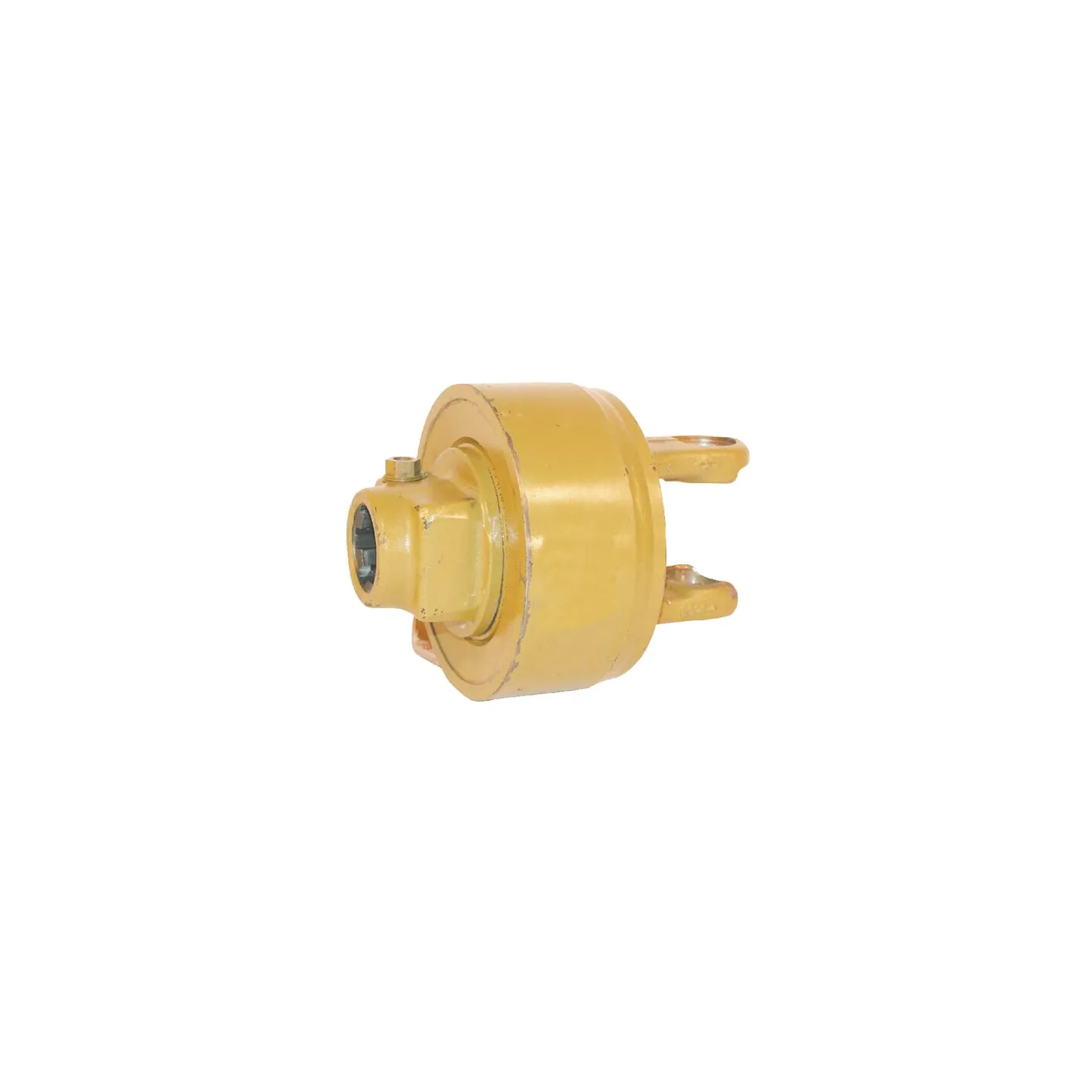

Izciļņa sajūgs K64/22R 5912743180 5916512160

Name: Izciļņa sajūgs K64/22R 5912743180 5916512160
Brand: Walterscheid
SKU: 5912743180
Price: 1687.68 EUR
Availability: InStock

Apmaksas iespējas

1 687,68 €

AR PVN

4-5 Darba dienas

Izciļņa sajūgs K64/22R 5912743180 Walterscheid 5916512160

IR NOLIKTAVĀ

ID: 67136

Apraksts

Part number	5912743180
EAN	8432970150867
Unit	Each
Long description	Cam clutches K64 Series Series includes K64/12, K64/22, K64/24
Details	Drive is interrupted when overloaded Switches on automatically at low speed
Pros	1 direction of rotation Protection of the drive train No time loss due to coupling repair
Product details	Dropping the rpm allows the torque to build up in a pulsating way Drive stops when overloaded Automatically switches on with low rpm
Application range	Round baler Silage wagon Rotary harrow Shredder adapter
Properties	1 direction of rotation
Technical info	Torque can be set to pulsing by reducing the speed
Benefits	Drive protection No time is lost by restoring torque
Clutch type code	K64/22R
Connection locking type	Clamp cone
Outside connection diameter	1-3/4 Inch 1.75 Inch
Connection number of splines/grooves	6
Shaft size code	W2500 P500
Max. rotation speed	1000 r/min
Max static torque	1800 N·m
Cross cap diameter	36 mm
Cross length	100 mm
Outside diameter	168 mm
Original number equivalent	1133969
Suitable for machine/vehicle brand	Pöttinger
