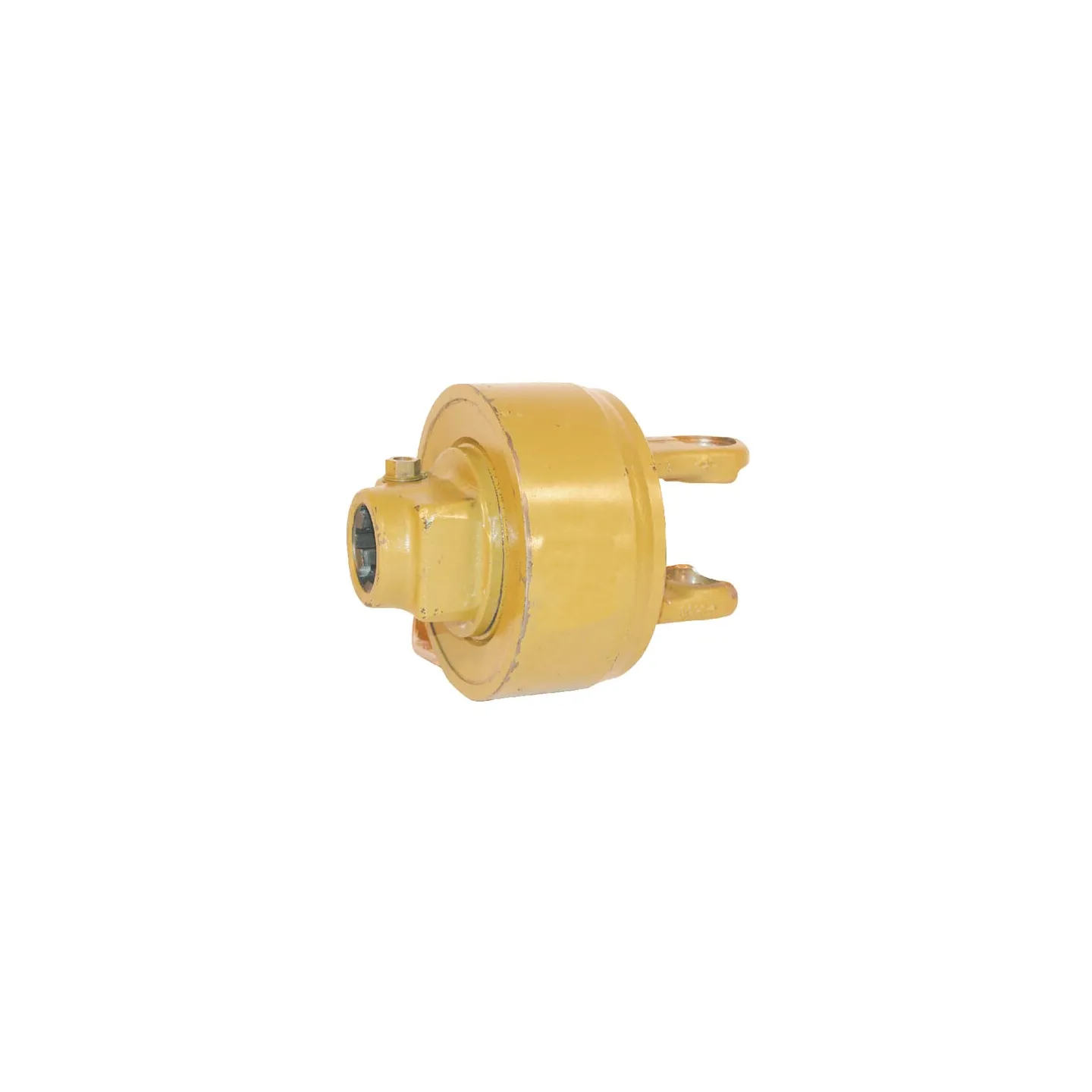

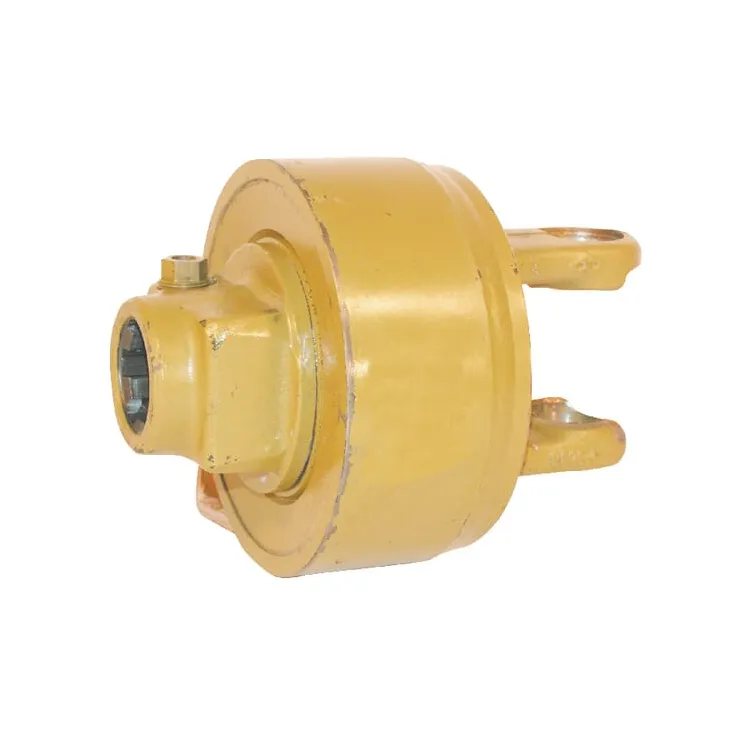

Izciļņa sajūgs K64/22R 5911643180 Walterscheid 1135455
search
  • Izciļņa sajūgs K64/22R 5911643180 Walterscheid 1135455

Izciļņa sajūgs K64/22R 5911643180 1135455

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
1 545,09 €
AR PVN
Pēc pieprasījuma
Izciļņa sajūgs K64/22R 5911643180 Walterscheid 1135455
Uz pasūtījumu

67187

Part number
5911643180
EAN
Unit
Each
Long description
  • Cam clutches K64 Series
  • Series includes K64/12, K64/22, K64/24
Details
  • Drive is interrupted when overloaded
  • Switches on automatically at low speed
Pros
  • 1 direction of rotation
  • Protection of the drive train
  • No time loss due to coupling repair
Product details
  • Dropping the rpm allows the torque to build up in a pulsating way
  • Drive stops when overloaded
  • Automatically switches on with low rpm
Application range
  • Round baler
  • Silage wagon
  • Rotary harrow
  • Shredder adapter
Properties
1 direction of rotation
Technical info
Torque can be set to pulsing by reducing the speed
Benefits
  • Drive protection
  • No time is lost by restoring torque
Clutch type code
K64/22R
Connection locking type
Clamp cone
Outside connection diameter
  • 1-3/4 Inch
  • 1.75 Inch
Connection number of splines/grooves
6
Shaft size code
  • W2400
  • P400
Max. rotation speed
1000 r/min
Max static torque
1800 N·m
Cross cap diameter
32 mm
Cross length
86 mm
Outside diameter
168 mm
Original number equivalent
1135455
Suitable for machine/vehicle brand
n/a
  • Citi kodi
    1135455
