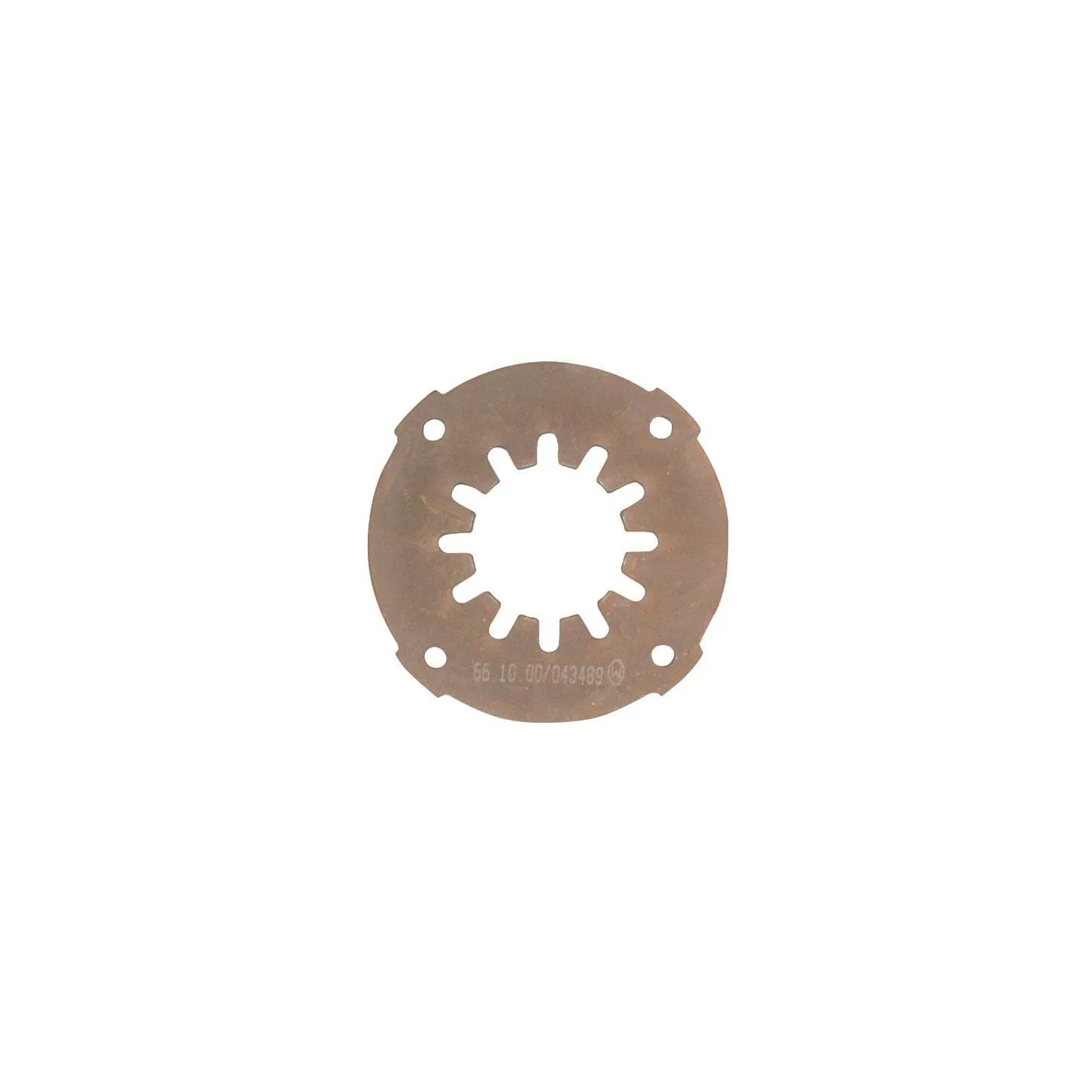

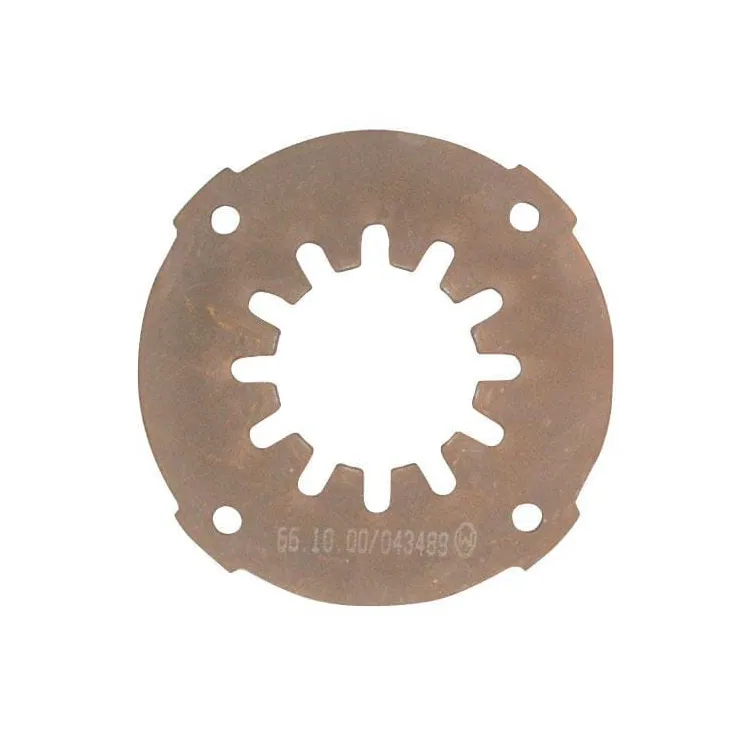

Belleville atspere 3,5 mm 661000

Name: Belleville atspere 3,5 mm 661000
Brand: Walterscheid
SKU: 661000
Price: 57.46 EUR
Availability: InStock

Apmaksas iespējas

57,46 €

AR PVN

4-5 Darba dienas

Belleville atspere 3,5 mm 661000 Walterscheid

IR NOLIKTAVĀ

ID: 67278

Apraksts

Part number	661000
EAN	8435194012379
Unit	Each
Properties	Springs used for each clutch in relation to the torque: Disc clutch type K92: 66.09.00 + 66.16.00 = 55 daNm 66.09.00 + 66.09.00 = 65 daNm 66.09.00 + 66.10.00 = 75 daNm 66.10.00 + 66.10.00 = 90 daNm 66.10.00 + 66.10.01 = 100 daNm Disc clutch type K92/4: 66.16.01 + 66.16.01 = 65 daNm 66.16.01 + 66.16.00 = 75 daNm 66.16.01 + 66.09.02 = 80 daNm 66.16.00 + 66.09.00 = 95 daNm 66.09.02 + 66.09.00 = 105 daNm 66.10.00 + 66.16.00 = 120 daNm 66.09.02 + 66.10.00 = 135 daNm 66.09.00 + 66.10.00 = 150 daNm
Inside diameter	63 mm
Outside diameter	152 mm
Thickness	3.5 mm
Original number equivalent	1043489
