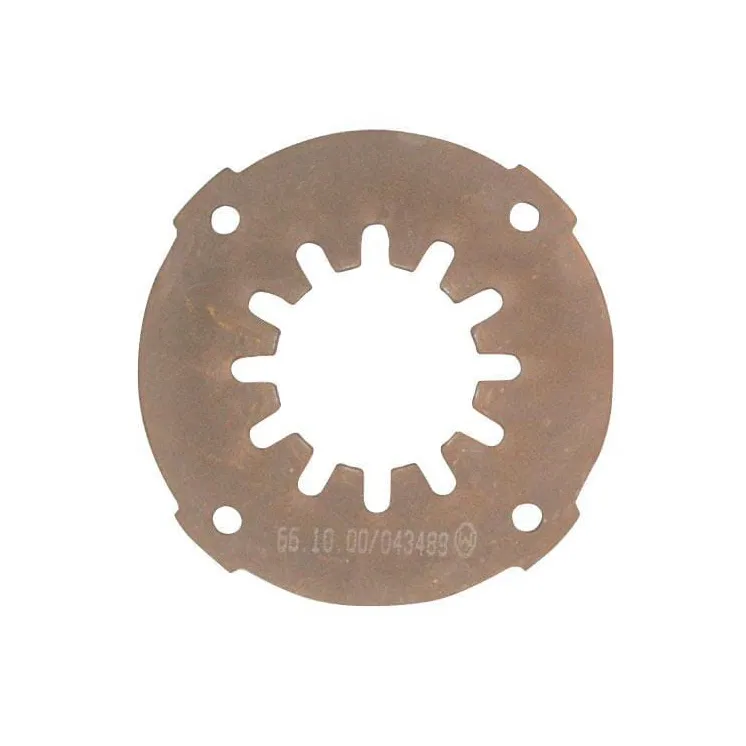

Belleville atspere 3 mm 660902

Name: Belleville atspere 3 mm 660902
Brand: Walterscheid
SKU: 660902
Price: 60.03 EUR
Availability: BackOrder

Apmaksas iespējas

60,03 €

AR PVN

Pēc pieprasījuma

Belleville atspere 3 mm 660902 Walterscheid

Uz pasūtījumu

ID: 67281

Apraksts

Part number	660902
EAN	8435194013949
Unit	Each
Properties	Springs used for each clutch in relation to the torque: Disc clutch type K92: 66.09.00 + 66.16.00 = 55 daNm 66.09.00 + 66.09.00 = 65 daNm 66.09.00 + 66.10.00 = 75 daNm 66.10.00 + 66.10.00 = 90 daNm 66.10.00 + 66.10.01 = 100 daNm Disc clutch type K92/4: 66.16.01 + 66.16.01 = 65 daNm 66.16.01 + 66.16.00 = 75 daNm 66.16.01 + 66.09.02 = 80 daNm 66.16.00 + 66.09.00 = 95 daNm 66.09.02 + 66.09.00 = 105 daNm 66.10.00 + 66.16.00 = 120 daNm 66.09.02 + 66.10.00 = 135 daNm 66.09.00 + 66.10.00 = 150 daNm
Inside diameter	63 mm
Outside diameter	152 mm
Thickness	3 mm
Original number equivalent	1088193
