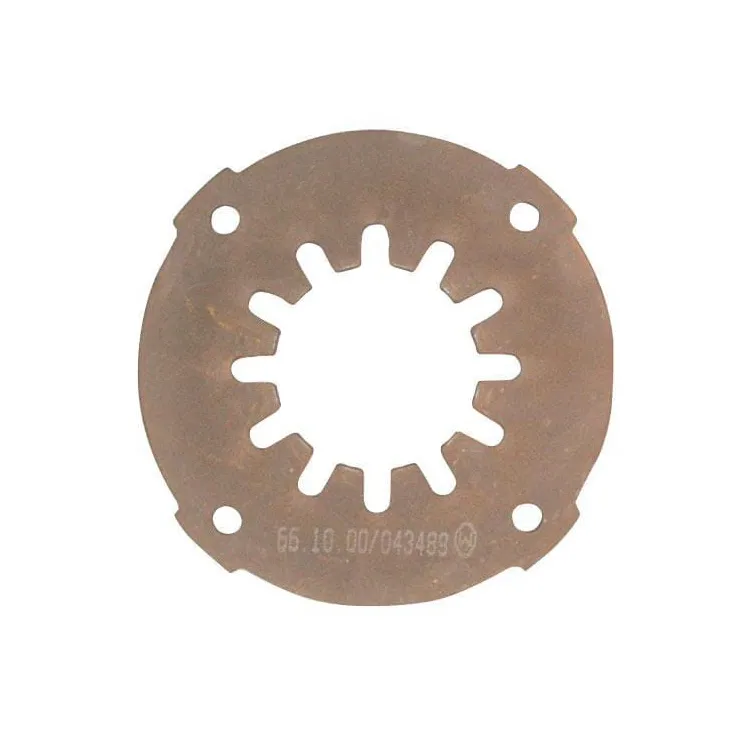

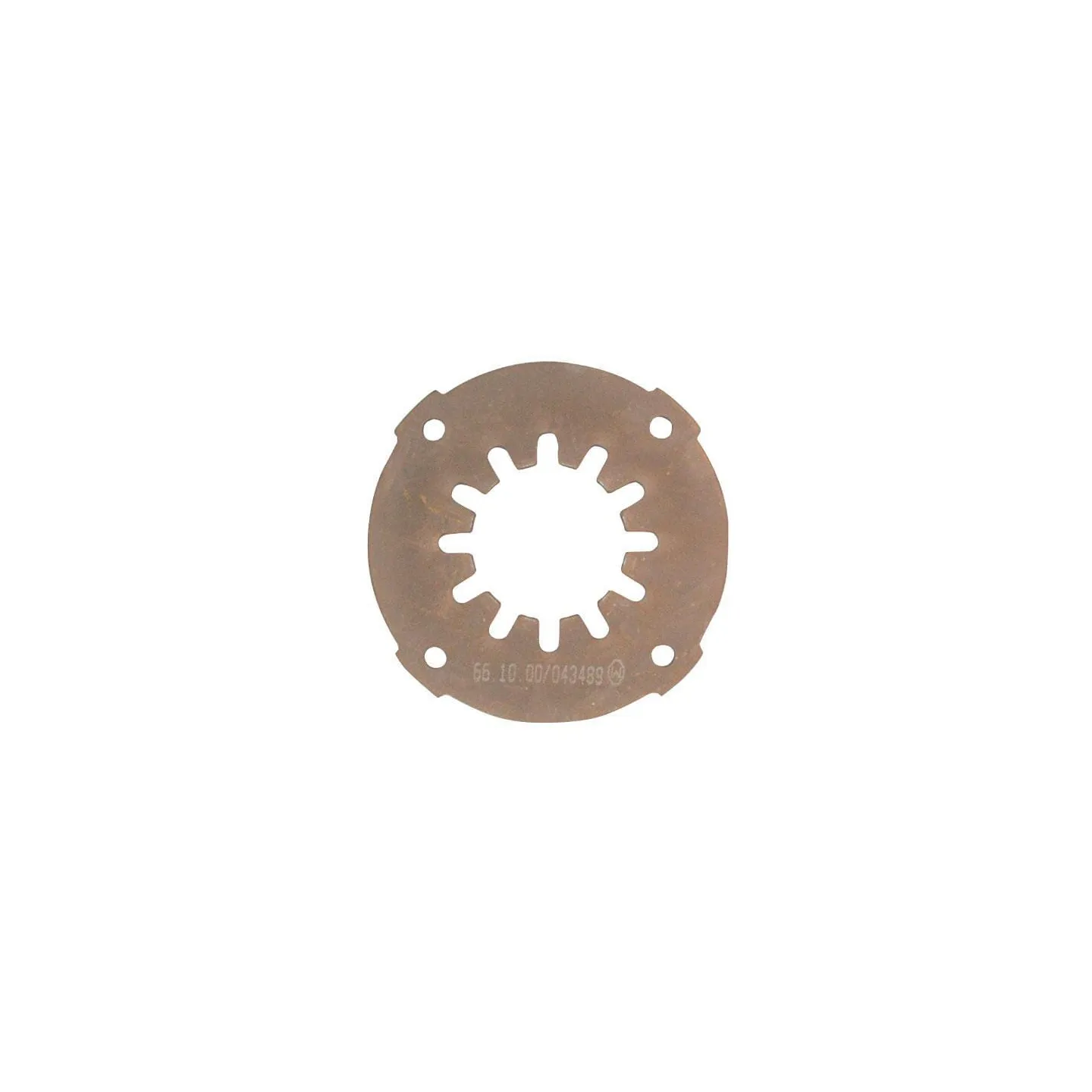

Belleville atspere 2,6 mm 661601

Name: Belleville atspere 2,6 mm 661601
Brand: Walterscheid
SKU: 661601
Price: 54.27 EUR
Availability: InStock

Apmaksas iespējas

54,27 €

AR PVN

4-5 Darba dienas

Belleville atspere 2,6 mm 661601 Walterscheid

IR NOLIKTAVĀ

ID: 67293

Apraksts

Part number	661601
EAN	8432970132023
Unit	Each
Properties	Springs used for each clutch in relation to the torque: Disc clutch type K92: 66.09.00 + 66.16.00 = 55 daNm 66.09.00 + 66.09.00 = 65 daNm 66.09.00 + 66.10.00 = 75 daNm 66.10.00 + 66.10.00 = 90 daNm 66.10.00 + 66.10.01 = 100 daNm Disc clutch type K92/4: 66.16.01 + 66.16.01 = 65 daNm 66.16.01 + 66.16.00 = 75 daNm 66.16.01 + 66.09.02 = 80 daNm 66.16.00 + 66.09.00 = 95 daNm 66.09.02 + 66.09.00 = 105 daNm 66.10.00 + 66.16.00 = 120 daNm 66.09.02 + 66.10.00 = 135 daNm 66.09.00 + 66.10.00 = 150 daNm
Inside diameter	63 mm
Outside diameter	152 mm
Thickness	2.6 mm
Original number equivalent	1102493
