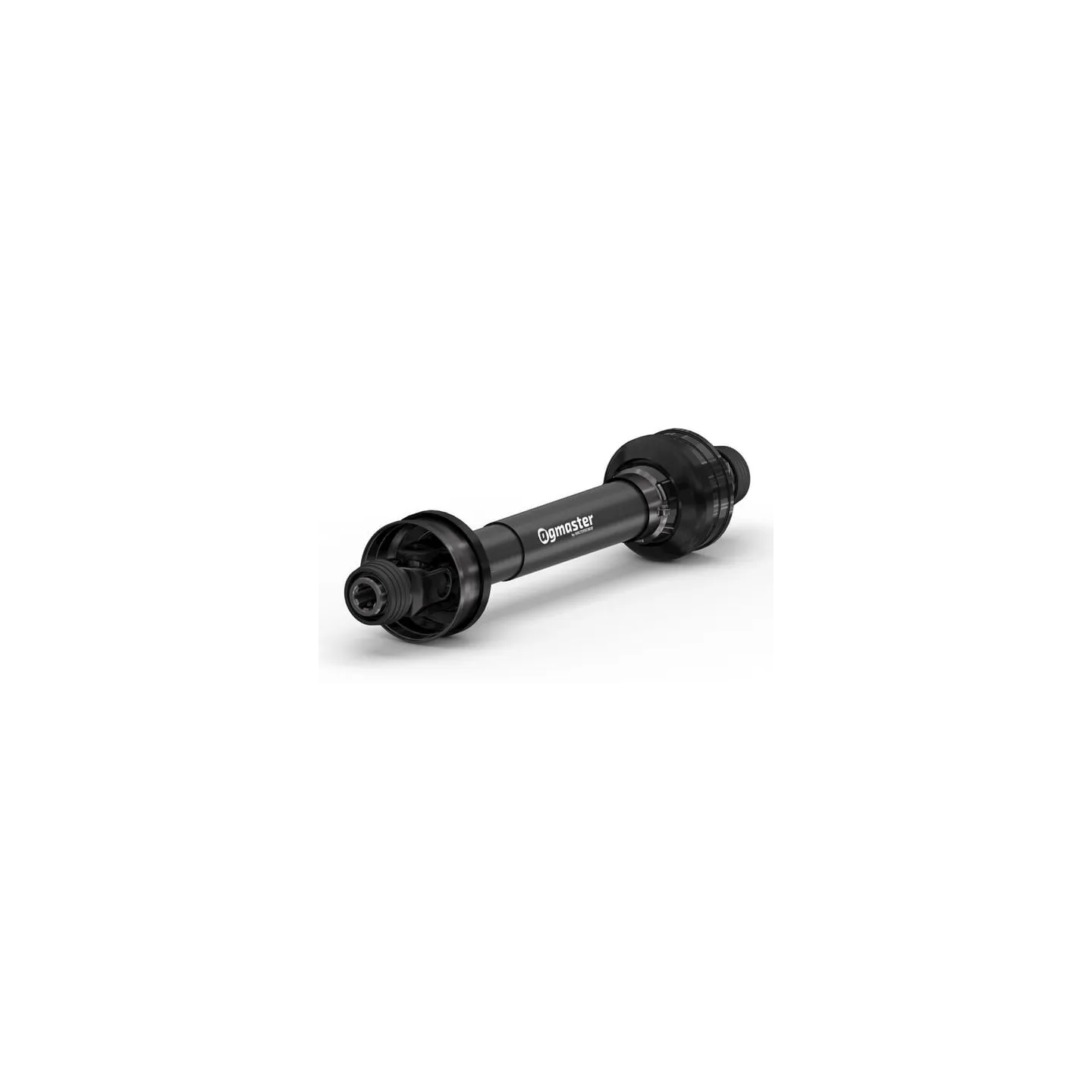

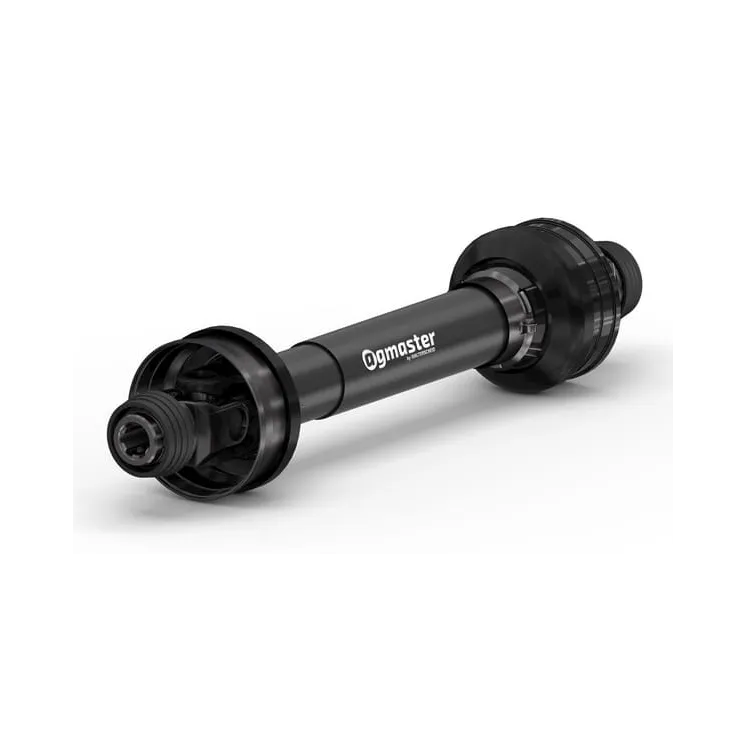

Kardānvārpsta AGM1 garums 1210 AGM11210 8372861

Name: Kardānvārpsta AGM1 garums 1210 AGM11210 8372861
Brand: Walterscheid
SKU: AGM11210
Price: 255.88 EUR
Availability: InStock

Apmaksas iespējas

255,88 €

AR PVN

4-5 Darba dienas

Kardānvārpsta AGM1 garums 1210 AGM11210 Walterscheid 8372861

IR NOLIKTAVĀ

ID: 68388

Apraksts

Part number	AGM11210
EAN
Unit	Each
Connection outside diameter by tractor side	1-3/8 Inch
Connection number of splines/grooves by tractor side	6
Locking type by tractor side	Collar lock
Attachment tractor side	Quick disconnect yoke
Connection outside diameter by machine side	1-3/8 Inch
Connection number of splines/grooves by machine side	6
Locking type by machine side	Collar lock
Attachment machine side	Quick disconnect yoke
Length	1210 mm 1300 mm
Cross joint bush diameter by tractor side	22 mm
Cross joint length by tractor side	55 mm
Cross joint bush diameter by machine side	22 mm
Cross joint length by machine side	55 mm
Clutch type	n/a
Outer tube profile	Oa
Outer tube wall thickness	2.8 mm
Outer tube large outside diameter	39 mm
Inner tube profile	OOcH
Inner tube wall thickness	3.4 mm
Inner tube large outside diameter	31 mm
Profile tube shape	Lemon
Original number equivalent	8372861
