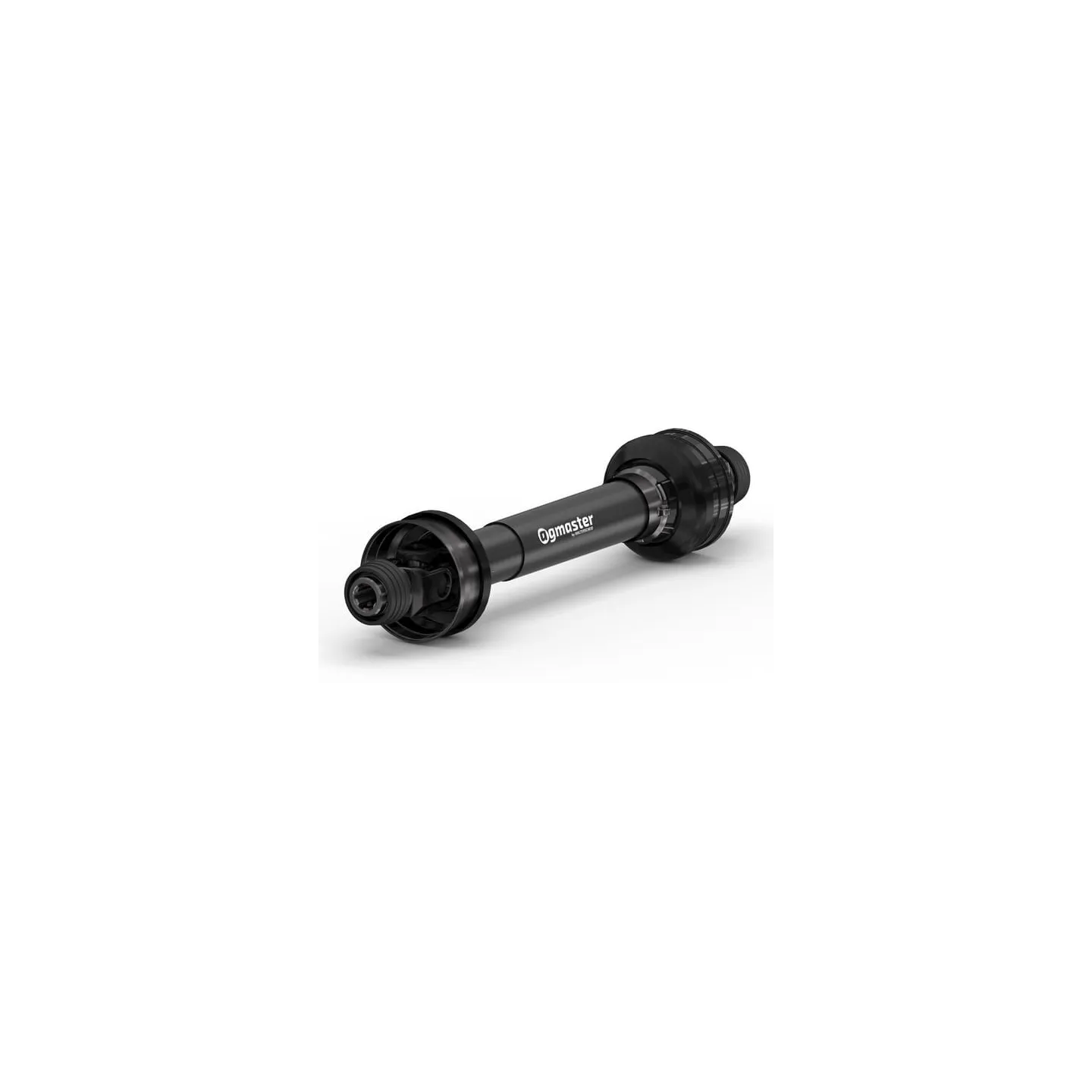

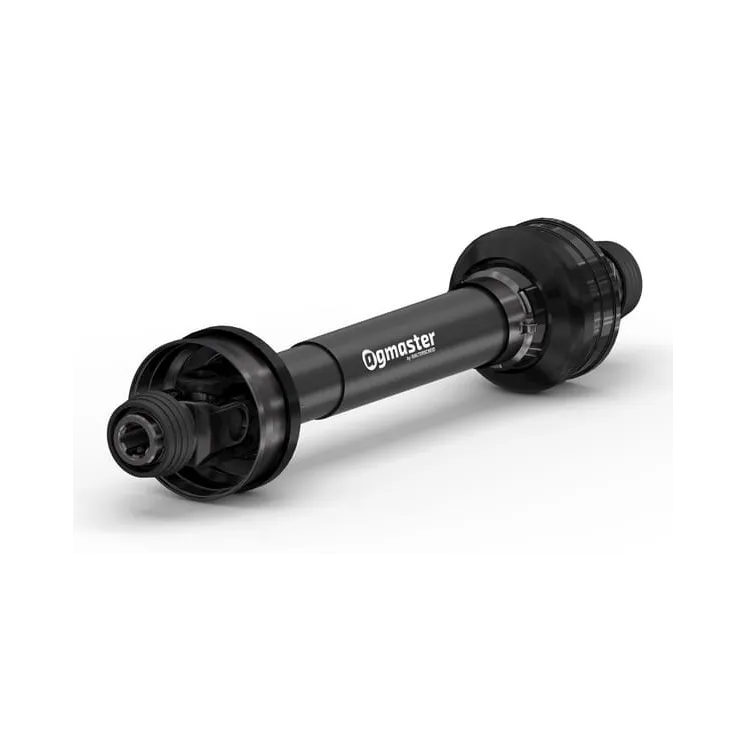

Kardānvārpstas AGM2 garums 1210 AGM21210 8372862

Name: Kardānvārpstas AGM2 garums 1210 AGM21210 8372862
Brand: Walterscheid
SKU: AGM21210
Price: 256.54 EUR
Availability: InStock

Apmaksas iespējas

256,54 €

AR PVN

4-5 Darba dienas

Kardānvārpstas AGM2 garums 1210 AGM21210 Walterscheid 8372862

IR NOLIKTAVĀ

ID: 68399

Apraksts

Part number	AGM21210
EAN
Unit	Each
Connection outside diameter by tractor side	1-3/8 Inch
Connection number of splines/grooves by tractor side	6
Locking type by tractor side	Collar lock
Attachment tractor side	Quick disconnect yoke
Connection outside diameter by machine side	1-3/8 Inch
Connection number of splines/grooves by machine side	6
Locking type by machine side	Collar lock
Attachment machine side	Quick disconnect yoke
Length	1210 mm 1200 mm
Cross joint bush diameter by tractor side	24 mm
Cross joint length by tractor side	61 mm
Cross joint bush diameter by machine side	24 mm
Cross joint length by machine side	61 mm
Clutch type	n/a
Outer tube profile	1
Outer tube wall thickness	3 mm
Outer tube large outside diameter	48 mm
Inner tube profile	Ov
Inner tube wall thickness	4 mm
Inner tube large outside diameter	40 mm
Profile tube shape	Lemon
Original number equivalent	8372862
