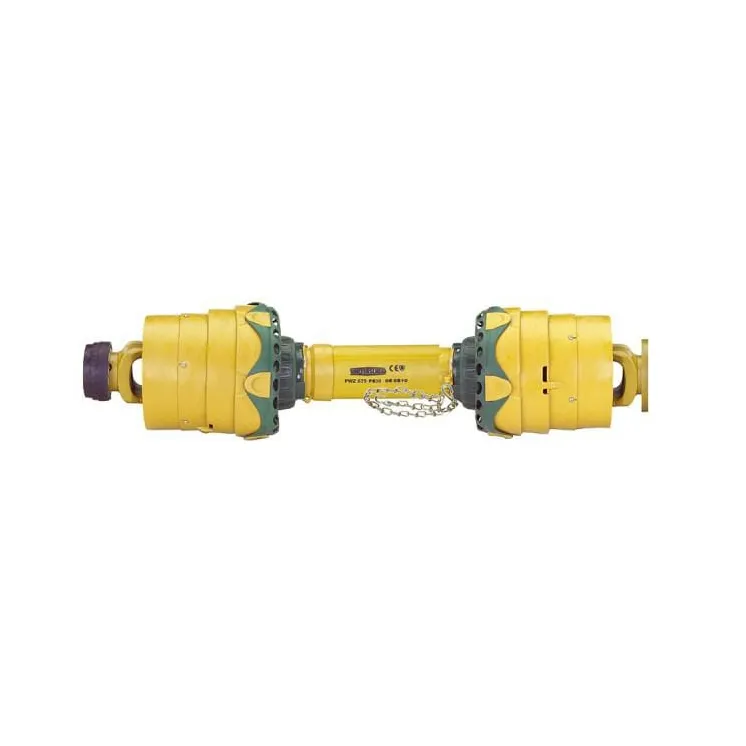

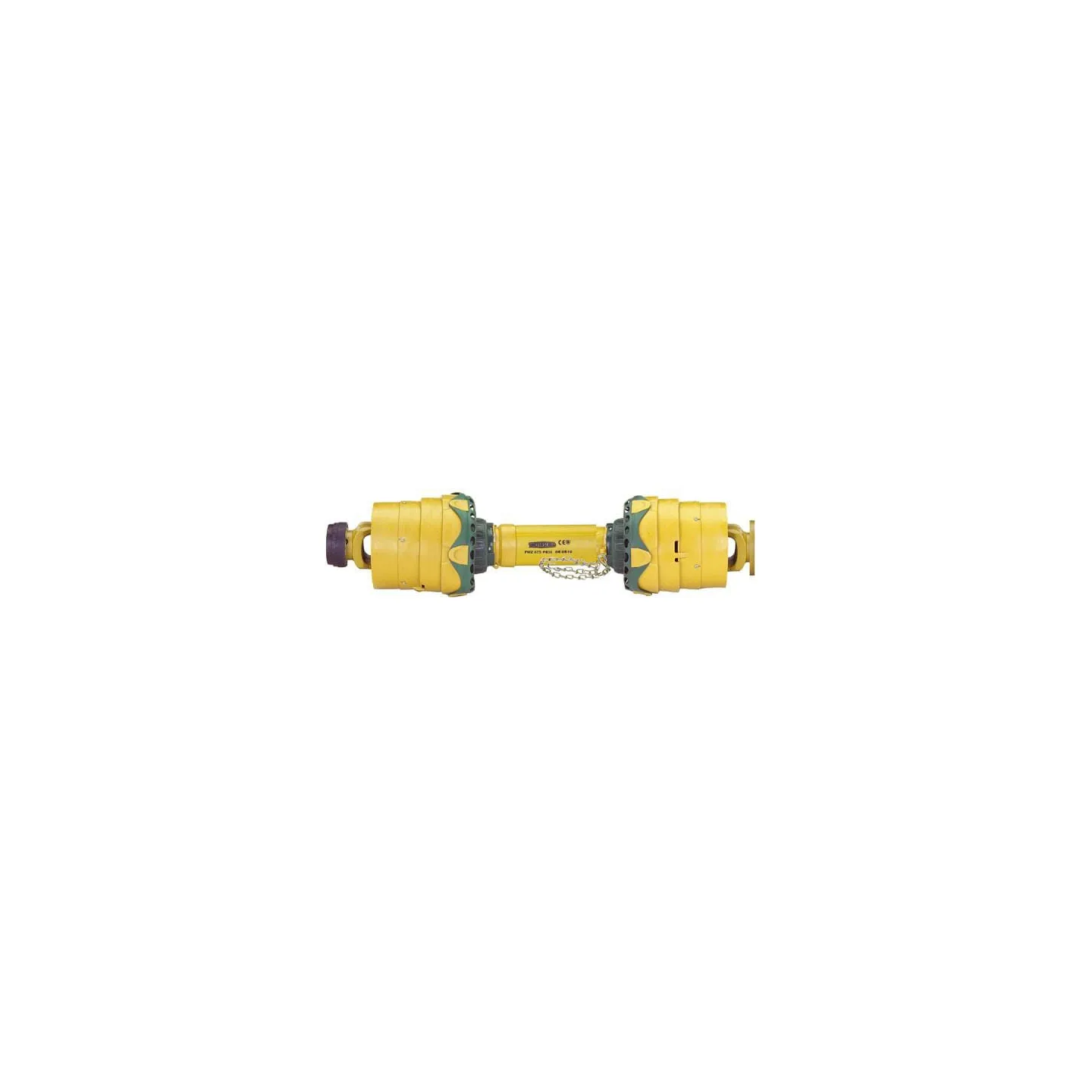

Platleņķa kardānvārpsta PWZ675141013420FG Walterscheid 1113407

Platleņķa kardānvārpsta PWZ675141013420FG 1113407

Name: Platleņķa kardānvārpsta PWZ675141013420FG 1113407
Brand: Walterscheid
SKU: PWZ675141013420FG
Price: 4891.99 EUR
Availability: BackOrder

Apmaksas iespējas

4 891,99 €

AR PVN

Pēc pieprasījuma

Platleņķa kardānvārpsta PWZ675141013420FG Walterscheid 1113407

Uz pasūtījumu

ID: 68630

Apraksts

Part number	PWZ675141013420FG
EAN
Unit	Each
Connection outside diameter by tractor side	1-3/4 Inch
Connection number of splines/grooves by tractor side	6
Locking type by tractor side	Automatic collar lock
Attachment tractor side	Quick disconnect yoke
Locking type by machine side	Flange
Attachment machine side	Flange yoke
Size code	PWZ 675
Length	1410 mm
Power 540 rpm	103 kW
Power 1000 rpm	158 kW
Cross joint bush diameter by tractor side - longer part	36 mm
Cross joint bush diameter by tractor side	42 mm
Cross joint length by tractor side - longer part	124 mm
Cross joint length by tractor side	104 mm
Cross joint bush diameter by machine side - longer part	36 mm
Cross joint bush diameter by machine side	42 mm
Cross joint length by machine side - longer part	124 mm
Cross joint length by machine side	104 mm
Clutch type	n/a
Outer tube profile	S5
Outer tube wall thickness	4.5 mm
Outer tube large outside diameter	61 mm
Inner tube profile	S4GA
Inner tube large outside diameter	51 mm
Profile tube shape	Star
Max static torque	7800 N·m
Protection type	PG25
Original number equivalent	1113407
