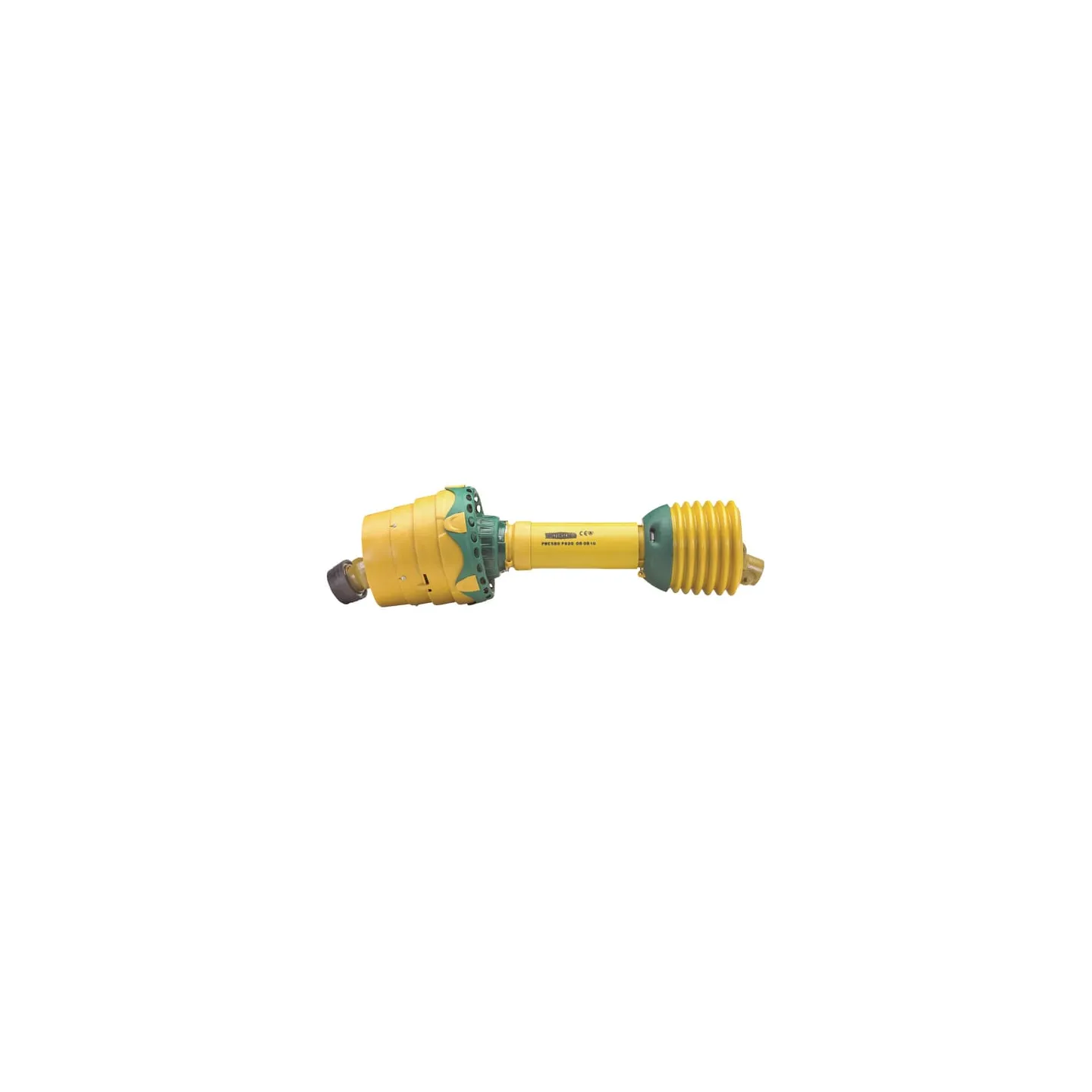

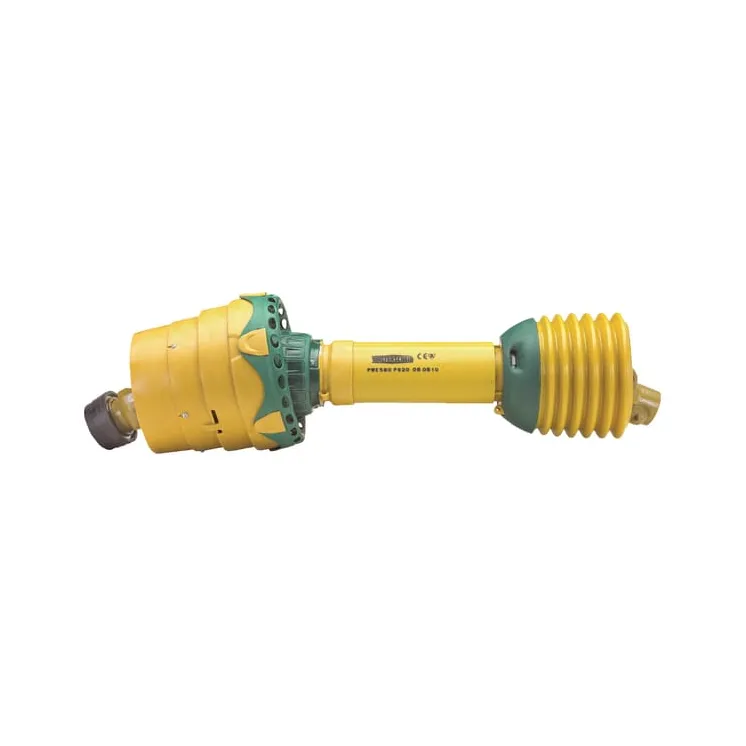

Platleņķa kardānvārpsta PWE67510105610141

Name: Platleņķa kardānvārpsta PWE67510105610141
Brand: Walterscheid
SKU: PWE67510105610141
Price: 3638.65 EUR
Availability: BackOrder

Apmaksas iespējas

3 638,65 €

AR PVN

Pēc pieprasījuma

Platleņķa kardānvārpsta PWE67510105610141 Walterscheid

Uz pasūtījumu

ID: 68638

Apraksts

Part number	PWE67510105610141
EAN
Unit	Each
Connection outside diameter by tractor side	1-3/4 Inch
Connection number of splines/grooves by tractor side	20
Locking type by tractor side	Automatic collar lock
Attachment tractor side	Quick disconnect yoke
Connection outside diameter by machine side	1-3/4 Inch
Connection number of splines/grooves by machine side	6
Locking type by machine side	Clamp bridge
Attachment machine side	Overrunning clutch
Size code	PWE 675
Length	1010 mm
Power 540 rpm	103 kW
Power 1000 rpm	158 kW
Cross joint bush diameter by tractor side - longer part	36 mm
Cross joint bush diameter by tractor side	42 mm
Cross joint length by tractor side - longer part	124 mm
Cross joint length by tractor side	104 mm
Cross joint bush diameter by machine side	42 mm
Cross joint length by machine side	104 mm
Clutch type	F5/2R
Outer tube profile	S6H
Outer tube wall thickness	5 mm
Outer tube large outside diameter	71.5 mm
Inner tube profile	S5H
Inner tube wall thickness	4.5 mm
Inner tube large outside diameter	61 mm
Profile tube shape	Star
Max static torque	7800 N·m
Protection type	PG25
Original number equivalent	1602568
