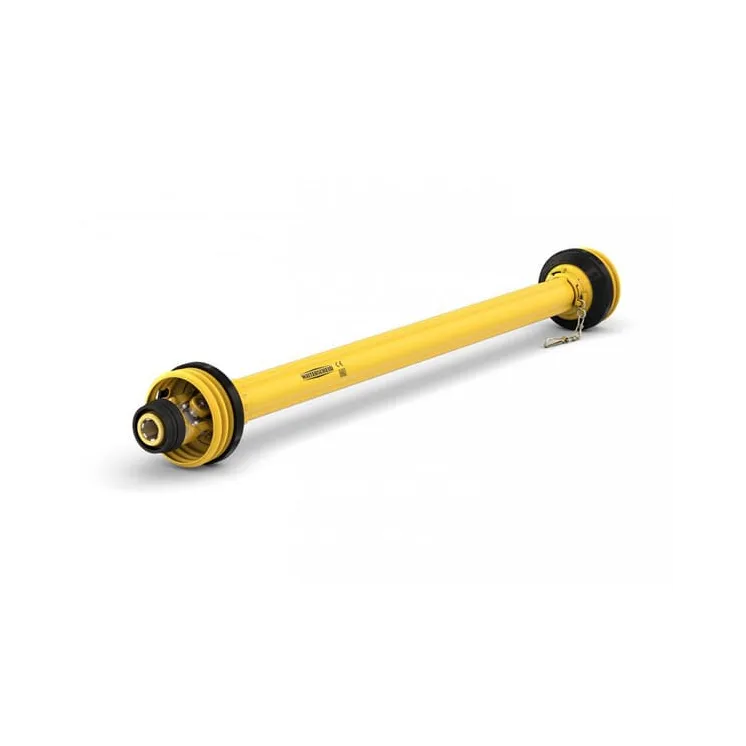

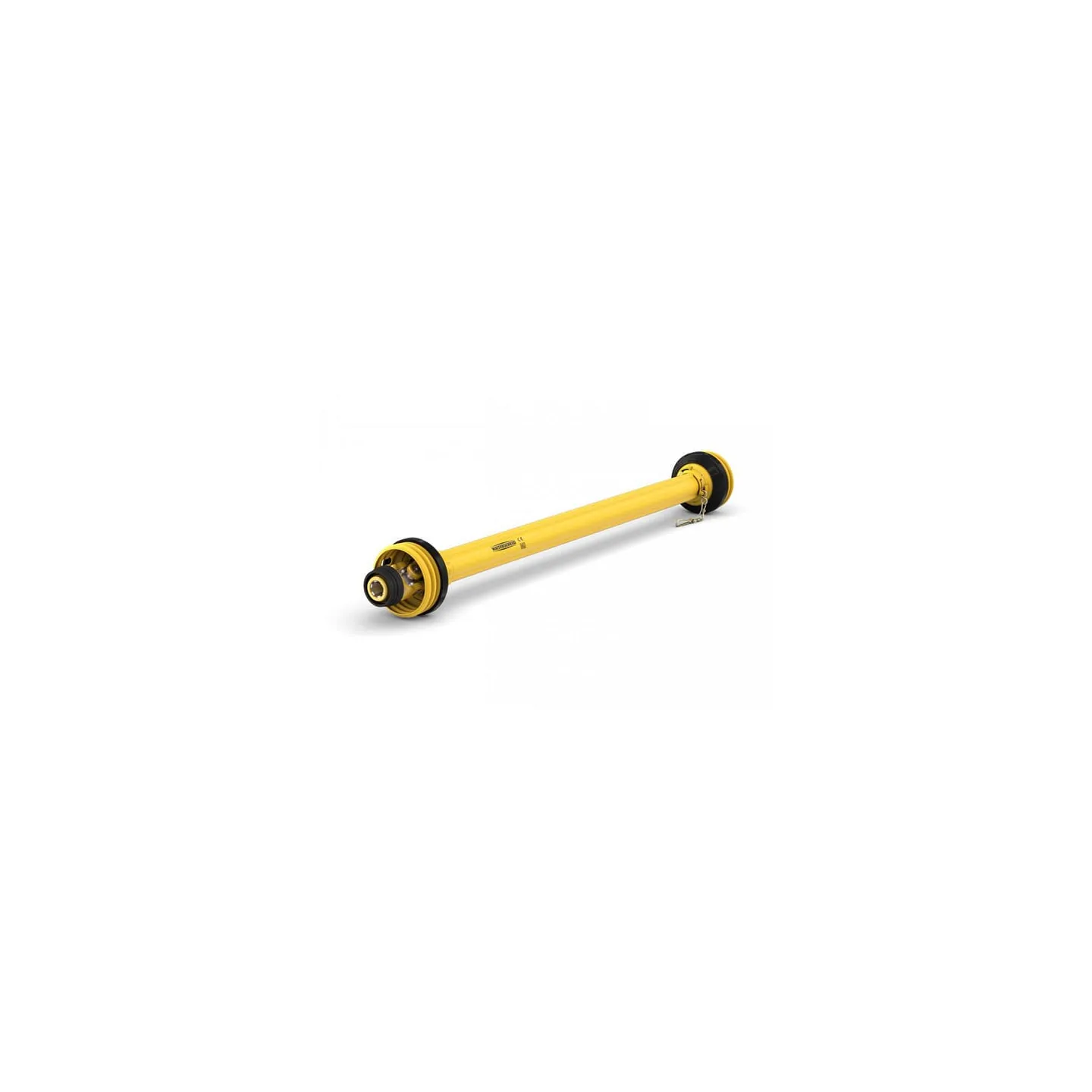

Kardānvārpsta W2300 L: 860mm, W2300860 VTE1115

Name: Kardānvārpsta W2300 L: 860mm, W2300860 VTE1115
Brand: Walterscheid
SKU: W2300860
Price: 478.86 EUR
Availability: BackOrder

Apmaksas iespējas

478,86 €

AR PVN

Pēc pieprasījuma

Kardānvārpsta W2300 L: 860mm, W2300860 Walterscheid VTE1115

Uz pasūtījumu

ID: 69911

Apraksts

Part number	W2300860
EAN	8435194029698
Unit	Each
Connection outside diameter by tractor side	1-3/8 Inch
Connection number of splines/grooves by tractor side	6
Locking type by tractor side	Collar lock
Attachment tractor side	Quick disconnect yoke
Connection outside diameter by machine side	1-3/8 Inch
Connection number of splines/grooves by machine side	6
Locking type by machine side	Collar lock
Attachment machine side	Quick disconnect yoke
Size code	W2300
Length	860 mm
Power 540 rpm	28 kW
Power 1000 rpm	44 kW
Cross joint bush diameter by tractor side	27 mm
Cross joint length by tractor side	75 mm
Cross joint bush diameter by machine side	27 mm
Cross joint length by machine side	75 mm
Clutch type	n/a
Outer tube profile	1
Outer tube wall thickness	3 mm
Outer tube large outside diameter	48 mm
Inner tube profile	Ov
Inner tube wall thickness	4 mm
Inner tube large outside diameter	40 mm
Profile tube shape	Lemon
Max static torque	2500 N·m
Protection type	ST15
Original number equivalent	1800049
