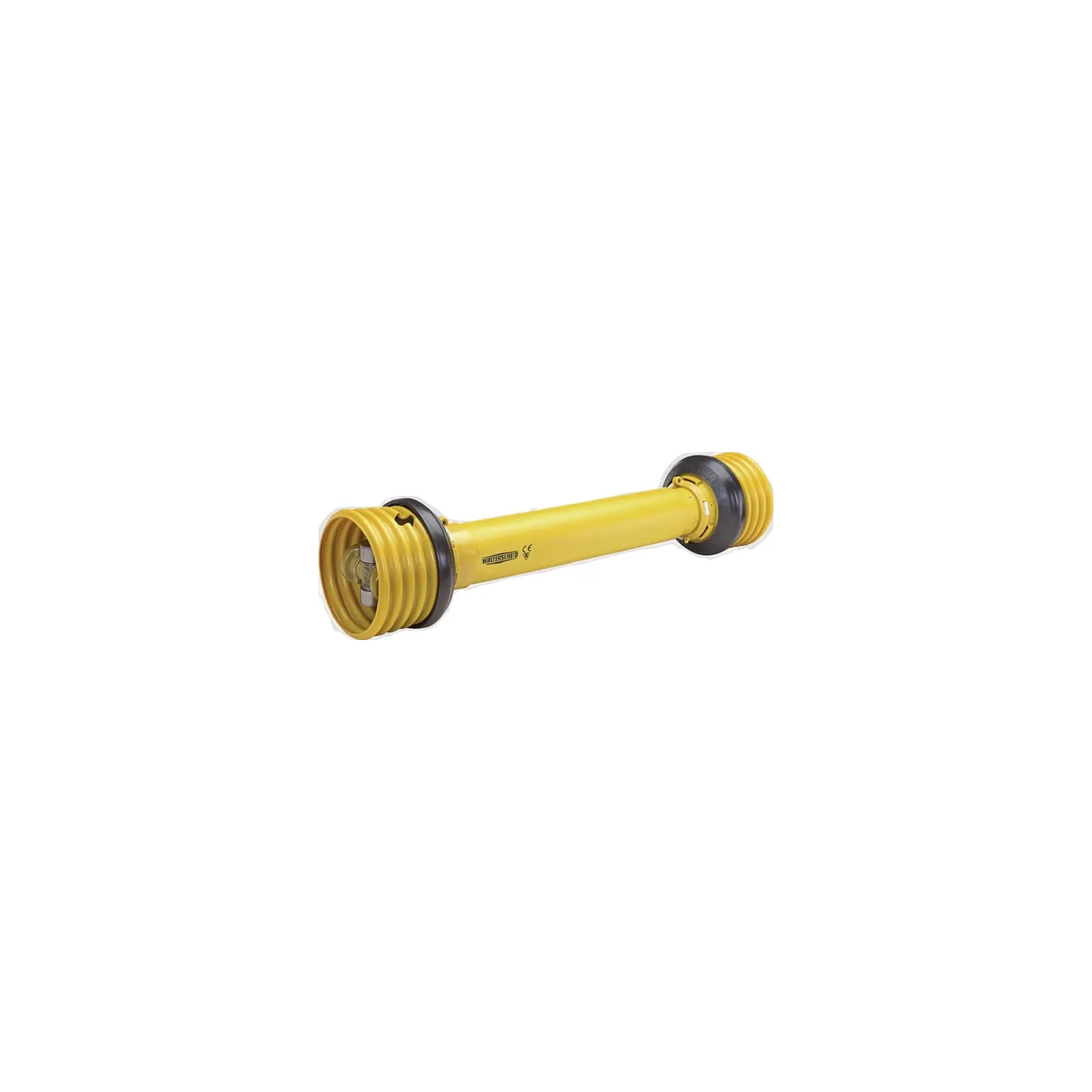

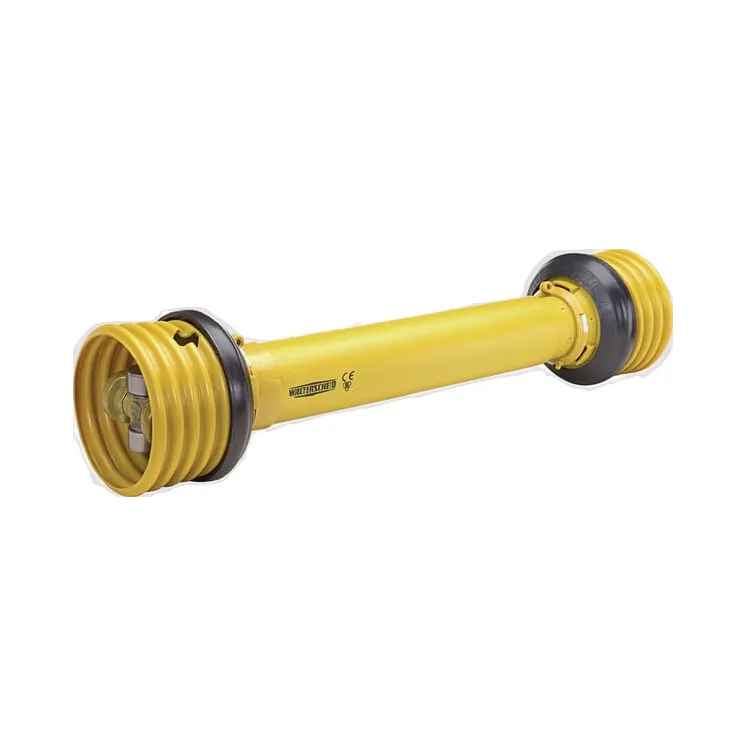

Kardānvārpsta bez jūgiem W2200 L: 1210mm, W220012100OG Walterscheid 1113122

Kardānvārpsta bez jūgiem W2200 L: 1210mm, W220012100OG 1113122

Name: Kardānvārpsta bez jūgiem W2200 L: 1210mm, W220012100OG 1113122
Brand: Walterscheid
SKU: W220012100OG
Price: 350.66 EUR
Availability: InStock

Apmaksas iespējas

350,66 €

AR PVN

4-5 Darba dienas

Kardānvārpsta bez jūgiem W2200 L: 1210mm, W220012100OG Walterscheid 1113122

IR NOLIKTAVĀ

ID: 69913

Apraksts

Part number	W220012100OG
EAN
Unit	Each
Long description	Series W2300 without yokes
Application range	Mowers Harvesters Seeders
Properties	Lubrication frequency from 50 to 100 hours Fulfils EC 89/392 EEC requirements Complies with EN12965 safety standard CE marking available
Technical info	See Walterscheid instruction manual Max. dynamic capacity 540 rpm: 28 kW, 500 Nm Max. dynamic capacity 1,000 rpm: 44 kW, 415 Nm Values at working angle 5° and service life 1000 hours LZ = slid-in length in mm, from intersection to intersection
Consists of	Pto shaft with guard tube Declaration of conformity Instruction manual Delivery without yokes
Locking type by tractor side	Cross
Attachment tractor side	n/a
Locking type by machine side	Cross
Attachment machine side	n/a
Size code	W2200
Length	1210 mm
Power 540 rpm	20 kW
Power 1000 rpm	31 kW
Cross joint bush diameter by tractor side	24 mm
Cross joint length by tractor side	61 mm
Cross joint bush diameter by machine side	24 mm
Cross joint length by machine side	61 mm
Outer tube profile	1
Inner tube profile	Ov
Profile tube shape	Lemon
Max static torque	1550 N·m
Protection type	SD15
Original number equivalent	1800078
Additional info	*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
