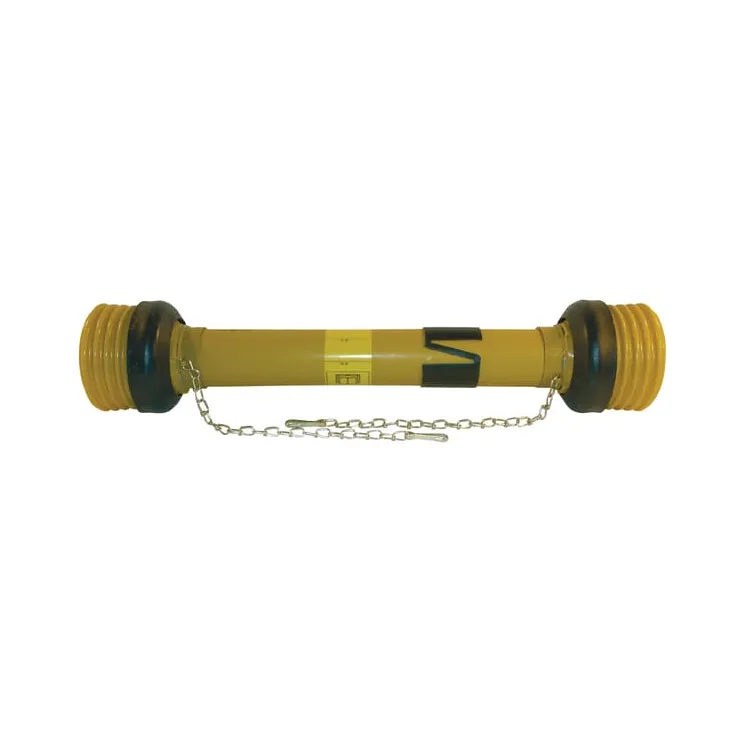

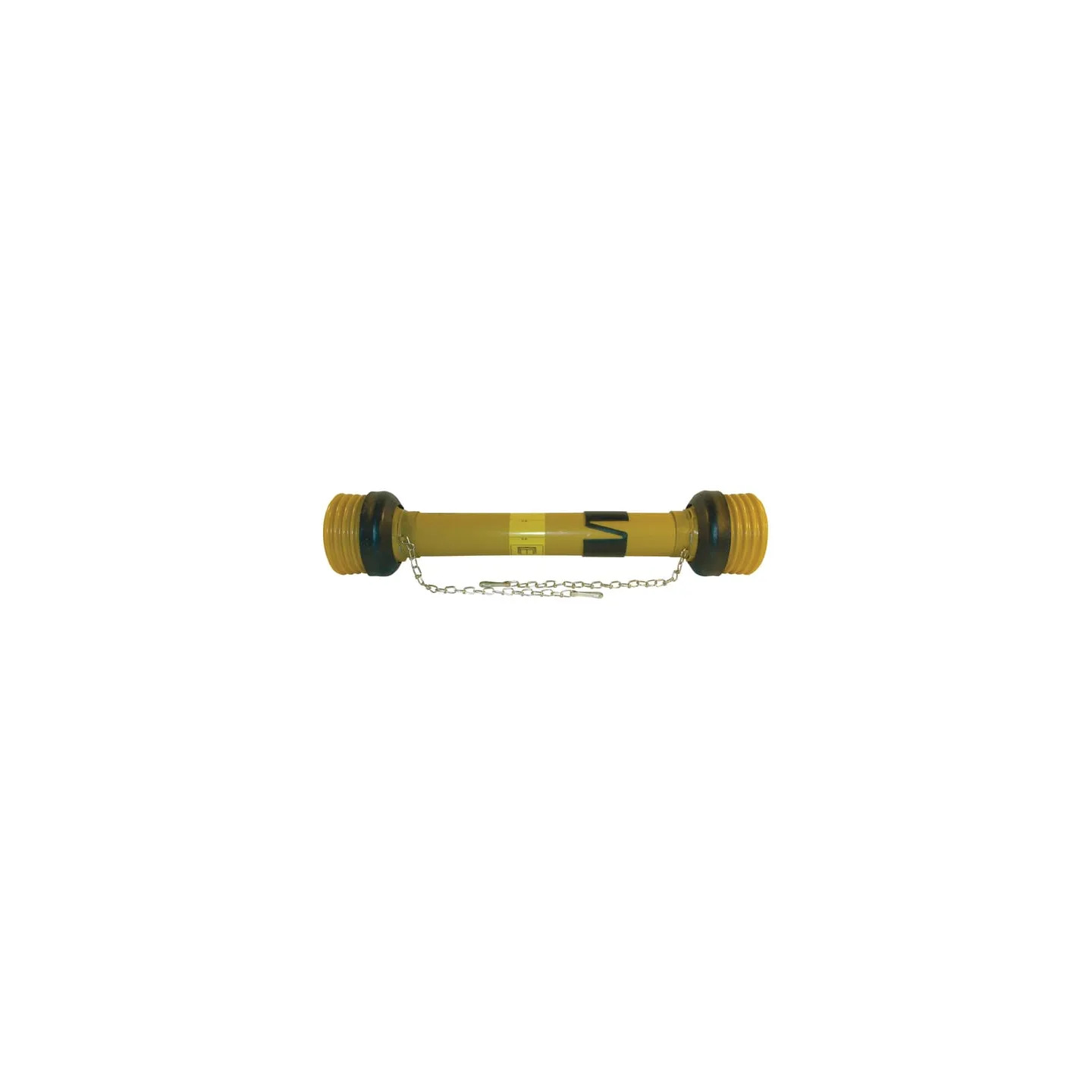

Kardānvārpsta bez jūgiem W2600 L: 1210mm, W26001210OG

Name: Kardānvārpsta bez jūgiem W2600 L: 1210mm, W26001210OG
Brand: Walterscheid
SKU: W26001210OG
Price: 1434.21 EUR
Availability: InStock

Apmaksas iespējas

1 434,21 €

AR PVN

4-5 Darba dienas

Kardānvārpsta bez jūgiem W2600 L: 1210mm, W26001210OG Walterscheid

IR NOLIKTAVĀ

ID: 69916

Apraksts

Part number	W26001210OG
EAN	8435194015660
Unit	Each
Application range	Heavy-duty soil cultivating machinery Wood shredders Stump grinders
Properties	Lubrication frequency from 50 to 100 hours Fulfilling the requirements laid out in EC 89/392 EEC Fulfilling the safety standard EN12965 CE marking available
Technical info	See Walterscheid instruction manual Max. dynamic capacity 540 rpm: 79 kW, 1400 Nm Max. dynamic capacity 1000 rpm: 122 kW, 1165 Nm Values at working angle 5° and service life 1000 hours LZ = slid in length in mm, from intersection to intersection
Consists of	PTO shaft with shielding Declaration of conformity Instruction manual
Size code	W2600
Length	1210 mm
Cross joint bush diameter by tractor side	42 mm
Cross joint length by tractor side	104 mm
Cross joint bush diameter by machine side	42 mm
Cross joint length by machine side	104 mm
Outer tube profile	S6
Inner tube profile	S5H
Max static torque	7800 N·m
Protection type	SD35
Original number equivalent	1113134
Additional info	*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
