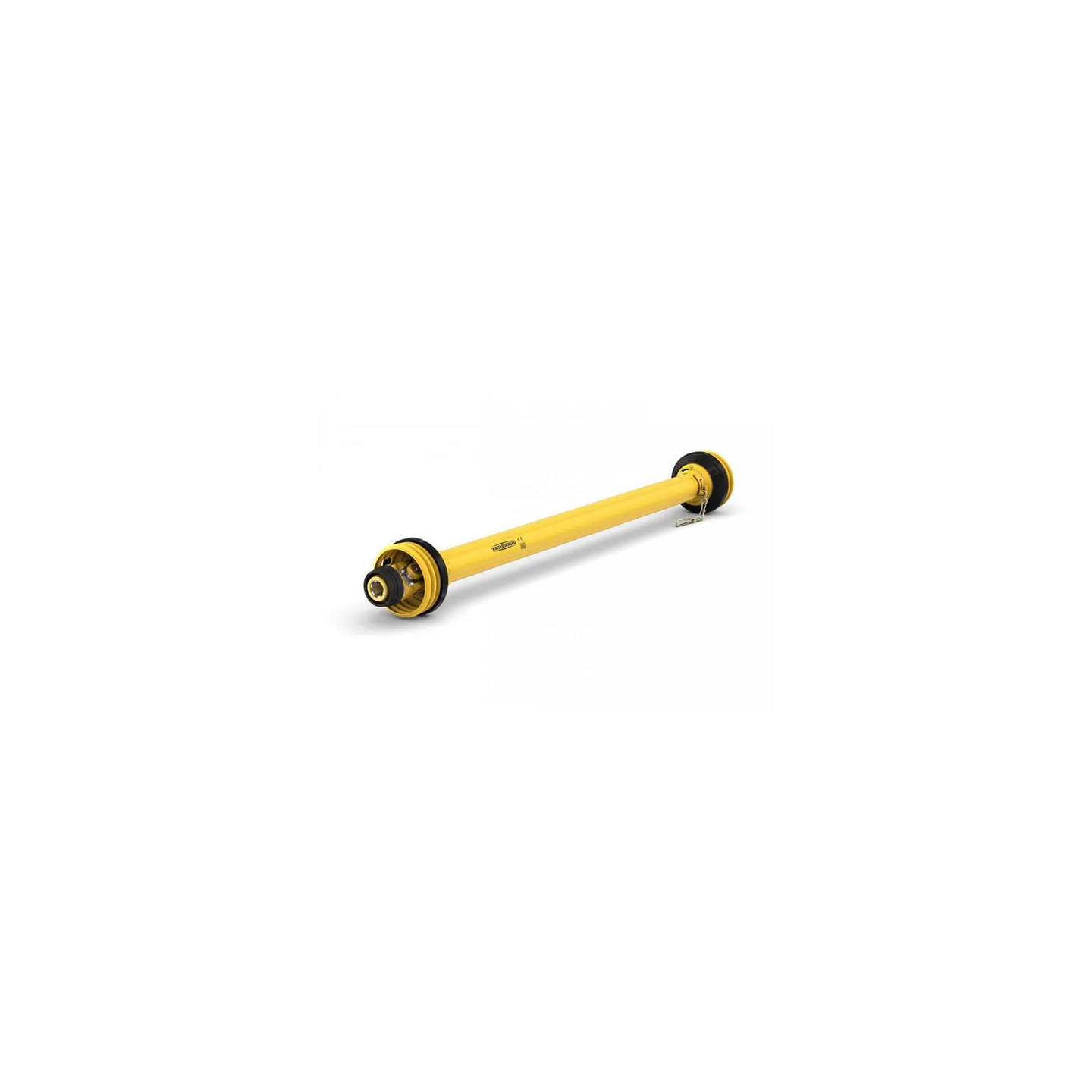

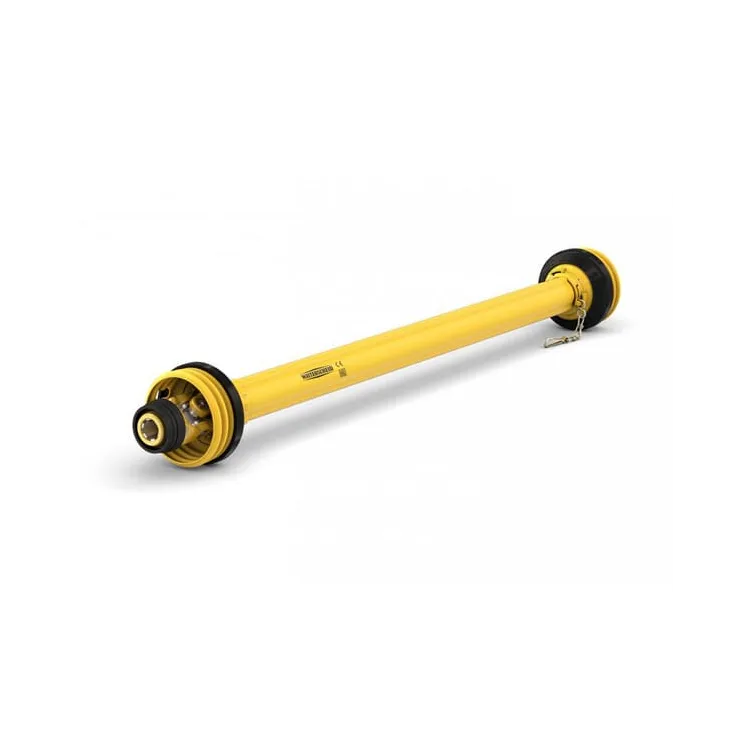

Kardānvārpsta W2100 L: 1210mm, W21001210 Walterscheid VTE1112
search
  • Kardānvārpsta W2100 L: 1210mm, W21001210 Walterscheid VTE1112

Kardānvārpsta W2100 L: 1210mm, W21001210 VTE1112

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
451,11 €
AR PVN
4-5 Darba dienas
Kardānvārpsta W2100 L: 1210mm, W21001210 Walterscheid VTE1112
IR NOLIKTAVĀ

69919

  • Zīmols
    Walterscheid
  • Norāde
    W21001210
  • Pieejamās vispirms
    5 vienības:
  • Stāvoklis
    Jauns
  • Citi kodi
    VTE1112
  • EAN
    8435194030601
Apmaksa
100% Droši maksājumi
Piegāde
Ātri piegādes risinājumi
Preču atgriešana
30 dienu preces atgriešanas iespēja

Komentāri (0)

Šobrid vēl nav klientu atsauksmju.
Part number
W21001210
EAN8435194030601
Unit
Each
Long description
PTO drive shafts complete standard series W 2100
Application range
  • Small crop sprayers
  • Tedders
  • Windrowers
Properties
  • Tension side 1-3/8" (6) shaft collar kit
  • Machine side 1-3/8" (6) slide pin
  • Lubrication frequency from 50 to 100 hours
  • Fulfilling the requirements laid out in EC 89/392 EEC
  • Fulfilling the safety standard EN12965
  • CE marking available
Technical info
  • See Walterscheid instruction manual
  • Max. dynamic capacity 540 rpm: 12 kW, 210 Nm
  • Max. dynamic capacity 1000 rpm: 18 kW, 175 Nm
  • Values at working angle 5° and service life 1000 hours
  • LZ = slid in length in mm, from intersection to intersection
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
Consists of
  • PTO shaft with shielding
  • Declaration of conformity
  • Instruction manual
Locking type by tractor side
Collar lock
Attachment tractor side
Quick disconnect yoke
Connection outside diameter by machine side
1-3/8 Inch
Connection number of splines/grooves by machine side
6
Locking type by machine side
Collar lock
Attachment machine side
Quick disconnect yoke
Size code
W2100
Length
1210 mm
Power 540 rpm
12 kW
Power 1000 rpm
18 kW
Cross joint bush diameter by tractor side
22 mm
Cross joint length by tractor side
55 mm
Cross joint bush diameter by machine side
22 mm
Cross joint length by machine side
55 mm
Clutch type
n/a
Outer tube profile
Oa
Outer tube wall thickness
2.8 mm
Outer tube large outside diameter
39 mm
Inner tube profile
OOcH
Inner tube wall thickness
3.4 mm
Inner tube large outside diameter
31 mm
Profile tube shape
Lemon
Max static torque
1150 N·m
Protection type
SD05
Original number equivalent
1800041
