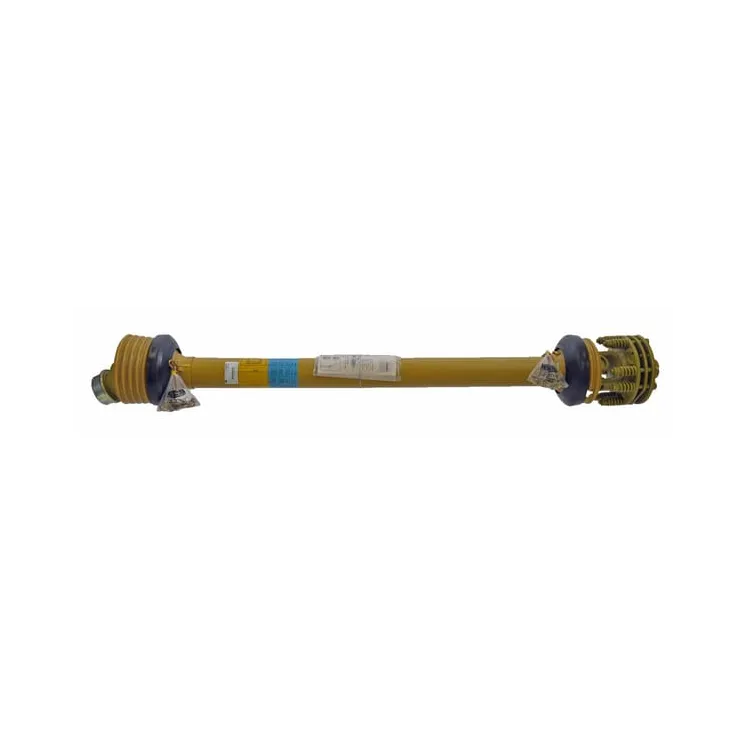

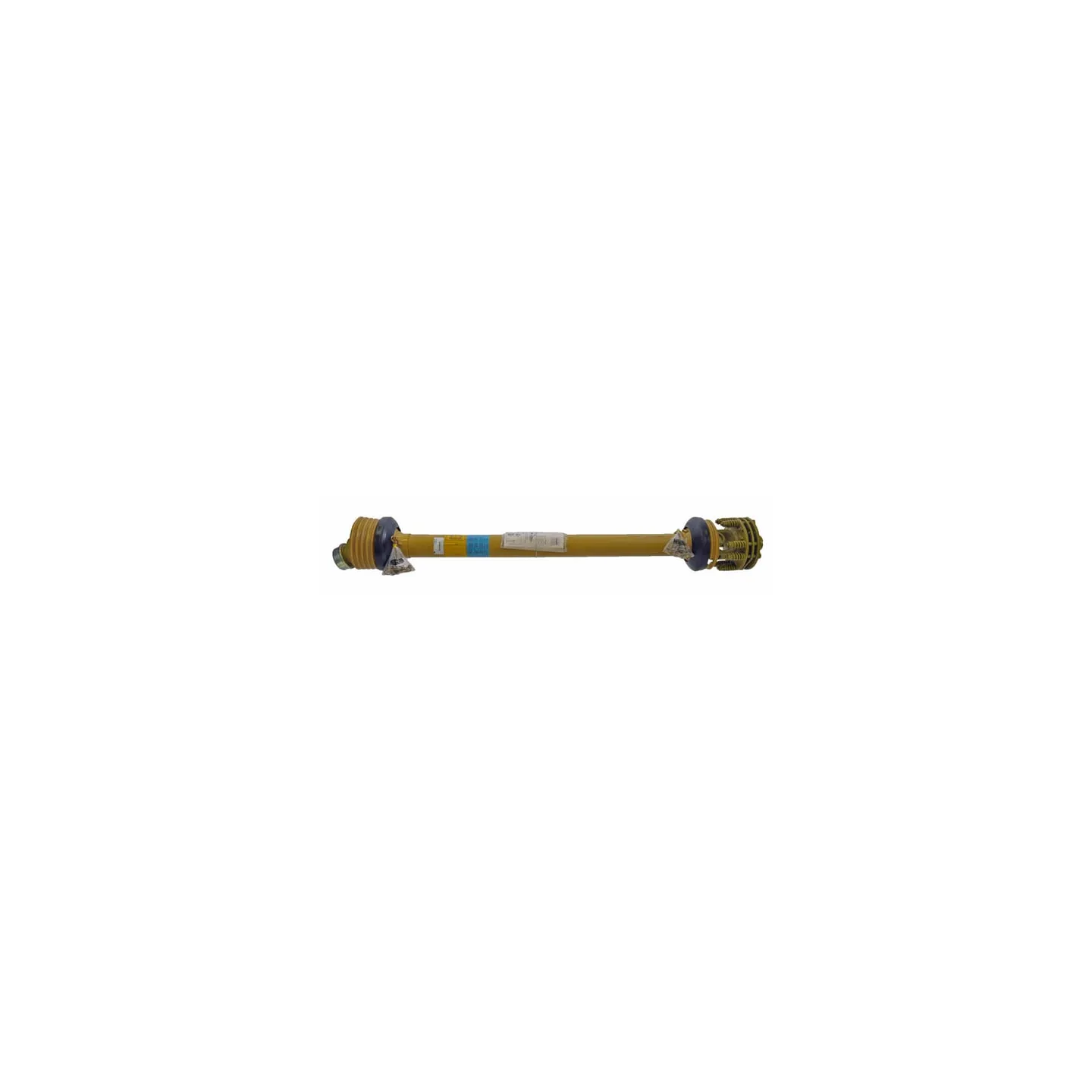

Kardānvārpsta W2500 L 1210mm, W250012105610139 Walterscheid W250012105610209

Kardānvārpsta W2500 L 1210mm, W250012105610139 W250012105610209

Name: Kardānvārpsta W2500 L 1210mm, W250012105610139 W250012105610209
Brand: Walterscheid
SKU: W250012105610139
Price: 1133.72 EUR
Availability: InStock

Apmaksas iespējas

1 133,72 €

AR PVN

4-5 Darba dienas

Kardānvārpsta W2500 L 1210mm, W250012105610139 Walterscheid W250012105610209

IR NOLIKTAVĀ

ID: 69925

Apraksts

Part number	W250012105610139
EAN
Unit	Each
Connection outside diameter by tractor side	1-3/8 Inch
Connection number of splines/grooves by tractor side	6
Locking type by tractor side	Collar lock
Attachment tractor side	Quick disconnect yoke
Connection outside diameter by machine side	1-3/4 Inch
Connection number of splines/grooves by machine side	6
Locking type by machine side	Clamp bolt (interfering)
Attachment machine side	Friction clutch
Size code	W2500
Length	1210 mm
Power 540 rpm	66 kW
Power 1000 rpm	102 kW
Cross joint bush diameter by tractor side	36 mm
Cross joint length by tractor side	89 mm
Cross joint bush diameter by machine side	36 mm
Cross joint length by machine side	89 mm
Clutch type	K90/4
Max. clutch torque	2100 N·m
Outer tube profile	S5
Outer tube wall thickness	4.5 mm
Outer tube large outside diameter	61 mm
Inner tube profile	S4
Inner tube large outside diameter	51 mm
Profile tube shape	Star
Max static torque	6000 N·m
Protection type	SD25
Original number equivalent	1694409
