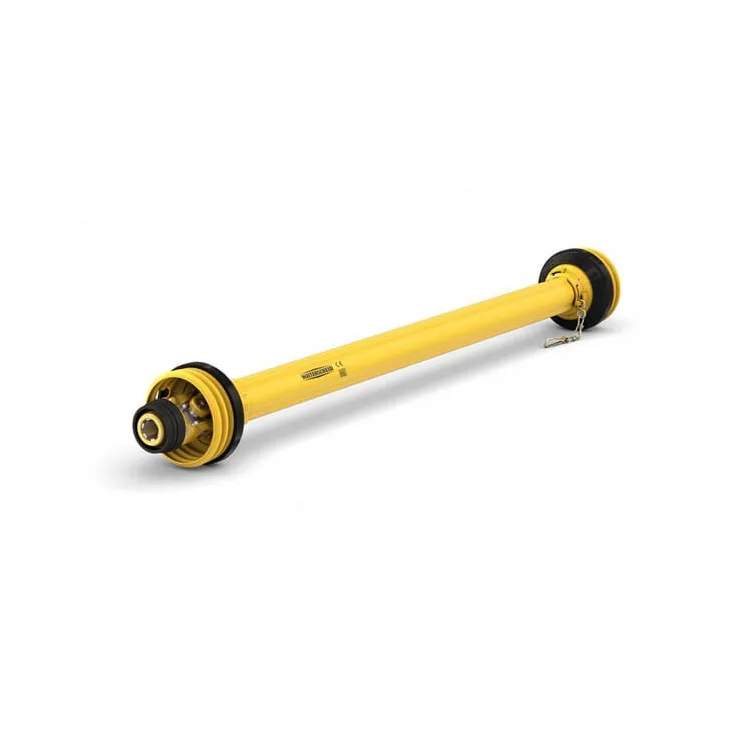

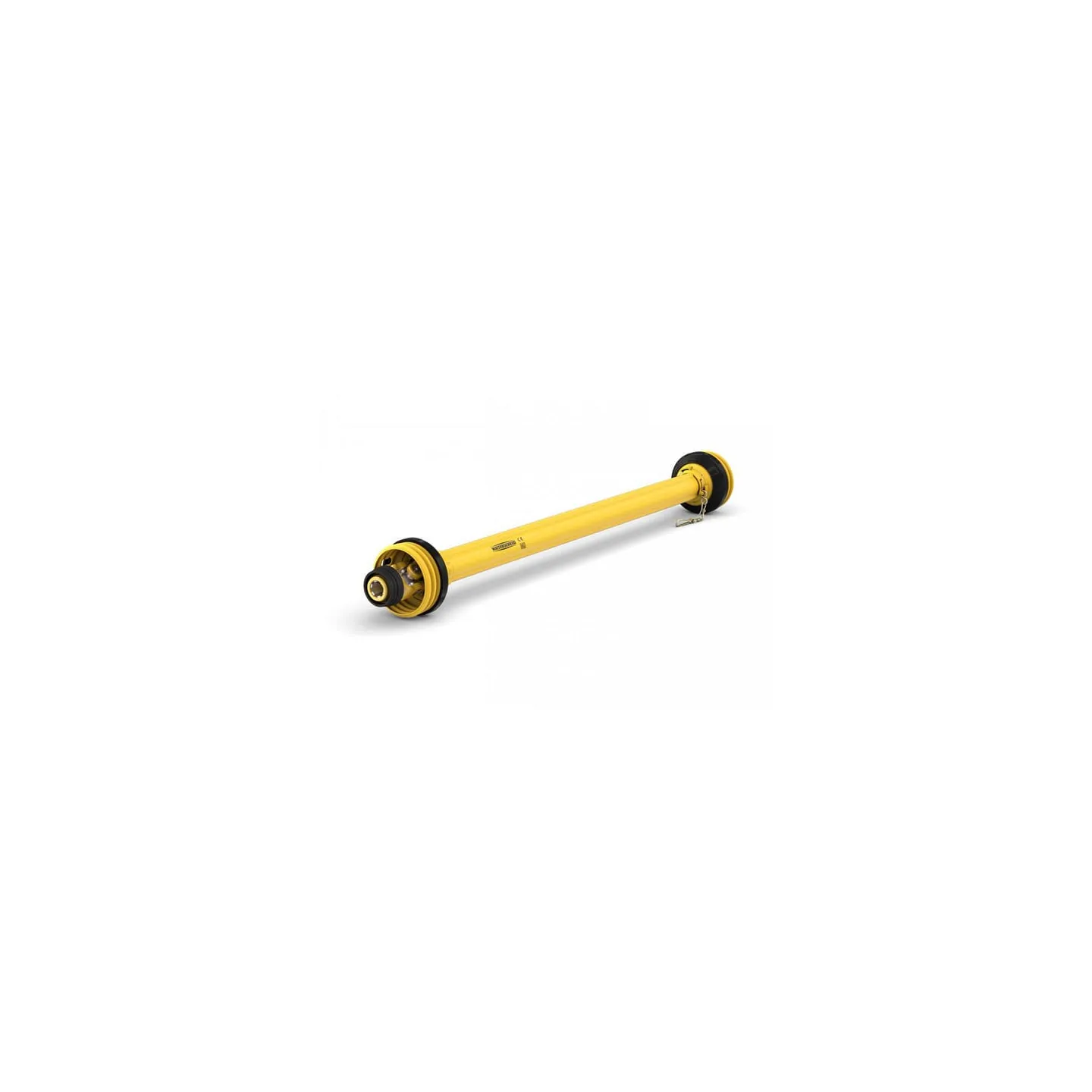

Kardānvārpsta W2400 L: 1210mm, W24001210S4LHS5

Name: Kardānvārpsta W2400 L: 1210mm, W24001210S4LHS5
Brand: Walterscheid
SKU: W24001210S4LHS5
Price: 893.9 EUR
Availability: InStock

Apmaksas iespējas

893,90 €

AR PVN

4-5 Darba dienas

Kardānvārpsta W2400 L: 1210mm, W24001210S4LHS5 Walterscheid

IR NOLIKTAVĀ

ID: 69926

Apraksts

Part number	W24001210S4LHS5
EAN	8719607108584
Unit	Each
Connection outside diameter by tractor side	1-3/8 Inch
Connection number of splines/grooves by tractor side	6
Locking type by tractor side	Collar lock
Attachment tractor side	Quick disconnect yoke
Connection outside diameter by machine side	1-3/8 Inch
Connection number of splines/grooves by machine side	6
Locking type by machine side	Collar lock
Attachment machine side	Quick disconnect yoke
Size code	W2400
Length	1210 mm
Power 540 rpm	39 kW
Power 1000 rpm	61 kW
Cross joint bush diameter by tractor side	32 mm
Cross joint length by tractor side	76 mm
Cross joint bush diameter by machine side	32 mm
Cross joint length by machine side	76 mm
Clutch type	n/a
Outer tube profile	S5
Outer tube wall thickness	4.5 mm
Outer tube large outside diameter	61 mm
Inner tube profile	S4LH
Inner tube wall thickness	6 mm
Inner tube large outside diameter	51 mm
Profile tube shape	Star
Max static torque	4000 N·m
Protection type	ST25
Original number equivalent	1800066
Additional info	*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
