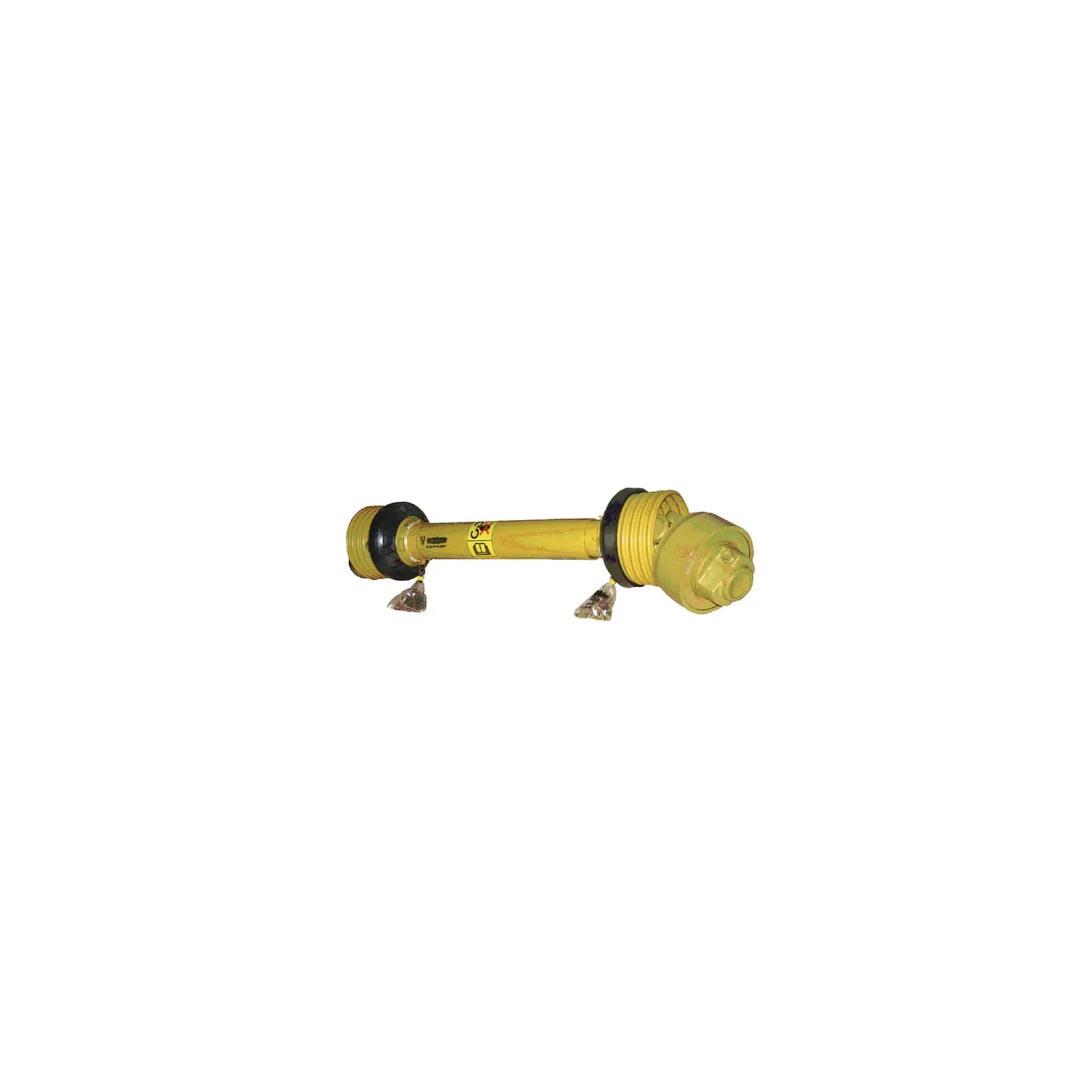

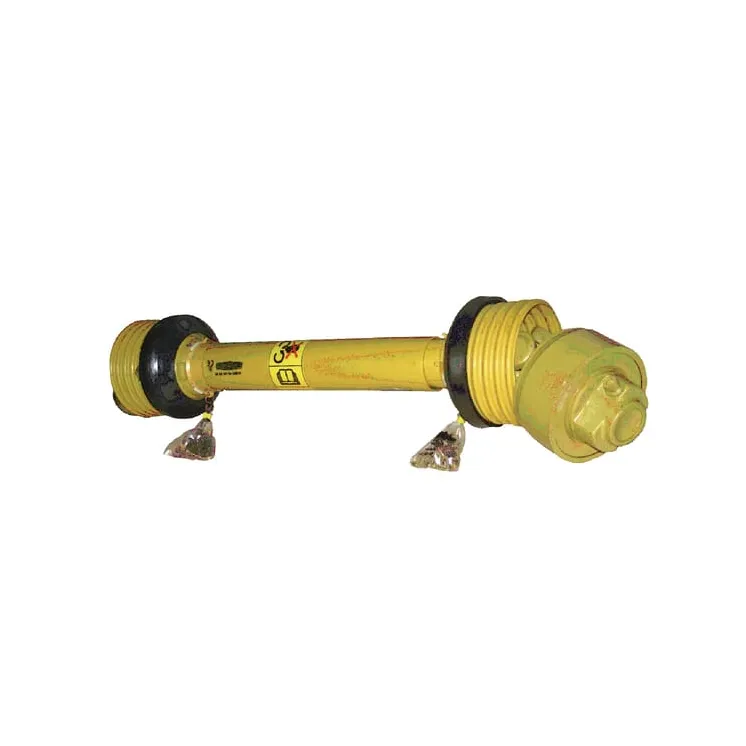

Kardānvārpsta W2500 L: 710 mm ar izciļņa tipa izgrieztu sajūgu, W25007105911743

Name: Kardānvārpsta W2500 L: 710 mm ar izciļņa tipa izgrieztu sajūgu, W25007105911743
Brand: Walterscheid
SKU: W25007105911743
Price: 1632.52 EUR
Availability: InStock

Apmaksas iespējas

1 632,52 €

AR PVN

4-5 Darba dienas

Kardānvārpsta W2500 L: 710 mm ar izciļņa tipa izgrieztu sajūgu, W25007105911743 Walterscheid

IR NOLIKTAVĀ

ID: 69934

Apraksts

Part number	W25007105911743
EAN
Unit	Each
Connection outside diameter by tractor side	1-3/8 Inch
Connection number of splines/grooves by tractor side	6
Locking type by tractor side	Collar lock
Attachment tractor side	Quick disconnect yoke
Connection outside diameter by machine side	1-3/8 Inch
Connection number of splines/grooves by machine side	6
Locking type by machine side	Clamp cone
Attachment machine side	Cam type cut out clutch
Size code	W2500
Length	710 mm
Power 540 rpm	66 kW
Power 1000 rpm	102 kW
Cross joint bush diameter by tractor side	36 mm
Cross joint length by tractor side	89 mm
Cross joint bush diameter by machine side	36 mm
Cross joint length by machine side	89 mm
Clutch type	K64/22R
Max. clutch torque	2200 N·m
Outer tube profile	S5
Outer tube wall thickness	4.5 mm
Outer tube large outside diameter	61 mm
Inner tube profile	S4
Inner tube large outside diameter	51 mm
Profile tube shape	Star
Max static torque	6000 N·m
Protection type	SD25
Original number equivalent	1691387
