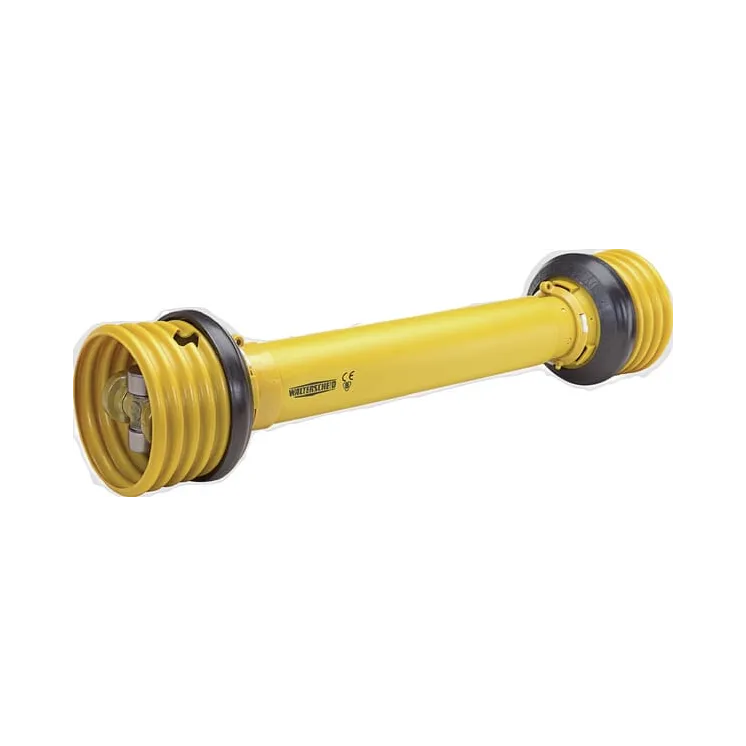

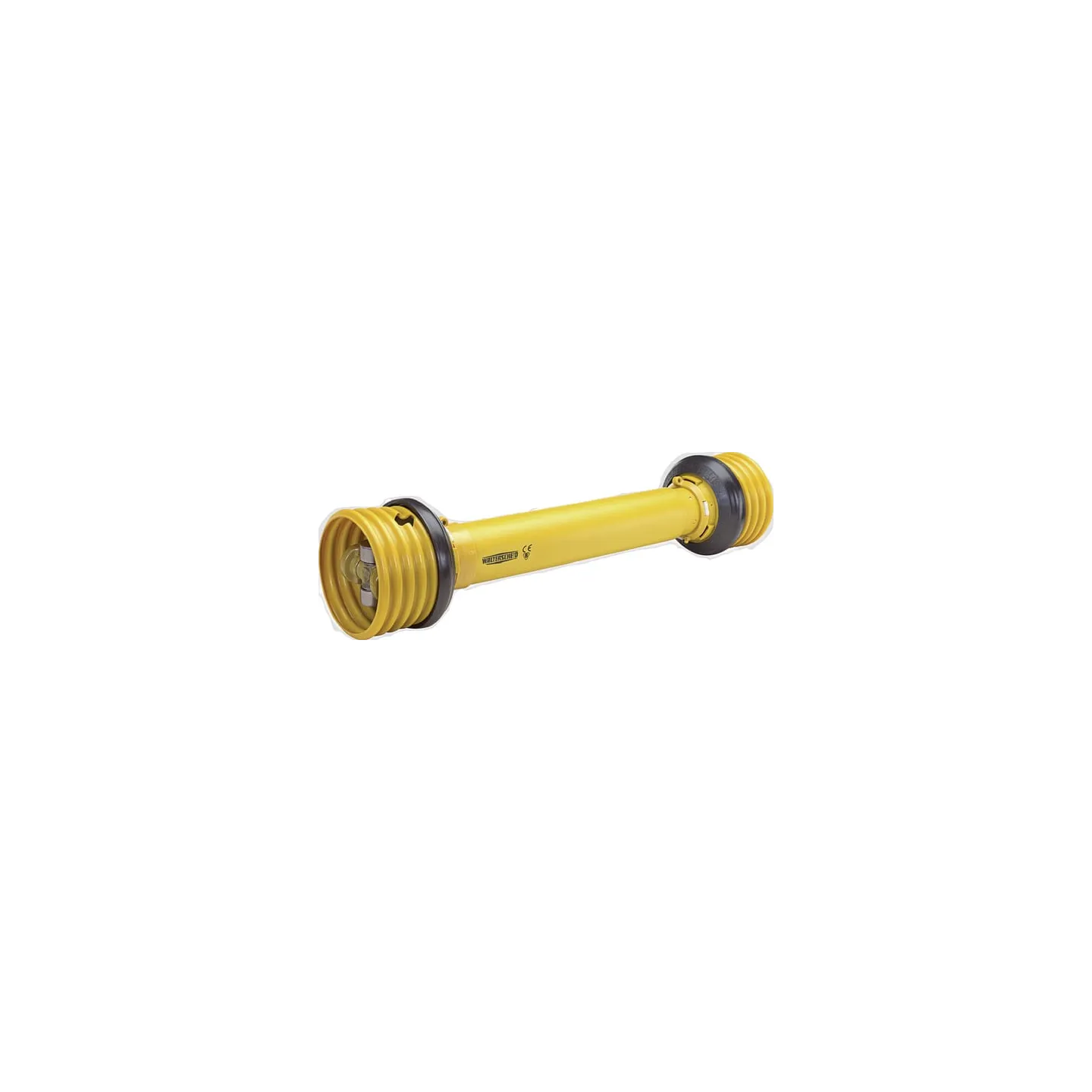

Kardānvārpsta bez jūgiem W2300 L: 860mm, W23008601B2AOG Walterscheid 1113125

Kardānvārpsta bez jūgiem W2300 L: 860mm, W23008601B2AOG 1113125

Name: Kardānvārpsta bez jūgiem W2300 L: 860mm, W23008601B2AOG 1113125
Brand: Walterscheid
SKU: W23008601B2AOG
Price: 398.39 EUR
Availability: InStock

Apmaksas iespējas

398,39 €

AR PVN

4-5 Darba dienas

Kardānvārpsta bez jūgiem W2300 L: 860mm, W23008601B2AOG Walterscheid 1113125

IR NOLIKTAVĀ

ID: 69951

Apraksts

Part number	W23008601B2AOG
EAN
Unit	Each
Application range	Mowers Harvesters Seeders
Properties	Lubrication frequency from 50 to 100 hours Fulfils EC 89/392 EEC requirements Complies with EN12965 safety standard CE marking available
Technical info	See Walterscheid instruction manual Max. dynamic capacity 540 rpm: 28 kW, 500 Nm Max. dynamic capacity 1,000 rpm: 44 kW, 415 Nm Values at working angle 5° and service life 1000 hours LZ = slid-in length in mm, from intersection to intersection
Consists of	Pto shaft with guard tube Declaration of conformity Instruction manual Delivery without yokes
Locking type by tractor side	Cross
Attachment tractor side	n/a
Locking type by machine side	Cross
Attachment machine side	n/a
Size code	W2300
Length	860 mm
Power 540 rpm	28 kW
Power 1000 rpm	44 kW
Cross joint bush diameter by tractor side	27 mm
Cross joint length by tractor side	75 mm
Cross joint bush diameter by machine side	27 mm
Cross joint length by machine side	75 mm
Outer tube profile	2a
Inner tube profile	1b
Profile tube shape	Lemon
Max static torque	2300 N·m
Protection type	SD25
Original number equivalent	1800081
