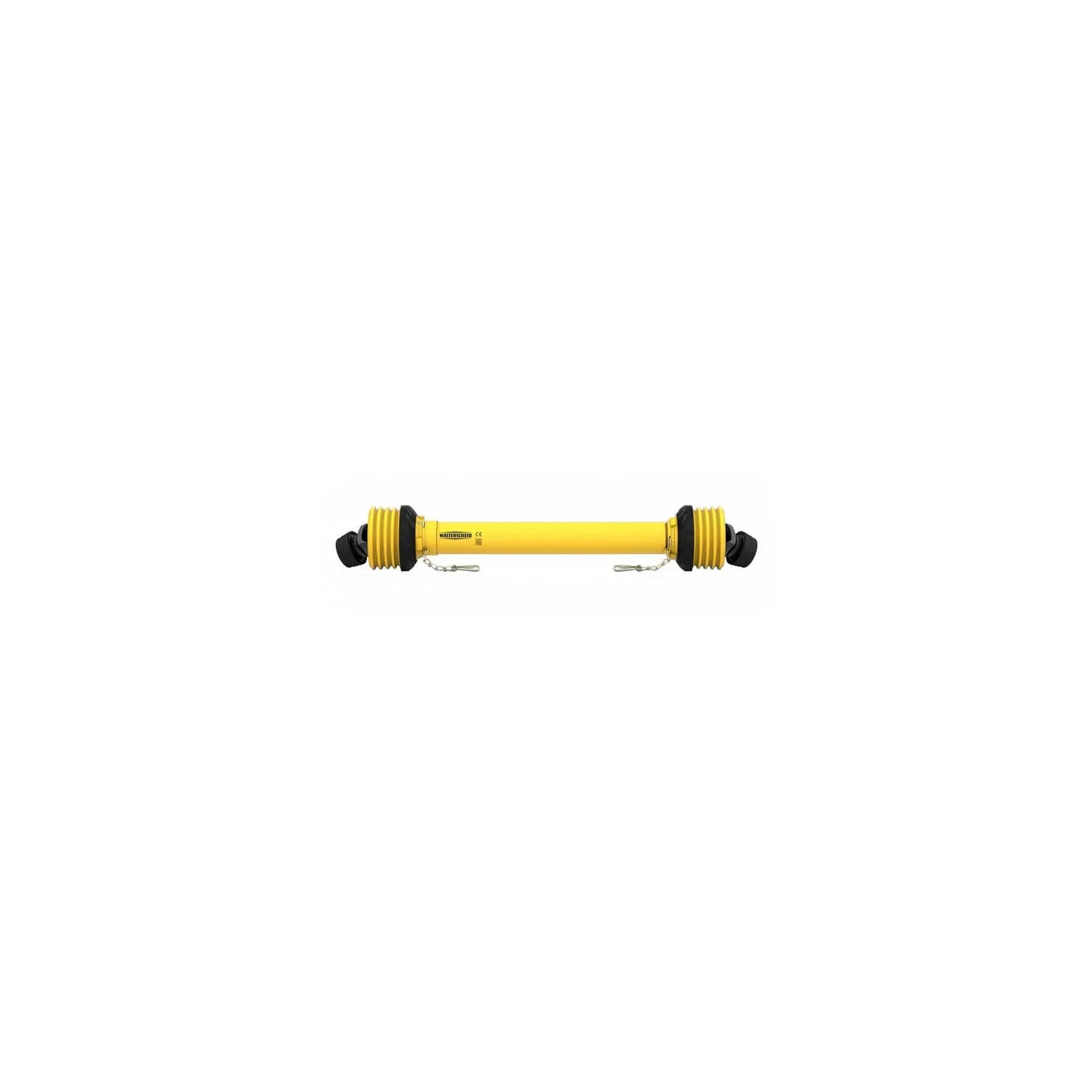

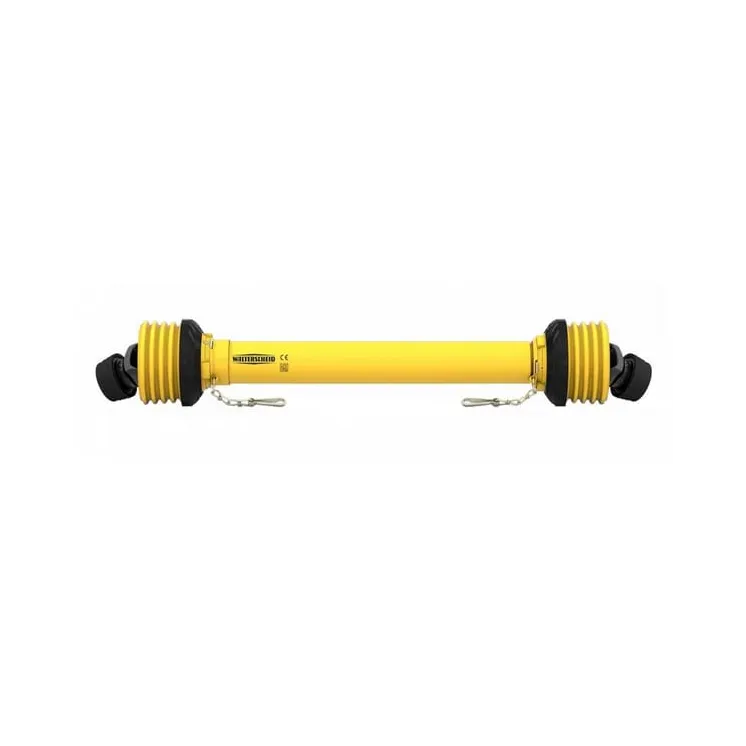

Kardānvārpsta W400E L: 1210mm, W400E1210 Walterscheid
search
  • Kardānvārpsta W400E L: 1210mm, W400E1210 Walterscheid

Kardānvārpsta W400E L: 1210mm, W400E1210

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
367,10 €
AR PVN
4-5 Darba dienas
Kardānvārpsta W400E L: 1210mm, W400E1210 Walterscheid
IR NOLIKTAVĀ

69952

  • Zīmols
    Walterscheid
  • Norāde
    W400E1210
  • Pieejamās vispirms
    5 vienības:
  • Stāvoklis
    Jauns
  • EAN
    8432970202061
Apmaksa
100% Droši maksājumi
Piegāde
Ātri piegādes risinājumi
Preču atgriešana
30 dienu preces atgriešanas iespēja

Komentāri (0)

Šobrid vēl nav klientu atsauksmju.
Part number
W400E1210
EAN8432970202061
Unit
Each
Application range
  • Mowers
  • Harvesters
  • Fertiliser mixers
Properties
  • Tractor side 1-3/8" (6) shaft collar kit
  • Machinery side 1-3/8" (6) collar lock
  • Lubrication interval: 8 hours
  • CE marking awarded
Technical info
  • Follow the Walterscheid instruction manual
  • Max. dynamic capacity 540 rpm: 39 kW, 695 Nm
  • Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm
  • Values at a working angle of 5° and service life 700 hours
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
Consists of
  • Pto shaft with guard tube
  • Declaration of conformity
  • Instruction manual
Locking type by tractor side
Collar lock
Attachment tractor side
Quick disconnect yoke
Connection outside diameter by machine side
1-3/8 Inch
Connection number of splines/grooves by machine side
6
Locking type by machine side
Collar lock
Attachment machine side
Quick disconnect yoke
Size code
W400E
Length
1210 mm
Power 540 rpm
28 kW
Power 1000 rpm
44 kW
Cross joint bush diameter by tractor side
32 mm
Cross joint length by tractor side
76 mm
Cross joint bush diameter by machine side
32 mm
Cross joint length by machine side
76 mm
Clutch type
n/a
Outer tube profile
2a
Outer tube wall thickness
4 mm
Outer tube large outside diameter
57.5 mm
Inner tube profile
1b
Inner tube wall thickness
4.5 mm
Inner tube large outside diameter
49 mm
Profile tube shape
Lemon
Max static torque
3400 N·m
Protection type
SD25
Original number equivalent
1800019
Additional info
*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
