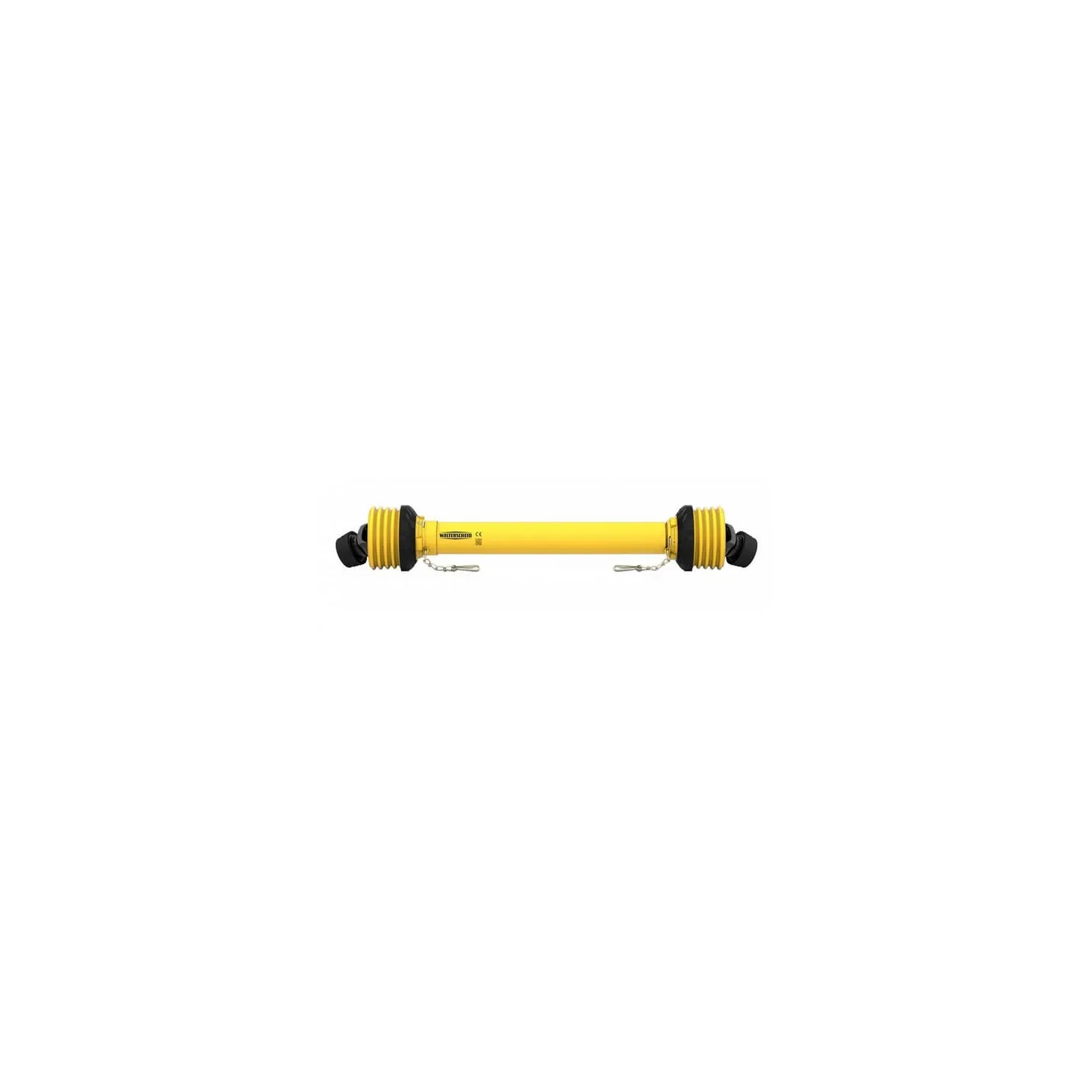

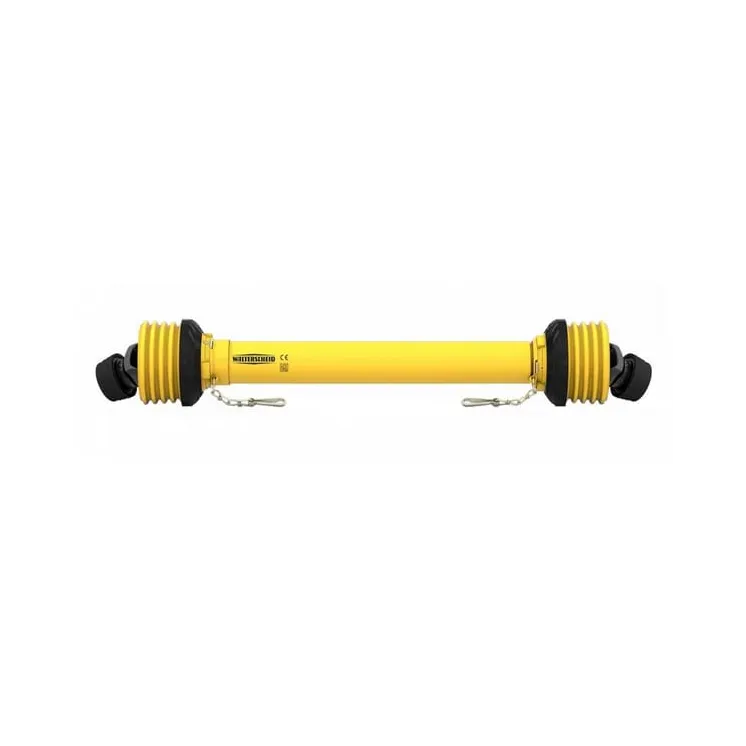

Kardānvārpsta W100E L: 710mm, W100E710 Walterscheid 1104559
search
  • Kardānvārpsta W100E L: 710mm, W100E710 Walterscheid 1104559

Kardānvārpsta W100E L: 710mm, W100E710 1104559

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
312,85 €
AR PVN
4-5 Darba dienas
Kardānvārpsta W100E L: 710mm, W100E710 Walterscheid 1104559
IR NOLIKTAVĀ

69957

  • Zīmols
    Walterscheid
  • Norāde
    W100E710
  • Pieejamās vispirms
    5 vienības:
  • Stāvoklis
    Jauns
  • Citi kodi
    1104559
  • EAN
    8435194030649
Apmaksa
100% Droši maksājumi
Piegāde
Ātri piegādes risinājumi
Preču atgriešana
30 dienu preces atgriešanas iespēja

Komentāri (0)

Šobrid vēl nav klientu atsauksmju.
Part number
W100E710
EAN8435194030649
Unit
Each
Application range
  • Small crop sprayers
  • Artificial fertiliser spreaders
  • Tedders
  • Windrowers
Properties
  • Tractor side 1-3/8" (6) shaft collar kit
  • Machinery side 1-3/8" (6) slide pin
  • Lubrication interval: 8 hours
  • CE marking awarded
Technical info
  • Follow the Walterscheid instruction manual
  • Max. dynamic capacity 540 rpm: 12 kW, 210 Nm
  • Max. dynamic capacity 1000 rpm: 18 kW, 175 Nm
  • Values at a working angle of 5° and service life 700 hours
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
Consists of
  • Pto shaft with guard tube
  • Declaration of conformity
  • Instruction manual
Locking type by tractor side
Collar lock
Attachment tractor side
Quick disconnect yoke
Connection outside diameter by machine side
1-3/8 Inch
Connection number of splines/grooves by machine side
6
Locking type by machine side
Collar lock
Attachment machine side
Quick disconnect yoke
Size code
W100E
Length
710 mm
Power 540 rpm
12 kW
Power 1000 rpm
18 kW
Cross joint bush diameter by tractor side
22 mm
Cross joint length by tractor side
55 mm
Cross joint bush diameter by machine side
22 mm
Cross joint length by machine side
55 mm
Clutch type
n/a
Outer tube profile
Oa
Outer tube wall thickness
2.8 mm
Outer tube large outside diameter
39 mm
Inner tube profile
OOc
Inner tube wall thickness
3.4 mm
Inner tube large outside diameter
31 mm
Profile tube shape
Lemon
Max static torque
1000 N·m
Protection type
SD05
Original number equivalent
1800001
Additional info
*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
