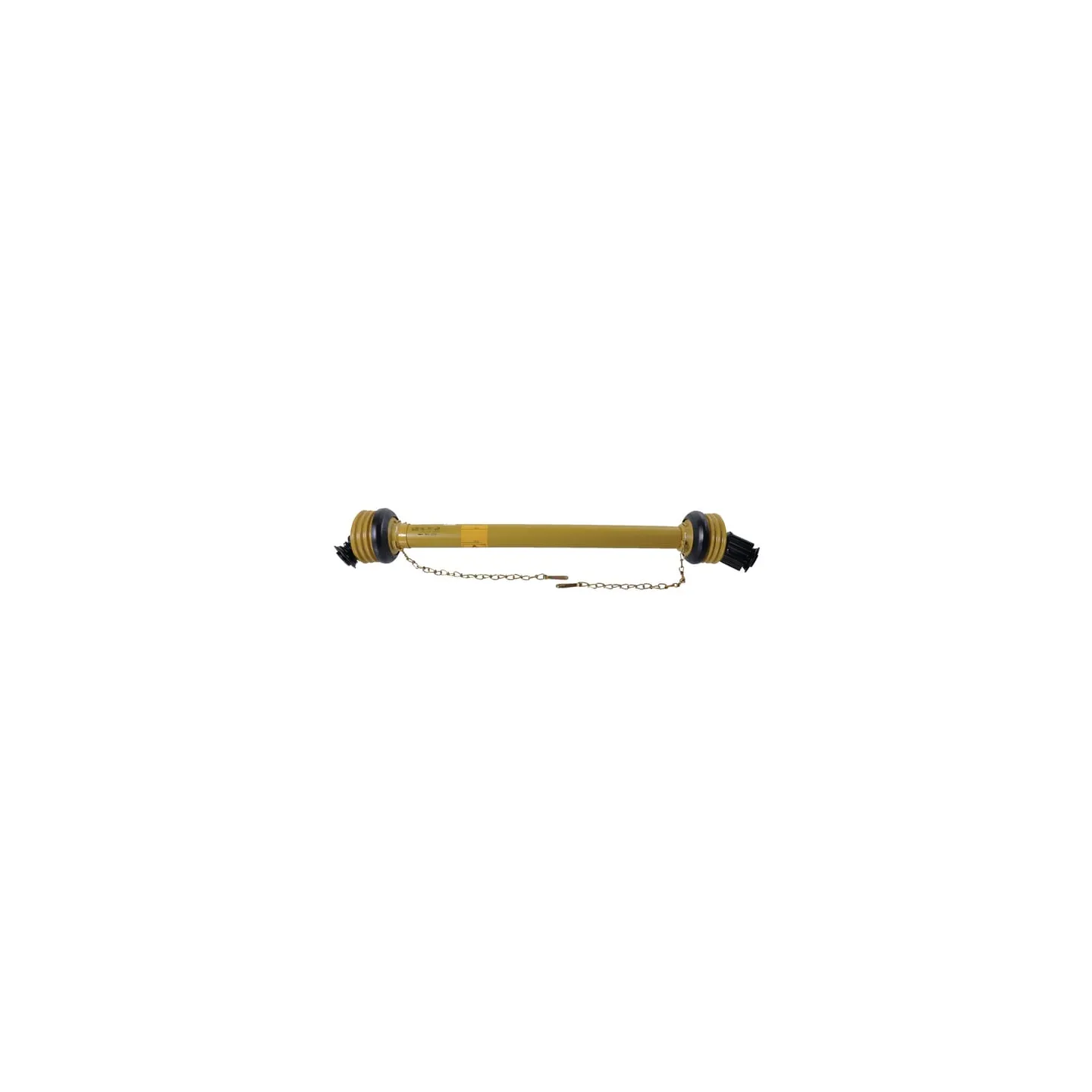

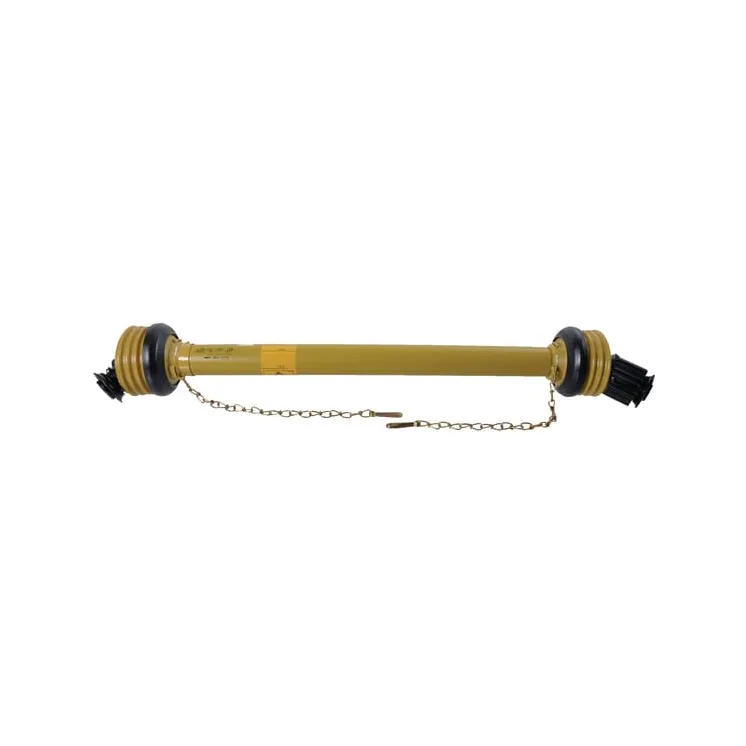

Kardānvārpsta W300E L: 1010mm ar radiālo tapas sajūgu, W300E1010K33B Walterscheid
search
  • Kardānvārpsta W300E L: 1010mm ar radiālo tapas sajūgu, W300E1010K33B Walterscheid

Kardānvārpsta W300E L: 1010mm ar radiālo tapas sajūgu, W300E1010K33B

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
483,48 €
AR PVN
4-5 Darba dienas
Kardānvārpsta W300E L: 1010mm ar radiālo tapas sajūgu, W300E1010K33B Walterscheid
IR NOLIKTAVĀ

69959

  • Zīmols
    Walterscheid
  • Norāde
    W300E1010K33B
  • Pieejamās vispirms
    2 vienības:
  • Stāvoklis
    Jauns
  • EAN
    8435194030700
Apmaksa
100% Droši maksājumi
Piegāde
Ātri piegādes risinājumi
Preču atgriešana
30 dienu preces atgriešanas iespēja

Komentāri (0)

Šobrid vēl nav klientu atsauksmju.
Part number
W300E1010K33B
EAN8435194030700
Unit
Each
Application range
  • Mowers
  • Fertiliser mixers
  • Seeders
Properties
  • Tractor side 1-3/8" (6) shaft collar kit
  • Machinery side 1-3/8" (6) quick release coupling
  • Lubrication interval: 8 hours
  • CE marking awarded
Technical info
  • Follow the Walterscheid instruction manual
  • Max. dynamic capacity 540 rpm: 28 kW, 500 Nm
  • Max. dynamic capacity 1000 rpm: 44 kW, 415 Nm
  • Values at a working angle of 5° and service life 700 hours
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
Consists of
  • Pto shaft with joint and guard tube
  • Declaration of conformity
  • Instruction manual
Locking type by tractor side
Collar lock
Attachment tractor side
Quick disconnect yoke
Connection outside diameter by machine side
1-3/8 Inch
Connection number of splines/grooves by machine side
6
Locking type by machine side
Collar lock
Attachment machine side
Radial pin clutch
Size code
W300E
Length
1010 mm
Power 540 rpm
20 kW
Power 1000 rpm
31 kW
Cross joint bush diameter by tractor side
27 mm
Cross joint length by tractor side
75 mm
Cross joint bush diameter by machine side
27 mm
Cross joint length by machine side
75 mm
Clutch type
K33B
Max. clutch torque
900 N·m
Outer tube profile
1
Outer tube wall thickness
3 mm
Outer tube large outside diameter
48 mm
Inner tube profile
Ov
Inner tube wall thickness
4 mm
Inner tube large outside diameter
40 mm
Profile tube shape
Lemon
Max static torque
2200 N·m
Protection type
SD15
Original number equivalent
1800026
Additional info
*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
