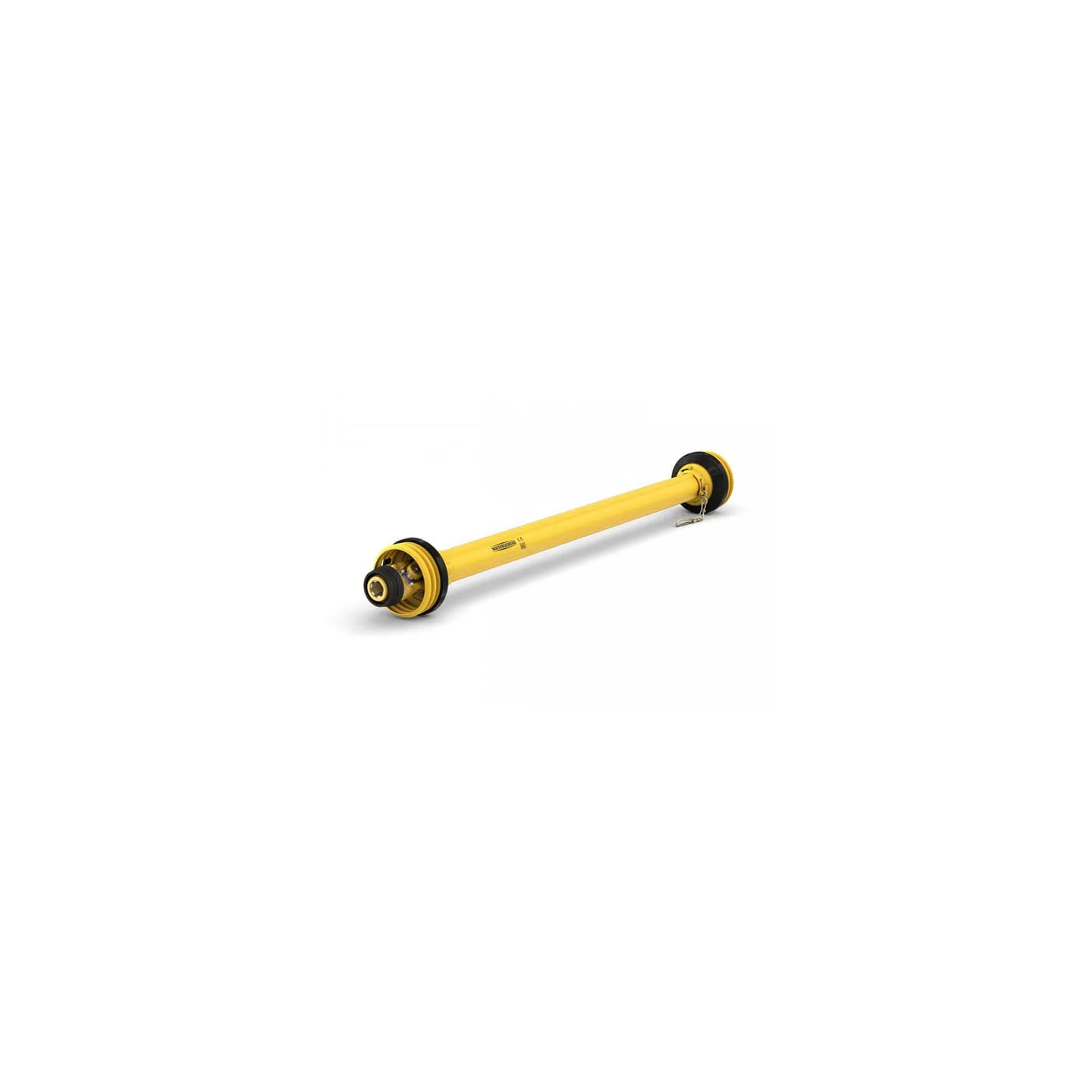

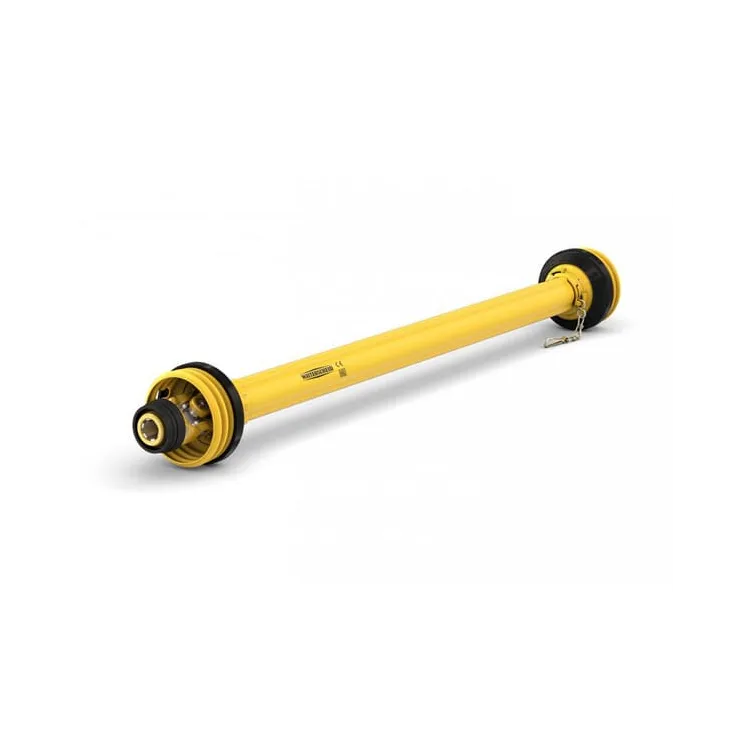

Kardānvārpsta W2200 L: 1210mm, W22001210 Walterscheid VTE1114
search
  • Kardānvārpsta W2200 L: 1210mm, W22001210 Walterscheid VTE1114

Kardānvārpsta W2200 L: 1210mm, W22001210 VTE1114

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
488,84 €
AR PVN
4-5 Darba dienas
Kardānvārpsta W2200 L: 1210mm, W22001210 Walterscheid VTE1114
IR NOLIKTAVĀ

69960

  • Zīmols
    Walterscheid
  • Norāde
    W22001210
  • Pieejamās vispirms
    5 vienības:
  • Stāvoklis
    Jauns
  • Citi kodi
    VTE1114
  • EAN
    8435194029667
Apmaksa
100% Droši maksājumi
Piegāde
Ātri piegādes risinājumi
Preču atgriešana
30 dienu preces atgriešanas iespēja

Komentāri (0)

Šobrid vēl nav klientu atsauksmju.
Part number
W22001210
EAN8435194029667
Unit
Each
Long description
PTO drive shafts complete standard series W 2200
Application range
  • Small crop sprayers
  • Tedders
  • Windrowers
Properties
  • Tension side 1-3/8" (6) shaft collar kit
  • Machine side 1-3/8" (6) slide pin
  • Lubrication frequency from 50 to 100 hours
  • Fulfilling the requirements laid out in EC 89/392 EEC
  • Fulfilling the safety standard EN12965
  • CE marking available
Technical info
  • See Walterscheid instruction manual
  • Max. dynamic capacity 540 rpm: 20 kW, 335 Nm
  • Max. dynamic capacity 1000 rpm: 31 kW, 295 Nm
  • Values at working angle 5° and service life 1000 hours
  • LZ = slid in length in mm, from intersection to intersection
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
Consists of
  • PTO shaft with shielding
  • Declaration of conformity
  • Instruction manual
Locking type by tractor side
Collar lock
Attachment tractor side
Quick disconnect yoke
Connection outside diameter by machine side
1-3/8 Inch
Connection number of splines/grooves by machine side
6
Locking type by machine side
Collar lock
Attachment machine side
Quick disconnect yoke
Size code
W2200
Length
1210 mm
Power 540 rpm
20 kW
Power 1000 rpm
31 kW
Cross joint bush diameter by tractor side
24 mm
Cross joint length by tractor side
61 mm
Cross joint bush diameter by machine side
24 mm
Cross joint length by machine side
61 mm
Clutch type
n/a
Outer tube profile
1
Outer tube wall thickness
3 mm
Outer tube large outside diameter
48 mm
Inner tube profile
Ov
Inner tube wall thickness
4 mm
Inner tube large outside diameter
40 mm
Profile tube shape
Lemon
Max static torque
1850 N·m
Protection type
ST15
Original number equivalent
1800046
