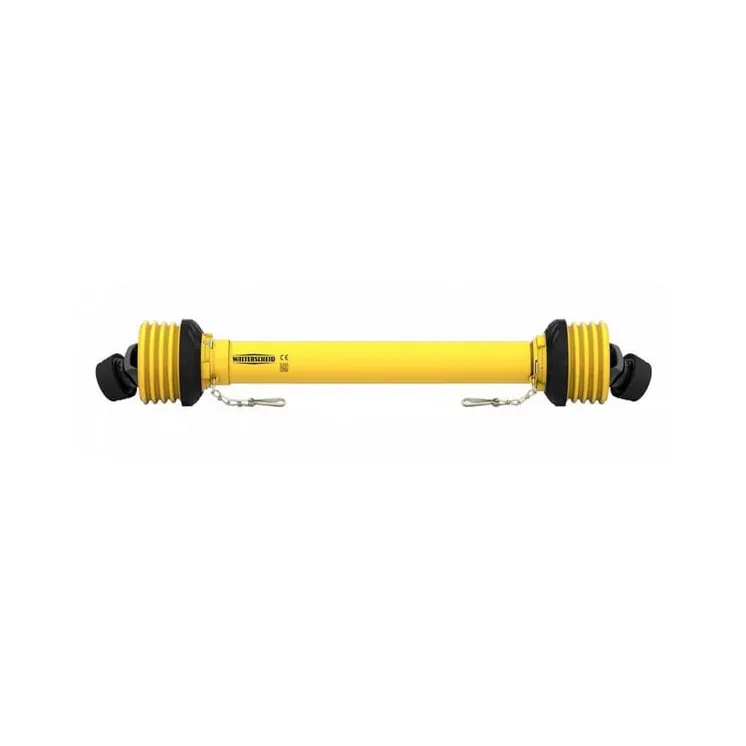

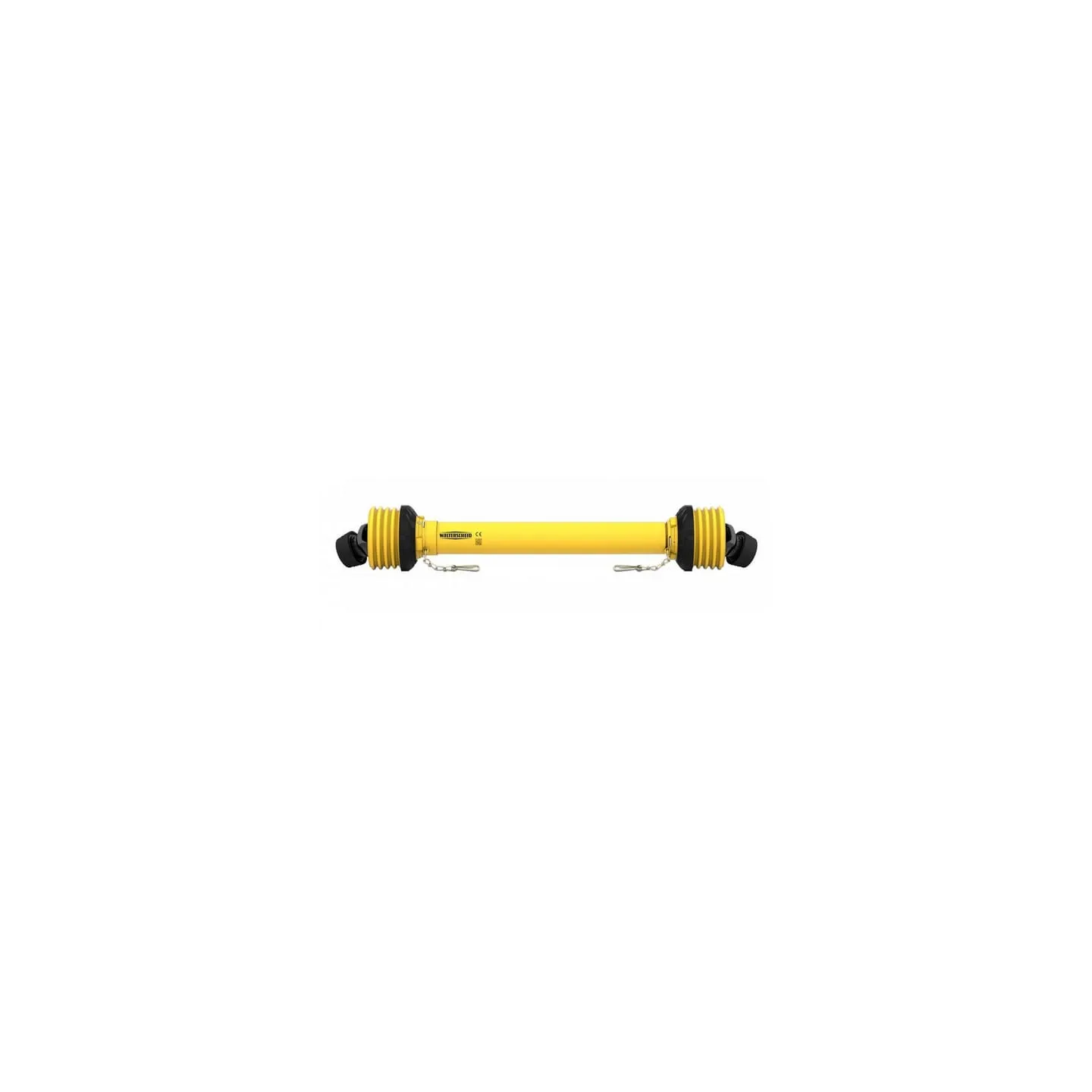

Kardānvārpsta W200E L: 710mm, W200E710

Name: Kardānvārpsta W200E L: 710mm, W200E710
Brand: Walterscheid
SKU: W200E710
Price: 281.98 EUR
Availability: InStock

Apmaksas iespējas

281,98 €

AR PVN

4-5 Darba dienas

Kardānvārpsta W200E L: 710mm, W200E710 Walterscheid

IR NOLIKTAVĀ

ID: 69961

Apraksts

Produkta detaļas

Datu lapa

Apmaksa
100% Droši maksājumi

Piegāde
Ātri piegādes risinājumi

Preču atgriešana
30 dienu preces atgriešanas iespēja

Komentāri (0)

Šobrid vēl nav klientu atsauksmju.

Part number	W200E710
EAN	8435194030779
Unit	Each
Application range	Small crop sprayers Tedders Windrowers
Properties	Tractor side 1-3/8" (6) shaft collar kit Machinery side 1-3/8" (6) slide pin Lubrication interval: 8 hours CE marking awarded
Technical info	Follow the Walterscheid instruction manual Max. dynamic capacity 540 rpm: 20 kW, 335 Nm Max. dynamic capacity 1000 rpm: 31 kW, 295 Nm Values at a working angle of 5° and service life 700 hours
Connection outside diameter by tractor side	1-3/8 Inch
Connection number of splines/grooves by tractor side	6
Consists of	Pto shaft with guard tube Declaration of conformity Instruction manual
Locking type by tractor side	Collar lock
Attachment tractor side	Quick disconnect yoke
Connection outside diameter by machine side	1-3/8 Inch
Connection number of splines/grooves by machine side	6
Locking type by machine side	Collar lock
Attachment machine side	Quick disconnect yoke
Size code	W200E
Length	710 mm
Power 540 rpm	14 kW
Power 1000 rpm	22 kW
Cross joint bush diameter by tractor side	24 mm
Cross joint length by tractor side	61 mm
Cross joint bush diameter by machine side	24 mm
Cross joint length by machine side	61 mm
Clutch type	n/a
Outer tube profile	1
Outer tube wall thickness	3 mm
Outer tube large outside diameter	48 mm
Inner tube profile	Ov
Inner tube wall thickness	4 mm
Inner tube large outside diameter	40 mm
Profile tube shape	Lemon
Max static torque	1500 N·m
Protection type	SD15
Original number equivalent	1800006
