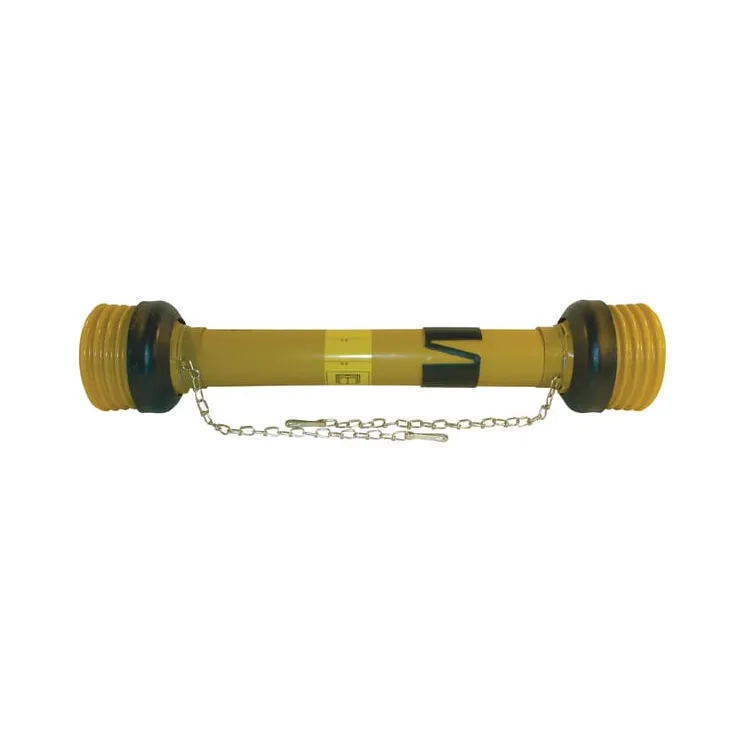

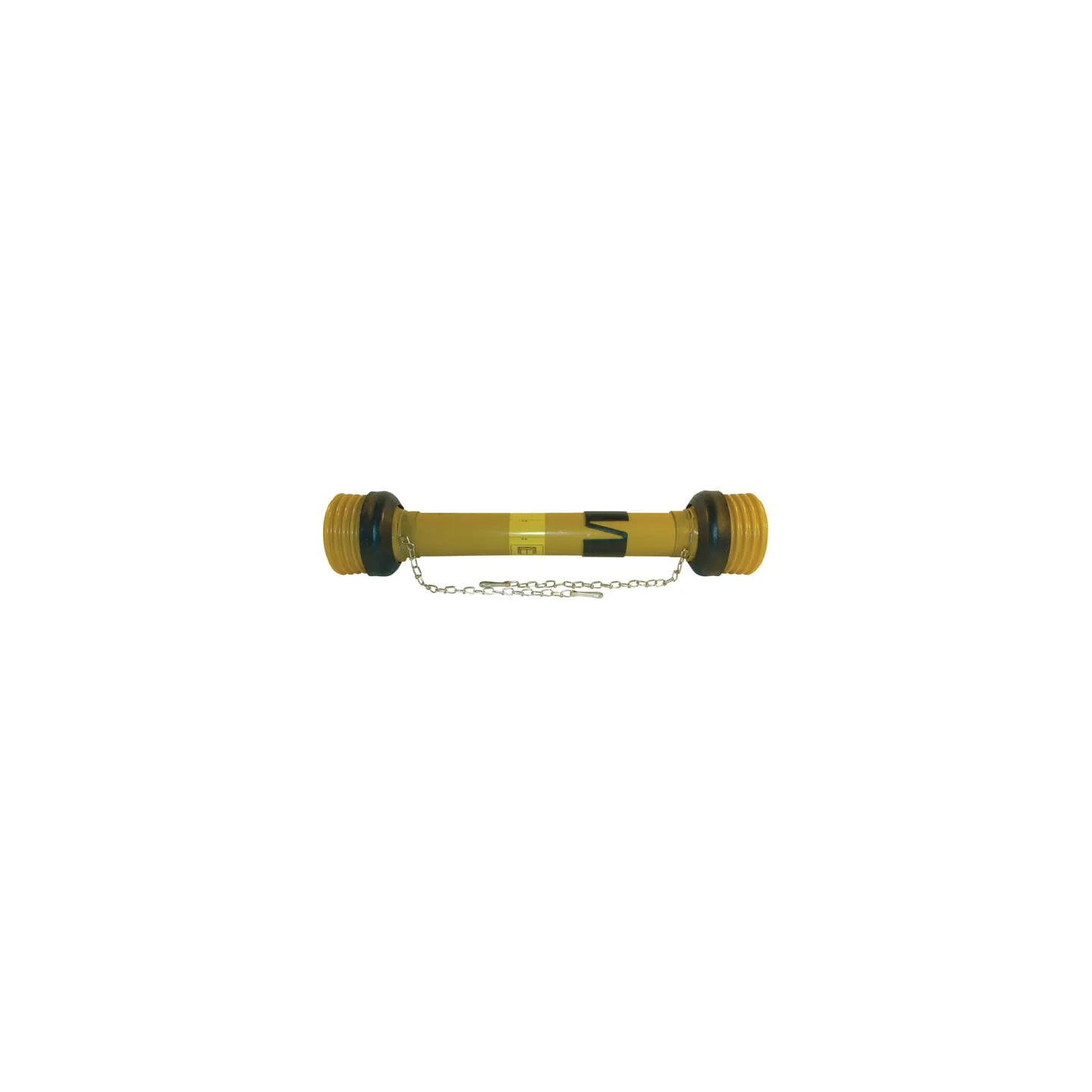

Kardānvārpsta bez jūgiem W2300 L: 860mm, W2300860OG Walterscheid 1113123

Kardānvārpsta bez jūgiem W2300 L: 860mm, W2300860OG 1113123

Name: Kardānvārpsta bez jūgiem W2300 L: 860mm, W2300860OG 1113123
Brand: Walterscheid
SKU: W2300860OG
Price: 378.14 EUR
Availability: InStock

Apmaksas iespējas

378,14 €

AR PVN

4-5 Darba dienas

Kardānvārpsta bez jūgiem W2300 L: 860mm, W2300860OG Walterscheid 1113123

IR NOLIKTAVĀ

ID: 69969

Apraksts

Part number	W2300860OG
EAN
Unit	Each
Application range	Mowers Harvesters Seeders
Properties	Lubrication frequency from 50 to 100 hours Fulfils EC 89/392 EEC requirements Complies with EN12965 safety standard CE marking available
Technical info	See Walterscheid instruction manual Max. dynamic capacity 540 rpm: 28 kW, 500 Nm Max. dynamic capacity 1,000 rpm: 44 kW, 415 Nm Values at working angle 5° and service life 1000 hours LZ = slid-in length in mm, from intersection to intersection
Consists of	Pto shaft with guard tube Declaration of conformity Instruction manual Delivery without yokes
Size code	W2300
Length	860 mm
Outer tube profile	2a
Inner tube profile	1b
Max static torque	2350 N·m
Protection type	SD25
Original number equivalent	1800079
