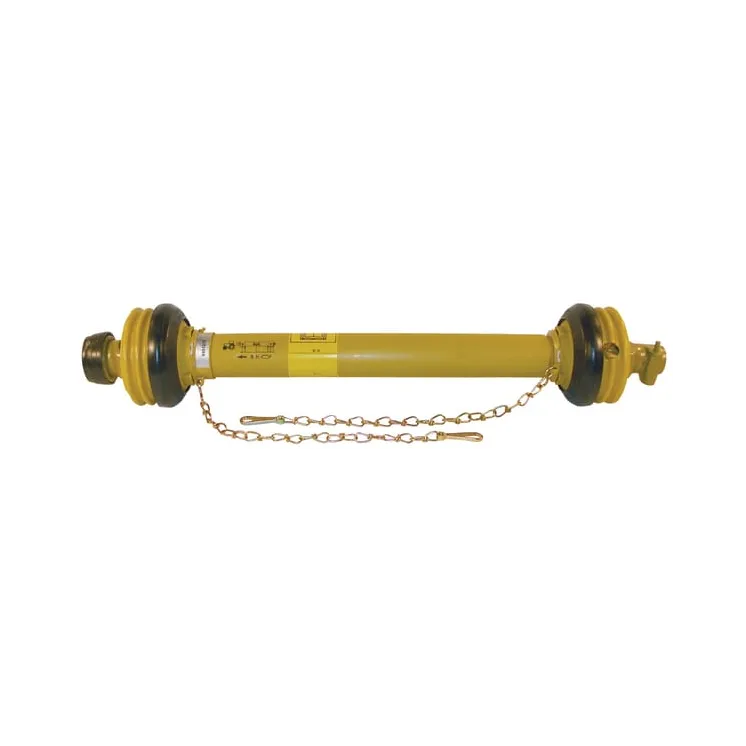

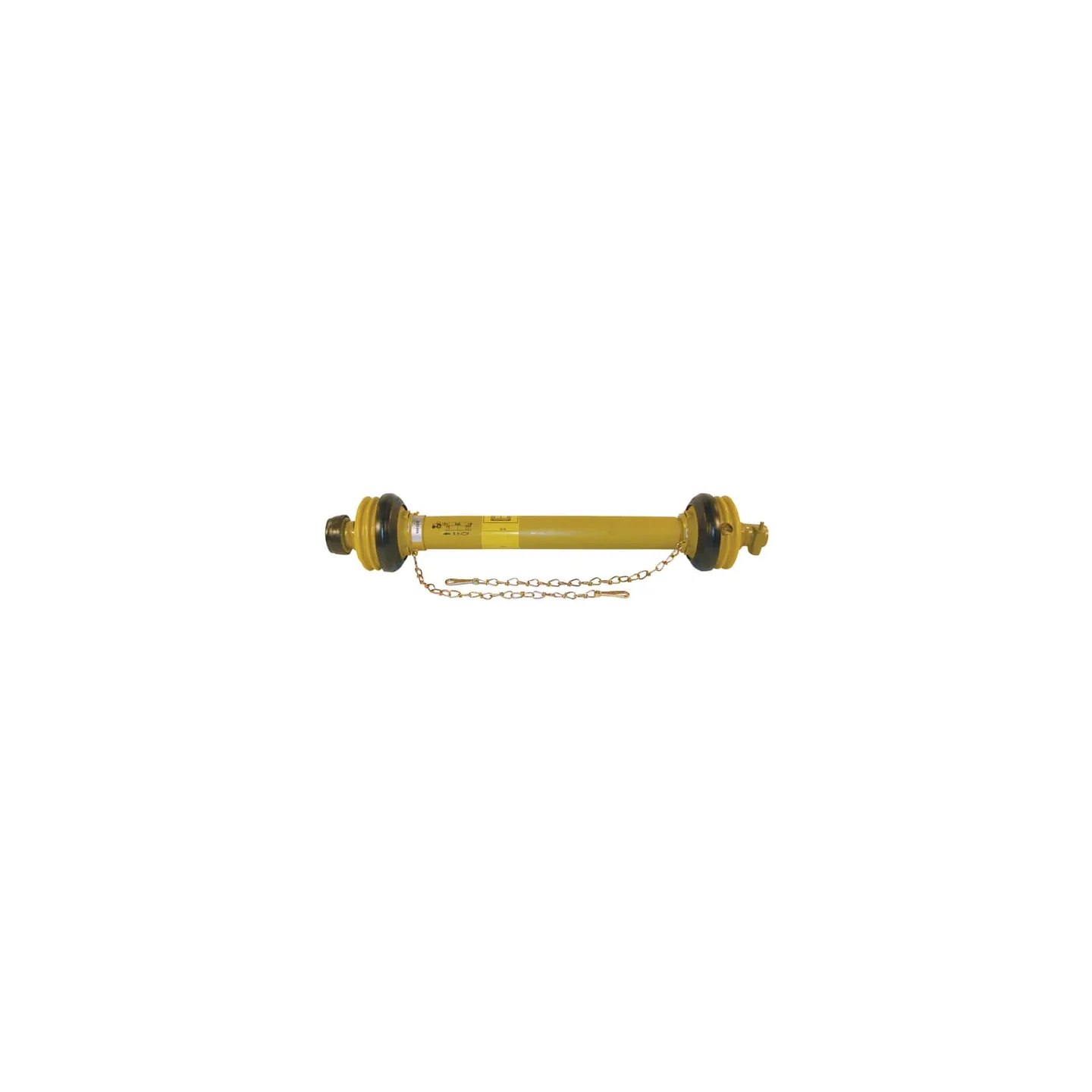

Kardānvārpsta bez jūgiem W2400 L: 860mm, W2400860S4S5

Name: Kardānvārpsta bez jūgiem W2400 L: 860mm, W2400860S4S5
Brand: Walterscheid
SKU: W2400860S4S5
Price: 480.47 EUR
Availability: InStock

Apmaksas iespējas

480,47 €

AR PVN

4-5 Darba dienas

Kardānvārpsta bez jūgiem W2400 L: 860mm, W2400860S4S5 Walterscheid

IR NOLIKTAVĀ

ID: 69970

Apraksts

Part number	W2400860S4S5
EAN	8435194015875
Unit	Each
Application range	Mowers Harvesters Soil cultivating machinery
Properties	Lubrication frequency from 50 to 100 hours Fulfils EC 89/392 EEC requirements Complies with EN12965 safety standard CE marking available
Technical info	See Walterscheid instruction manual Max. dynamic capacity 540 rpm: 39 kW, 695 Nm Max. dynamic capacity 1,000 rpm: 61 kW, 580 Nm Values at working angle 5° and service life 1000 hours LZ = slid-in length in mm, from intersection to intersection
Consists of	Pto shaft with guard tube Declaration of conformity Instruction manual Delivery without yokes
Locking type by tractor side	Cross
Locking type by machine side	Cross
Size code	W2400
Length	860 mm
Cross joint bush diameter by tractor side	32 mm
Cross joint length by tractor side	76 mm
Cross joint bush diameter by machine side	32 mm
Cross joint length by machine side	76 mm
Outer tube profile	S5
Inner tube profile	S4LH
Max static torque	6000 N·m
Protection type	SD25
Original number equivalent	1800085
Additional info	*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
