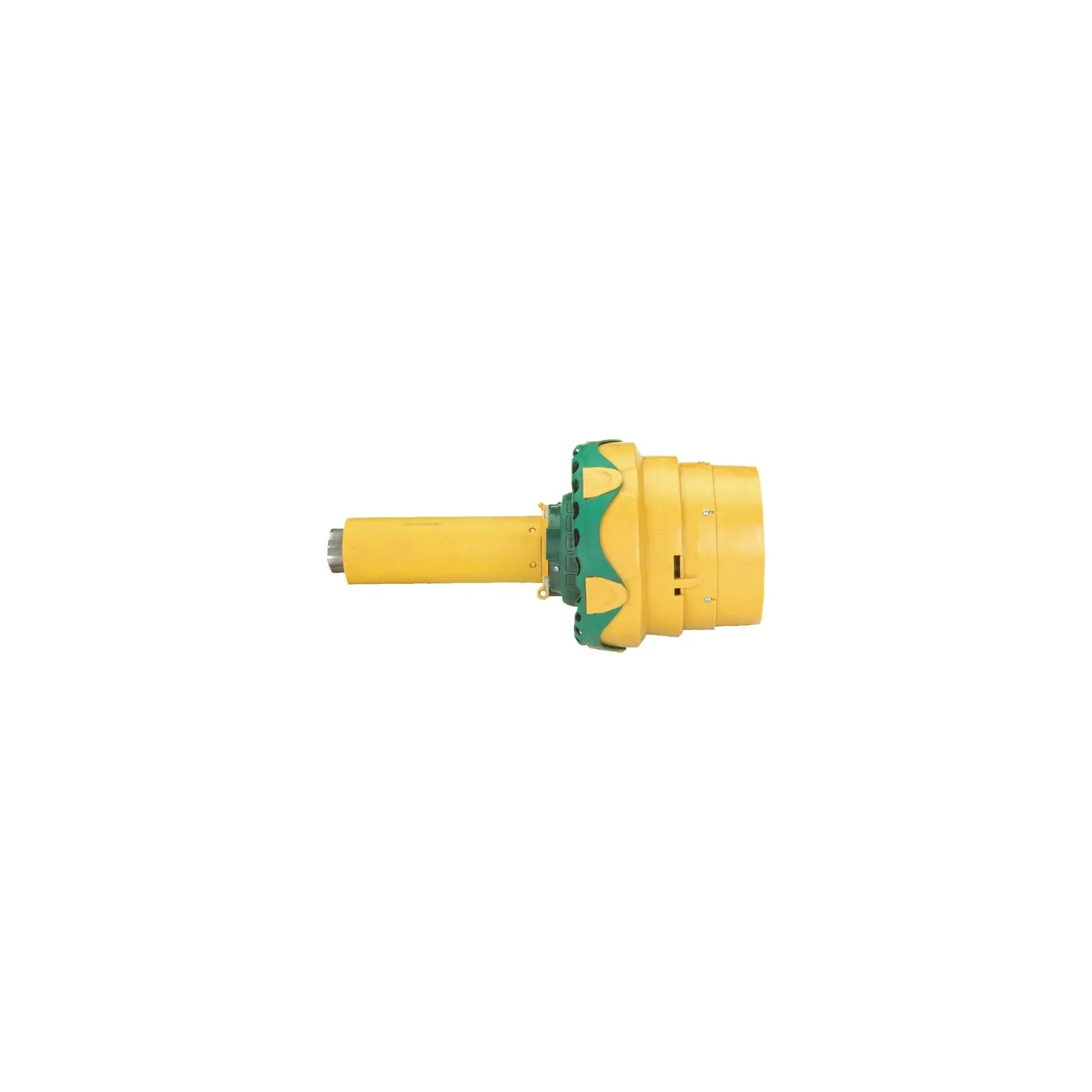

Platleņķa kardānvārpsta bez jūga, ārējais WW 2580 L: 1014mm, WWZ25801210AOG

Name: Platleņķa kardānvārpsta bez jūga, ārējais WW 2580 L: 1014mm, WWZ25801210AOG
Brand: Walterscheid
SKU: WWZ25801210AOG
Price: 844.52 EUR
Availability: BackOrder

Apmaksas iespējas

844,52 €

AR PVN

Pēc pieprasījuma

Platleņķa kardānvārpsta bez jūga, ārējais WW 2580 L: 1014mm, WWZ25801210AOG Walterscheid

Uz pasūtījumu

ID: 69972

Apraksts

Part number	WWZ25801210AOG
EAN
Unit	Each
Application range	Broad spreader Slurry wagon Big baler Silage wagon
Properties	Lubrication interval: 8 hours Fulfilling the requirements laid out in EC 89/392 EEC Compliant with EN12965 safety standard CE marking available
Technical info	Working angle with continuous use maximum 25º Working angle may only briefly be 80º Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm Values at working angle 10° and service life 1000 hours
Consists of	Semi clutch axle with shielding Declaration of conformity Instruction manual Supplied without yoke and joint cross
Locking type by machine side	Wide angle without UJ
Size code	WW 2580
Length	1014 mm
Cross joint bush diameter by tractor side - longer part	32 mm
Cross joint bush diameter by tractor side	36 mm
Cross joint length by tractor side - longer part	106 mm
Cross joint length by tractor side	89 mm
Cross joint bush diameter by machine side - longer part	32 mm
Cross joint bush diameter by machine side	36 mm
Cross joint length by machine side - longer part	106 mm
Cross joint length by machine side	89 mm
Outer tube profile	S5
Protection type	SD25
Original number equivalent	1113205
Additional info	*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
